Shift Lock Control System
>>
Wiring Schematics
>>
Shift Lock Control Wiring Schematics
Shift Lock Control Wiring Schematics
Download the full database via torrent (~1.1 TB)

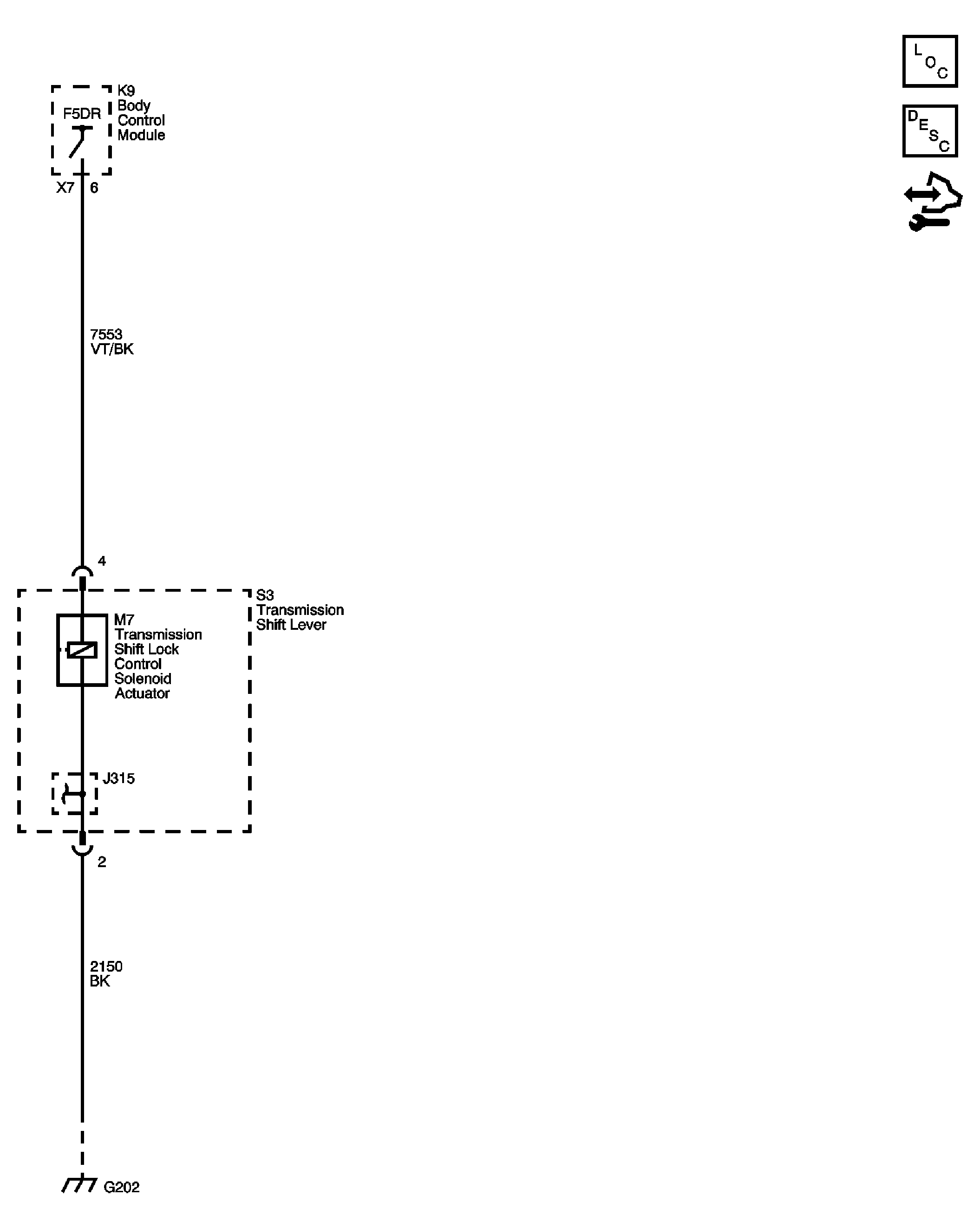

Fig 1: Shift Lock Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
