Impala LS, Gas
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Lock Control System
>>
Wiring Schematics
>>
Shift Lock Control Wiring Schematics
>>
Shift Lock Control System
Shift Lock Control System
Download the full database via torrent (~1.1 TB)

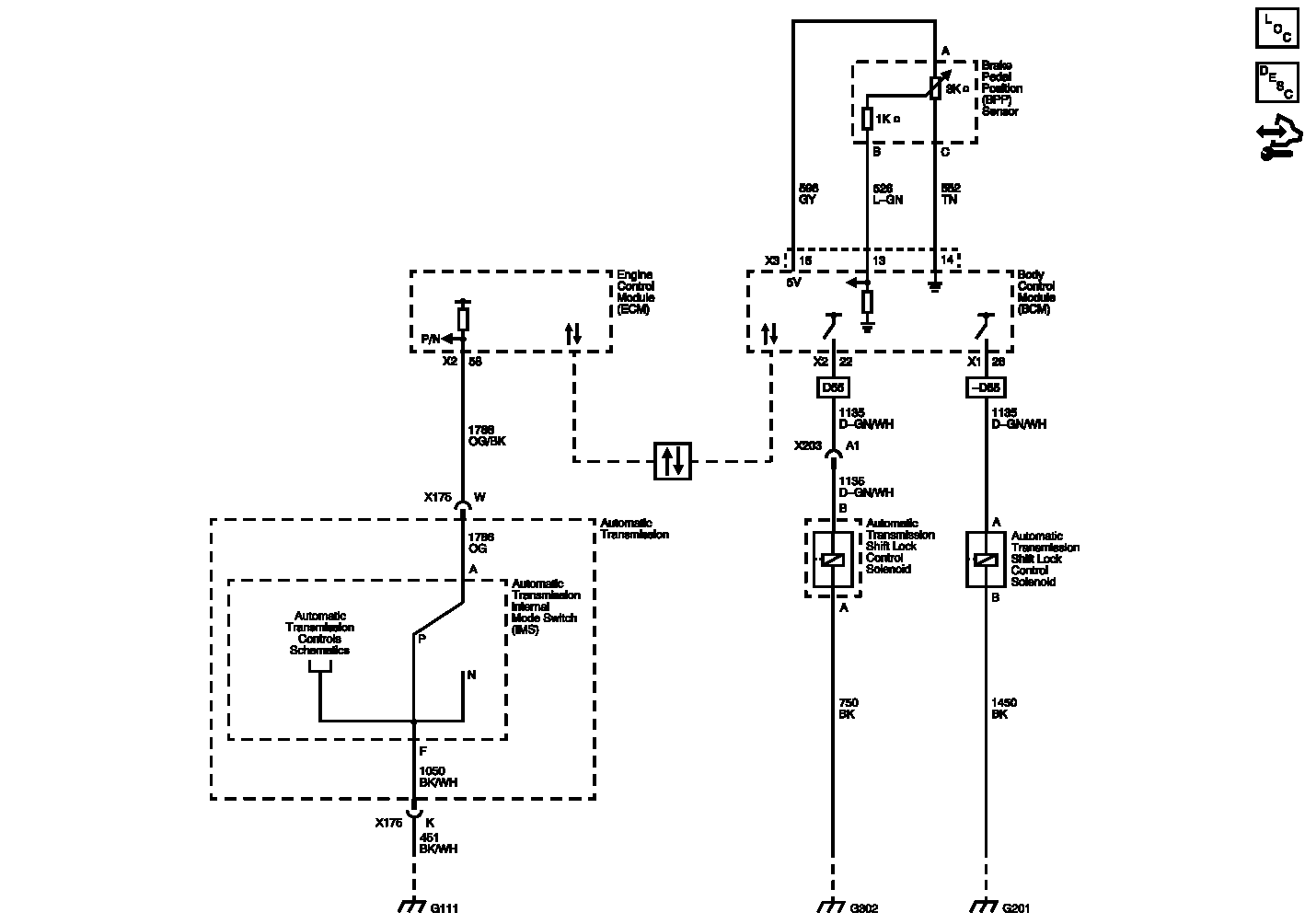

Fig 1: Shift Lock Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
