Body Control Module Replacement (Left Hand Drive)

Download the full database via torrent (~1.1 TB)

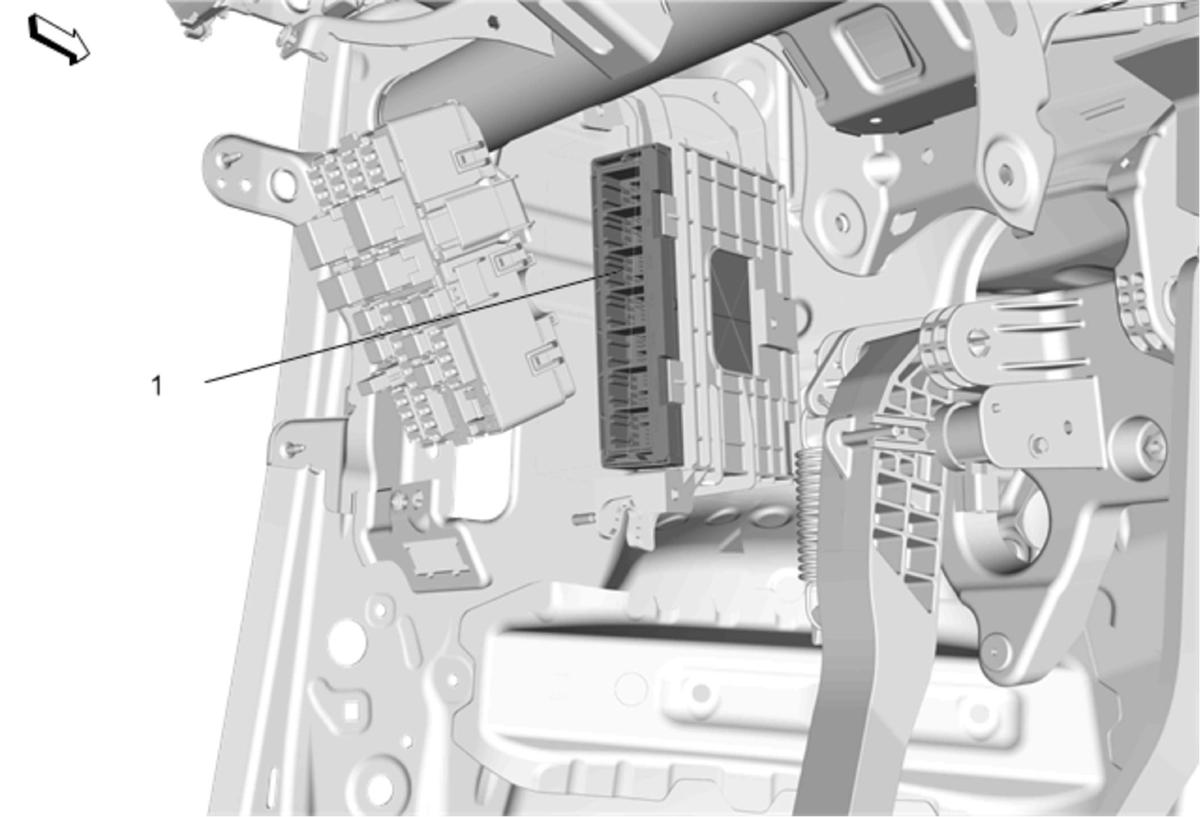

Fig 1: Body Control Module (Left Hand Drive)

GM4051333

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the body control module bracket. Refer to Body Control Module Bracket Replacement .

1

Body Control Module

Procedure

Disconnect electrical connector.
Unclip body control module from body control module bracket.
After replacement, refer to Control Module References for programming and set up procedures.
