EGR Diagnostic Chart: Notes

Download the full database via torrent (~1.1 TB)
NOTE: The EGR solenoid/transducer assembly may be referred to as Electric EGR Transducer (EET) in diagnostic charts.

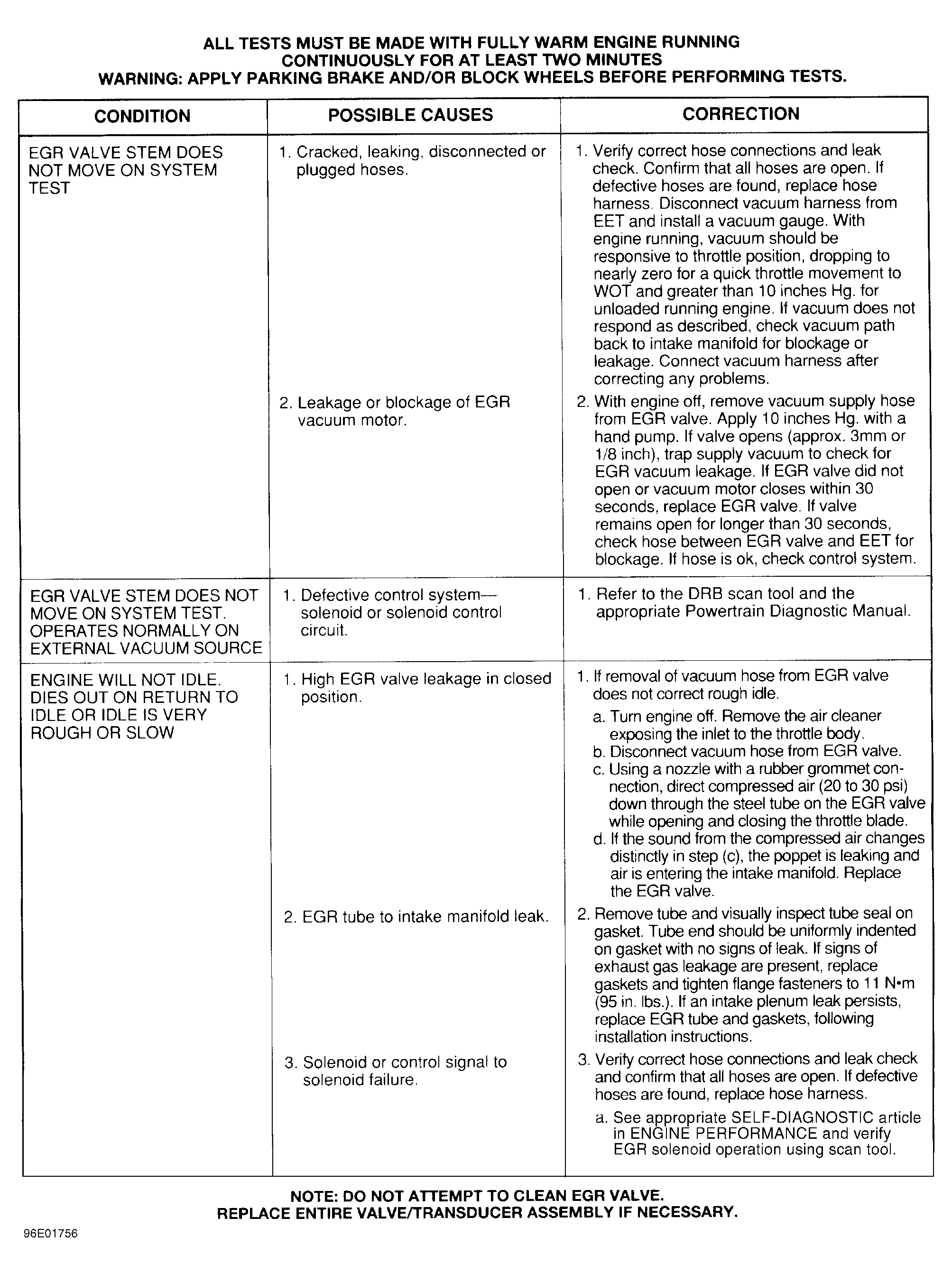

Fig 1: EGR Diagnostic Chart
G96E01756Courtesy of CHRYSLER CORP.
