Camshaft Position Sensor: Removal

The camshaft position sensor is installed in the timing belt housing cover above the left camshaft sprocket (see Fig 1 ).

1. Disconnect the negative battery cable.
2. Remove the upper intake plenum, (see REMOVAL (UPPER) under REMOVAL & INSTALLATION - INTAKE MANIFOLD in 3.5L V6 ENGINE article.
3. Disconnect electrical connector from sensor.
4. Remove camshaft position sensor screw.
5. Pull sensor up out of the timing belt housing cover.

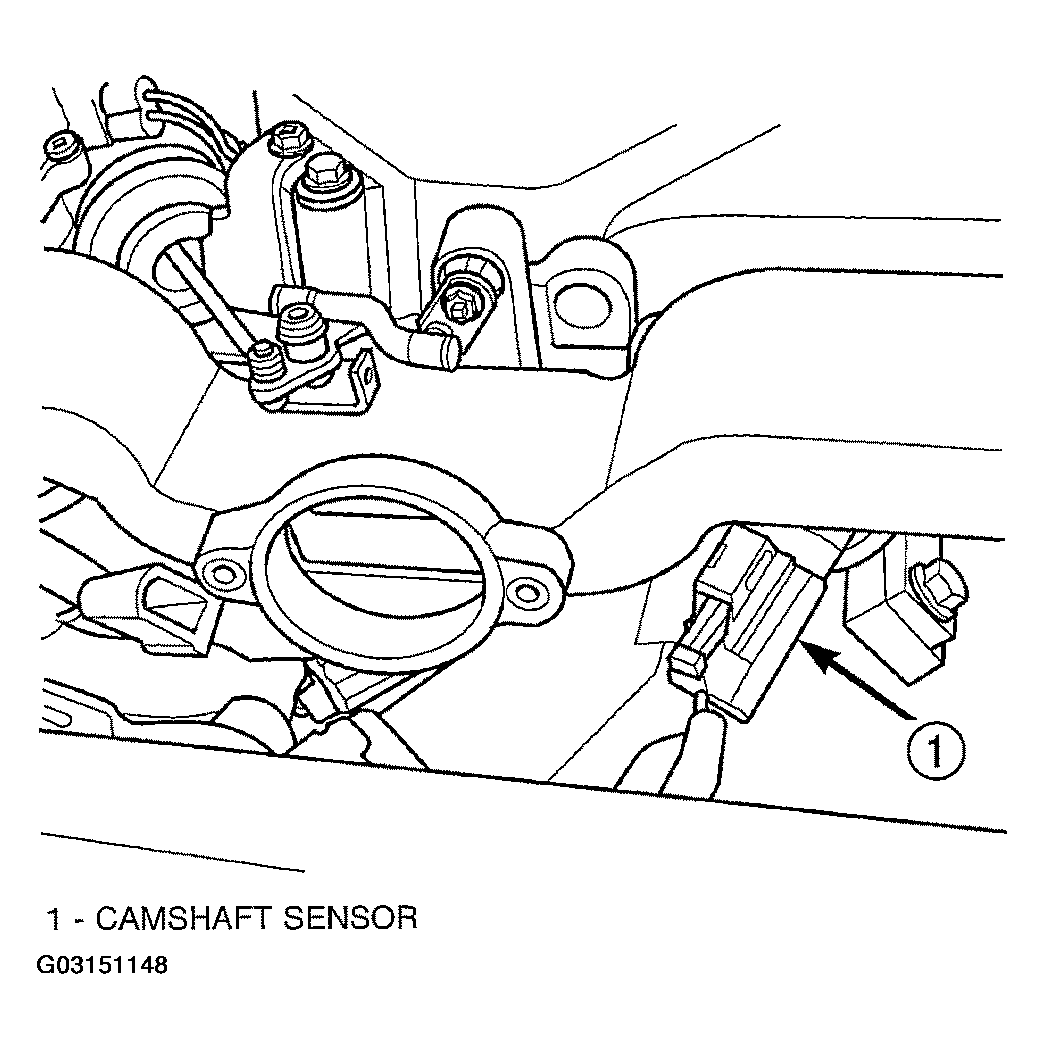

   Fig 1: Removing Camshaft Position Sensor
