Body Control Module: Notes

Download the full database via torrent (~1.1 TB)

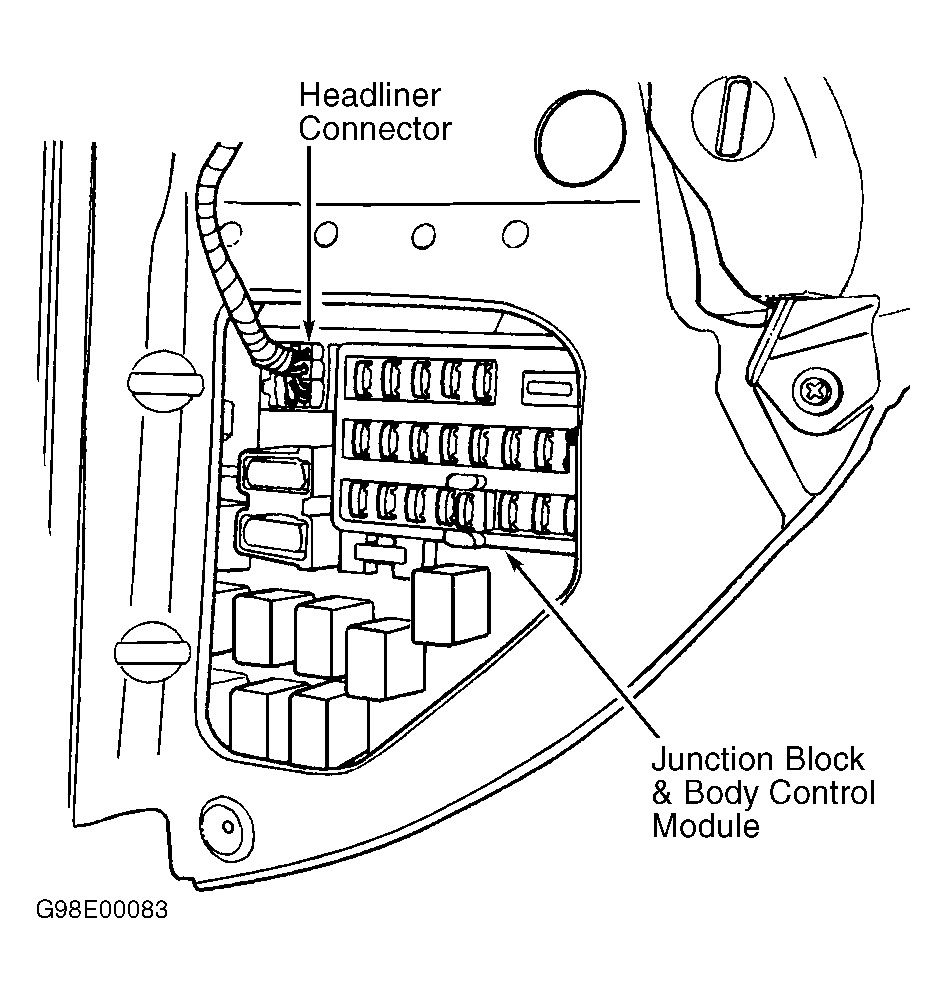

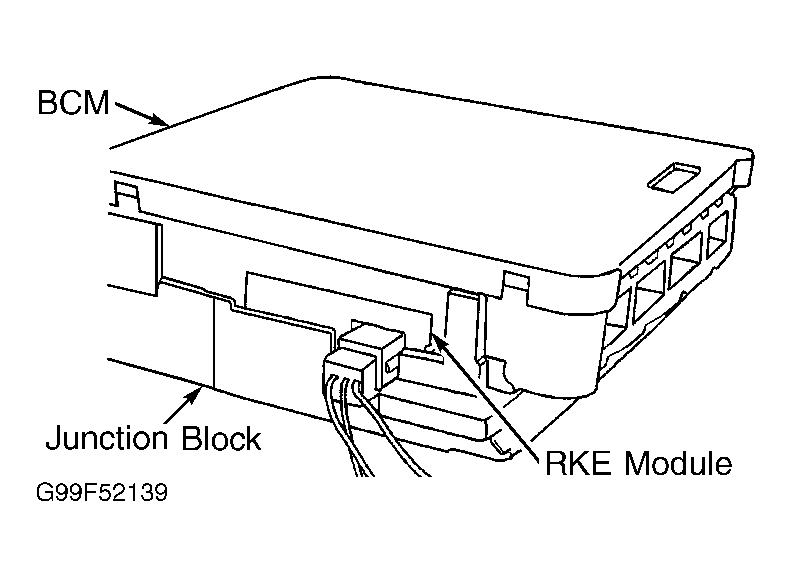

NOTE: Body Control Module (BCM) is attached to junction block. See Figure. Junction block must be removed to enable removal of BCM. Junction block is located behind left side of instrument panel. See Figure.
