Starting System: Starting: Specifications: Starter

NOTE: Engine should be up to operating temperature. Extremely heavy oil or tight engine will increase starter amperage draw.

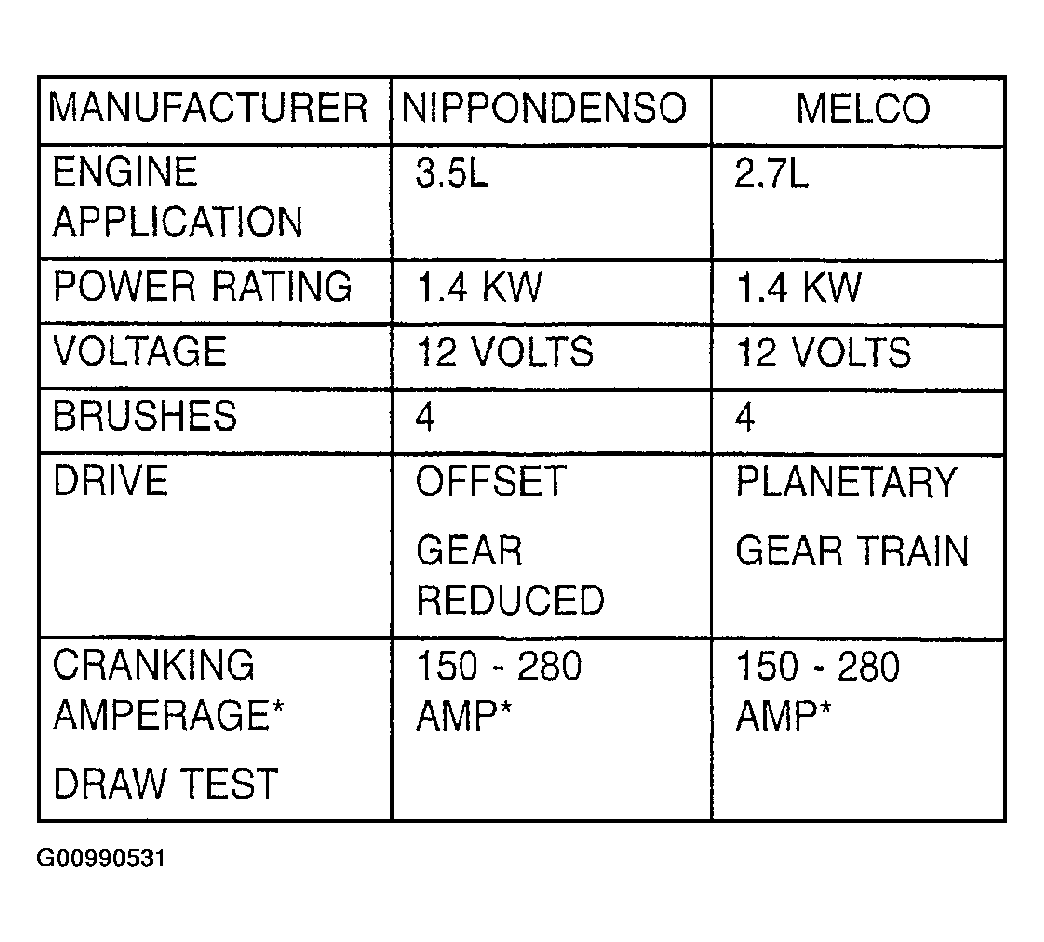

Fig 1: Identifying Starter Specifications

Courtesy of DAIMLERCHRYSLER CORP.
