Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

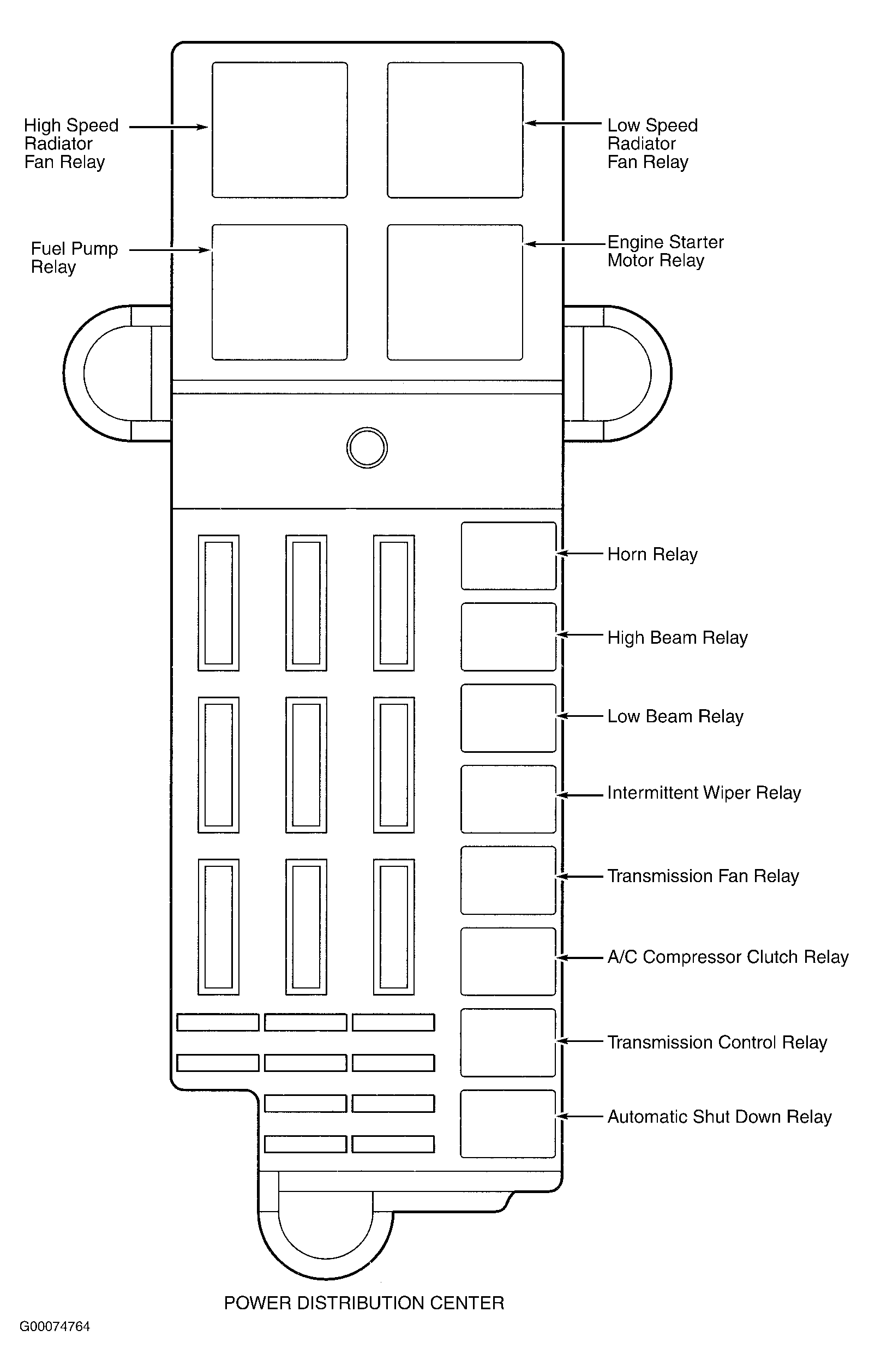

Fig 1: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.

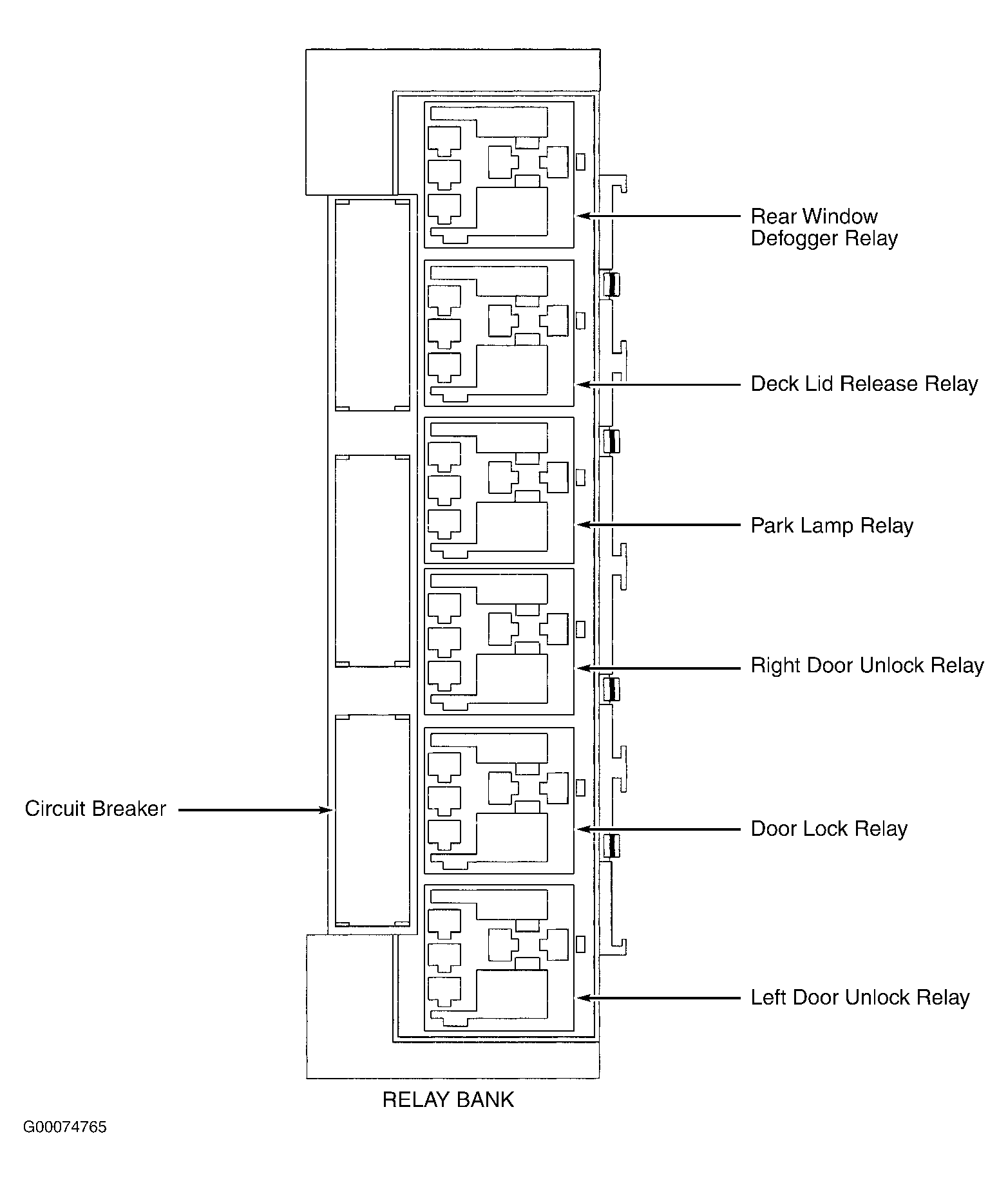

Fig 2: Relay Bank

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Right Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

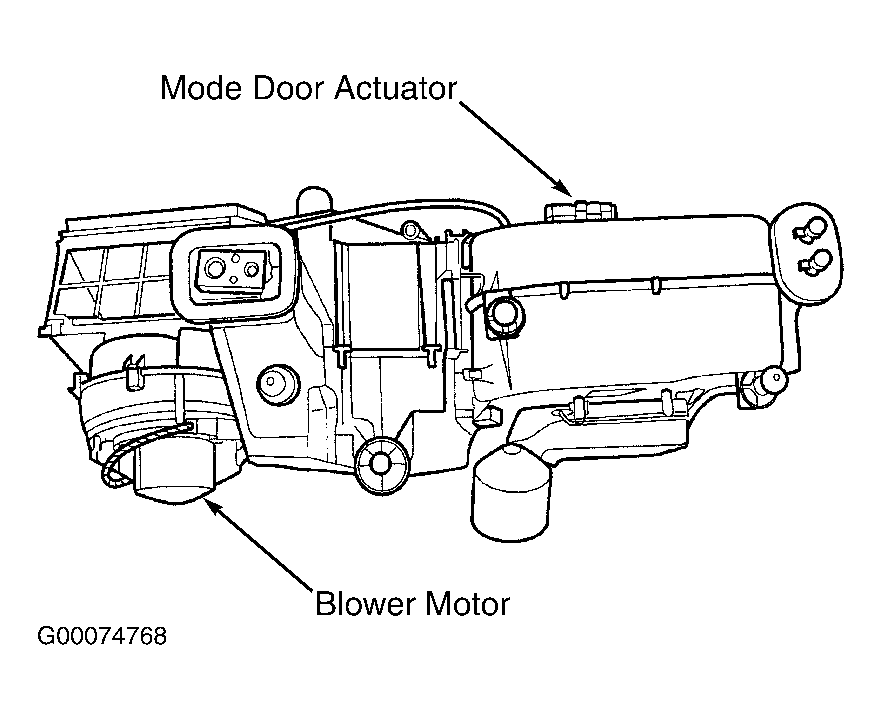

Fig 5: Heater-A/C Unit Housing

Courtesy of DAIMLERCHRYSLER CORP.

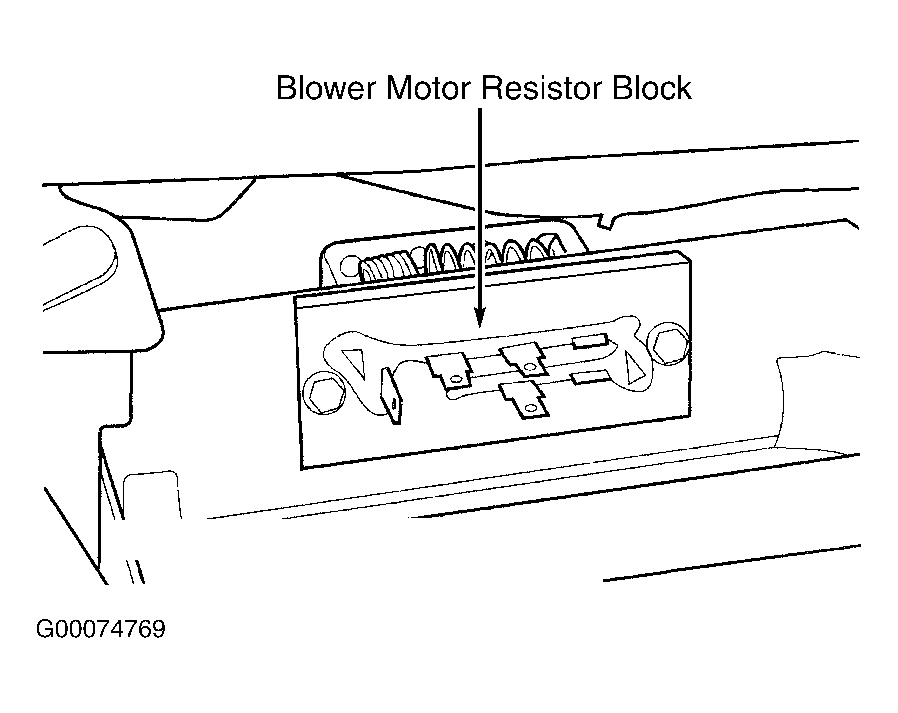

Fig 6: Right Side Of Firewall

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Throttle Body

Courtesy of DAIMLERCHRYSLER CORP.

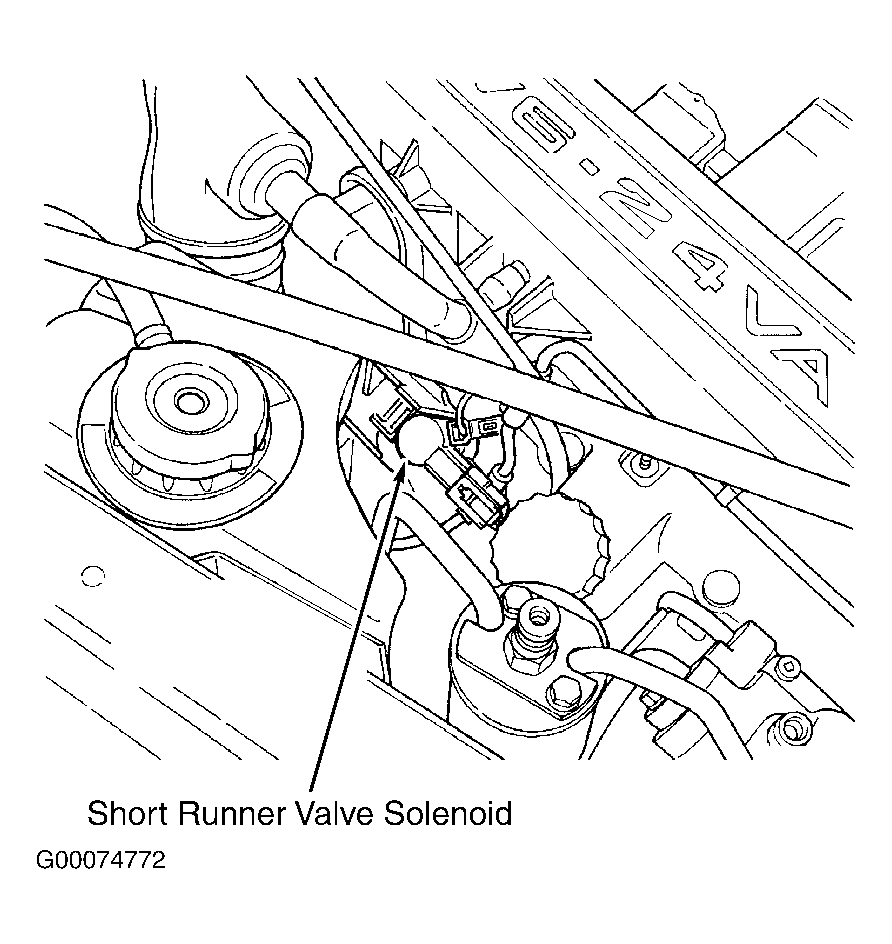

Fig 8: Intake Manifold

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Right Side Of Engine

Courtesy of DAIMLERCHRYSLER CORP.

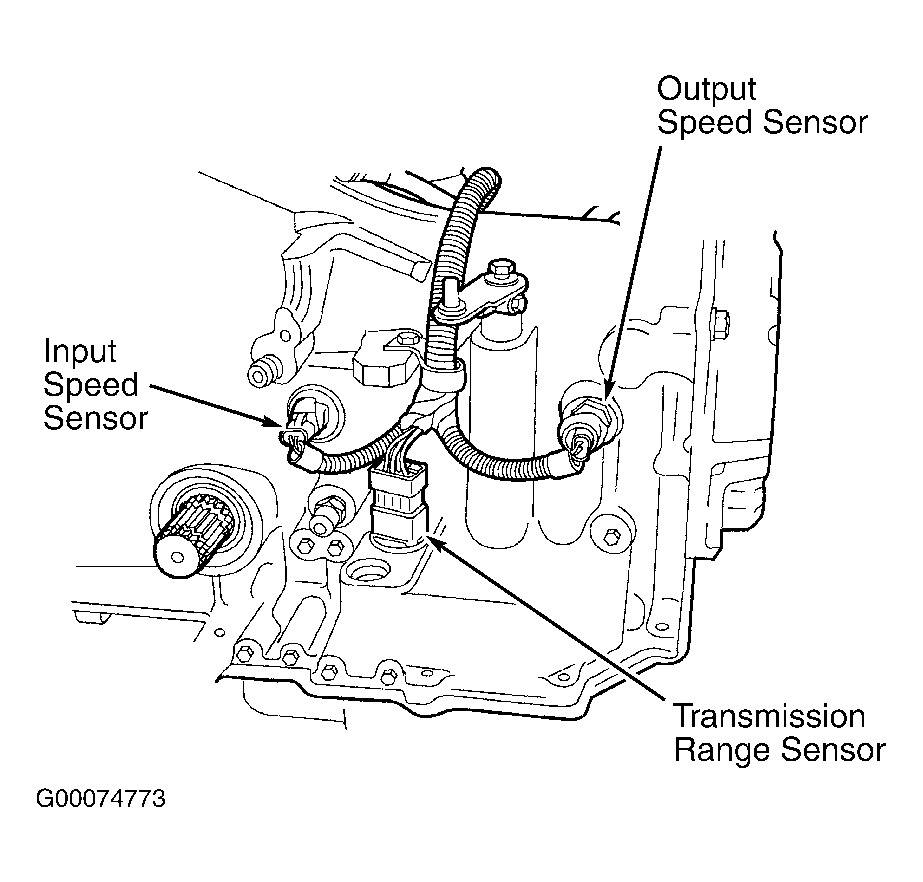

Fig 10: Transmission

Courtesy of DAIMLERCHRYSLER CORP.
