Ignition Coil Capacitor: Removal

Download the full database via torrent (~1.1 TB)
  1. Remove the negative battery cable.
  2. Disconnect the electrical connector ( Fig 1 ) or (Fig 2 ).

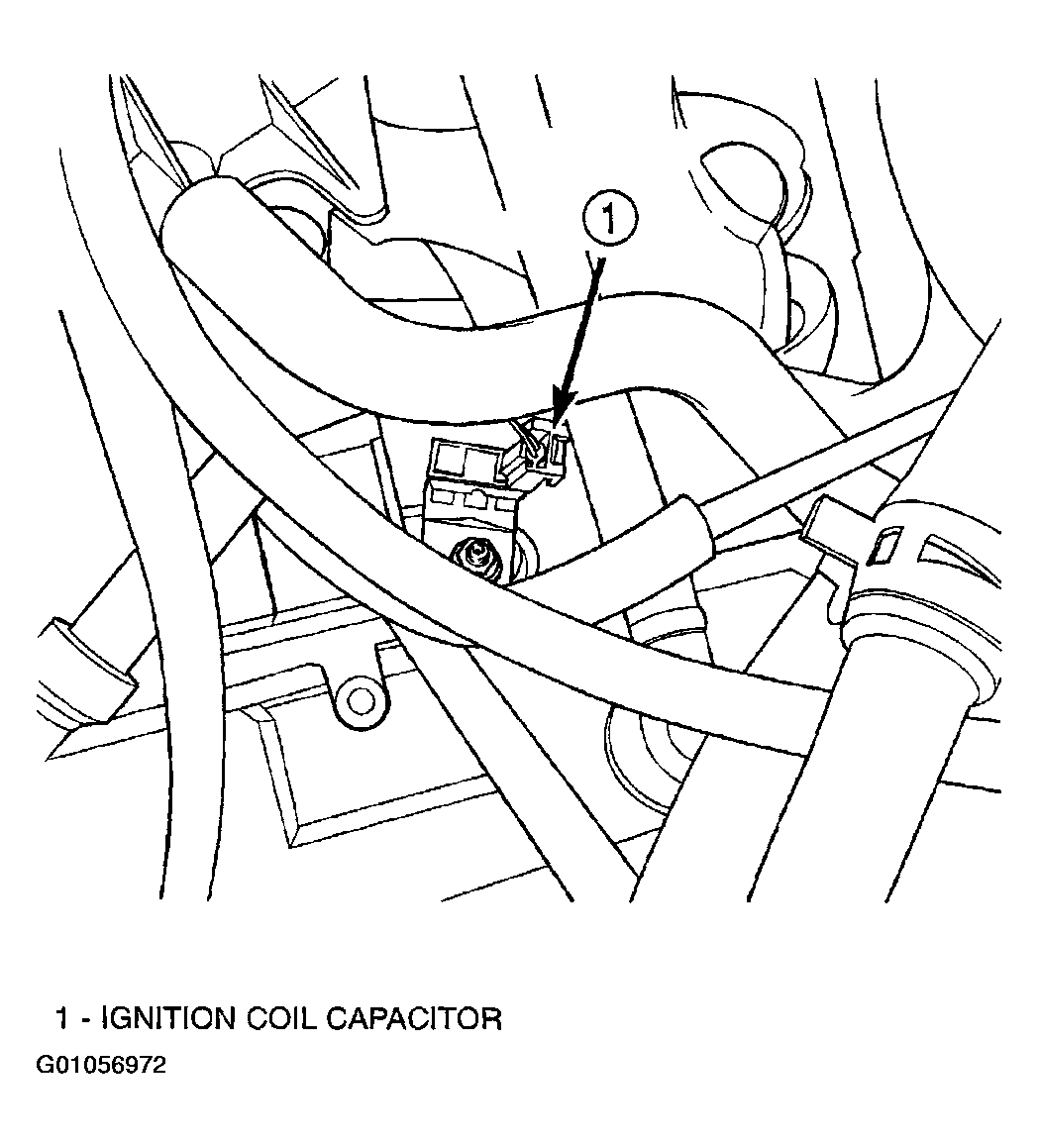

    Fig 1: Identifying Ignition Coil Capacitor (1 Of 2)
    G01056972Courtesy of DAIMLERCHRYSLER CORP.

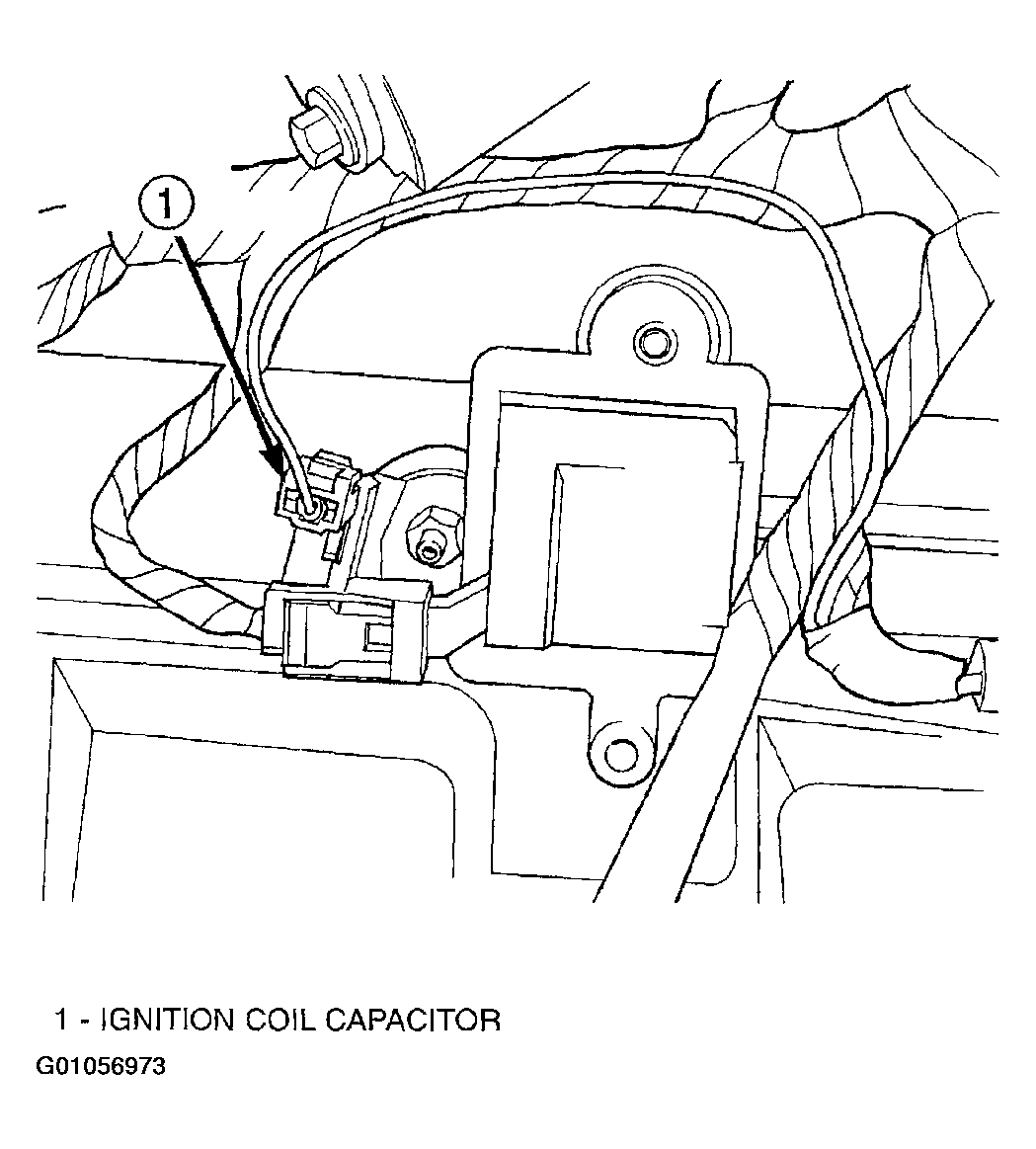

    Fig 2: Identifying Ignition Coil Capacitor (2 Of 2)
    G01056973Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove nut and capacitor.
