Torque Specifications
Torque Specifications
Download the full database via torrent (~1.1 TB)

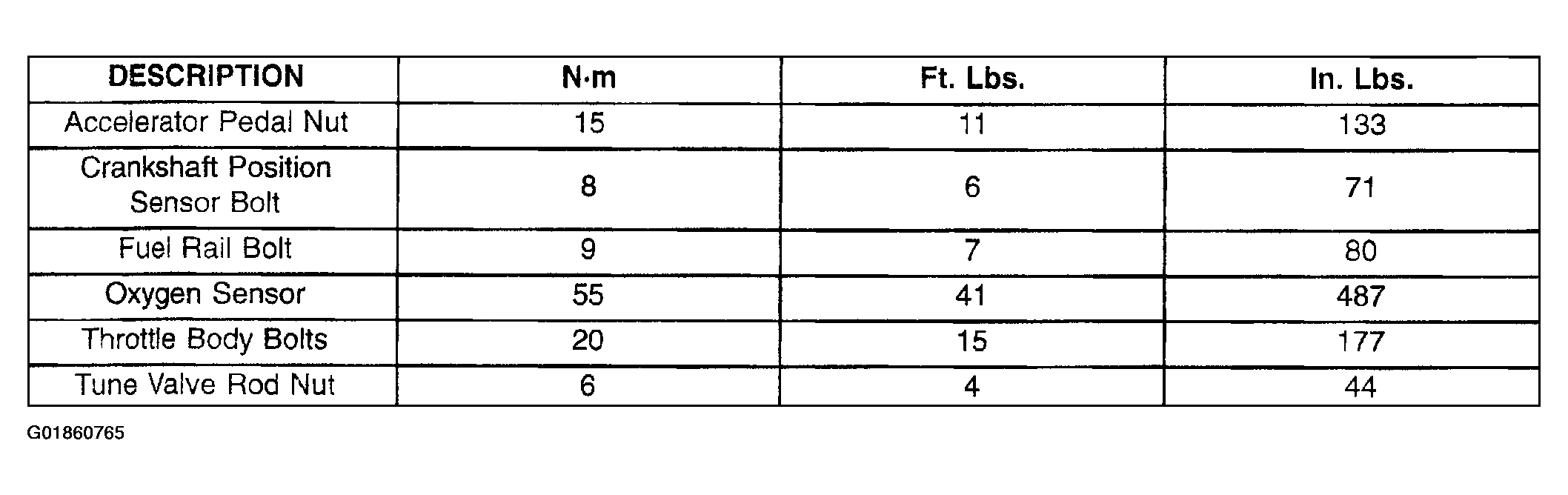

Fig 1: Fuel Injection Component Torque Specifications Table
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
