Fuel Injector: Description

Download the full database via torrent (~1.1 TB)

The injectors are positioned in the cylinder heads with the nozzle ends directly above the intake valve port. The fuel injectors are electrical solenoids.

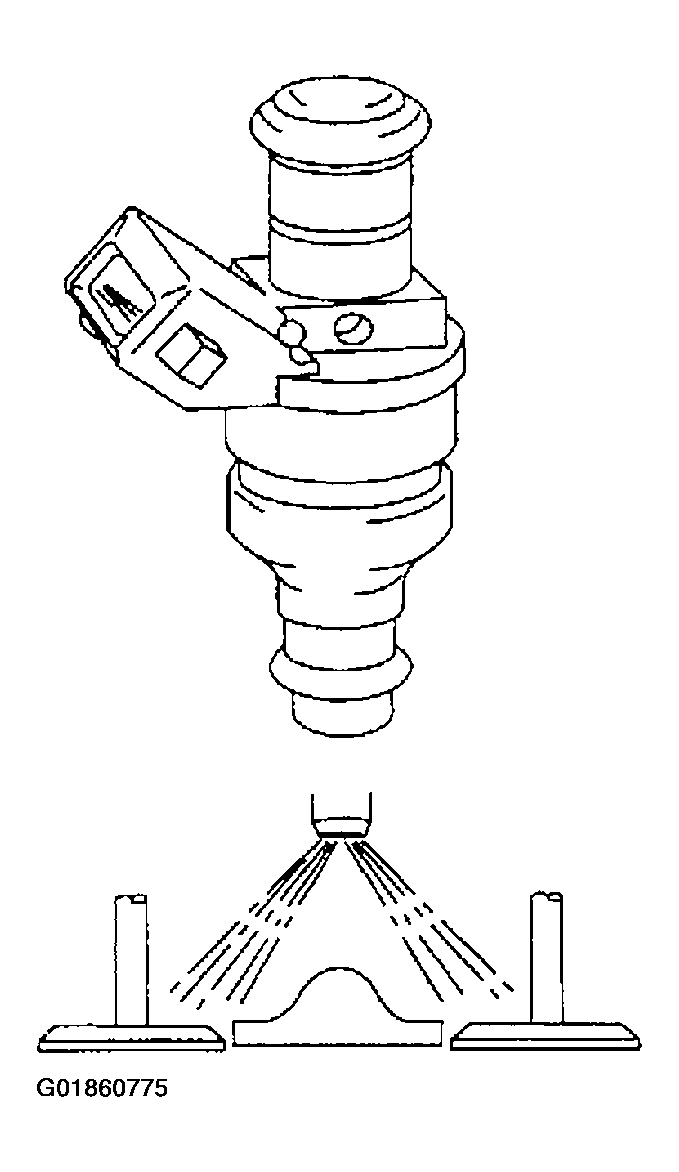

Fig 1: Identifying Fuel Injector
G01860775Courtesy of DAIMLERCHRYSLER CORP.
