Map Sensor: Installation

Download the full database via torrent (~1.1 TB)
  1. Install the MAP sensor.
  2. Install the bolt (1).

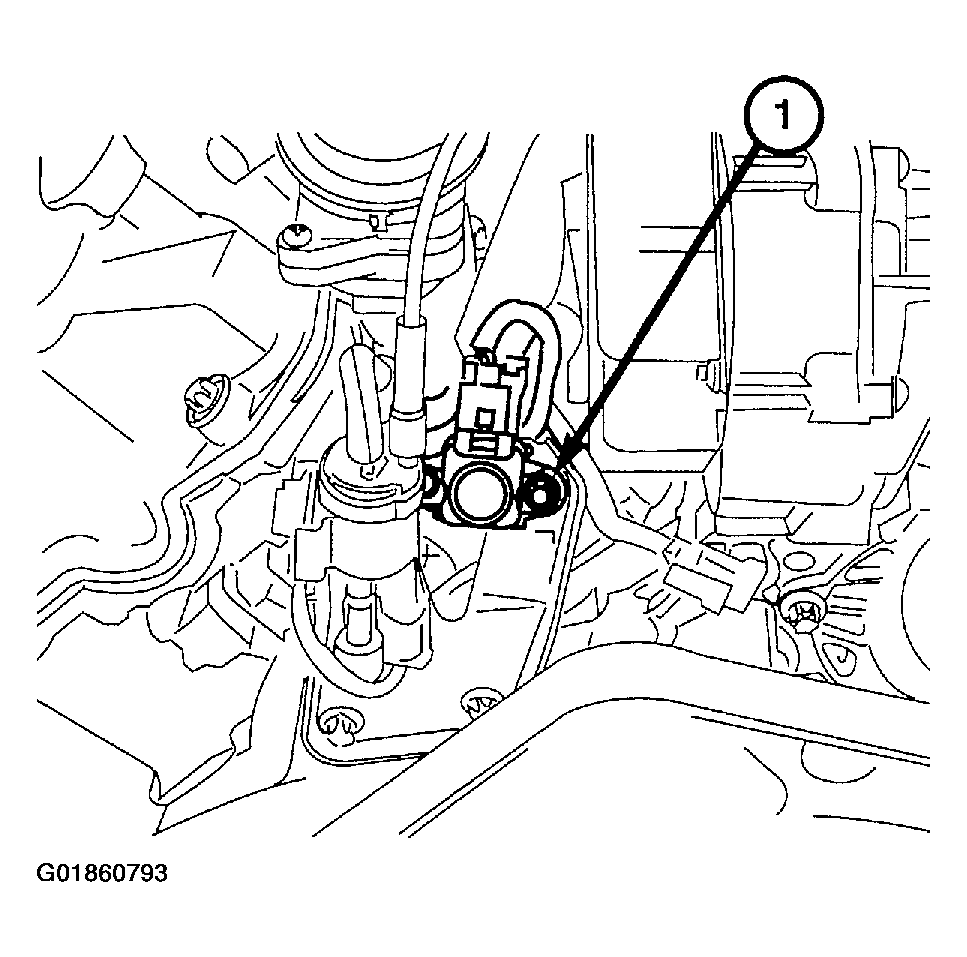

    Fig 1: Installing MAP Sensor
    G01860793Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the Manifold Absolute Pressure (MAP) harness connector.
  4. Install the air cleaner housing. See 3.2L V6 article.
  5. Connect the negative battery cable.
