Map Sensor: Removal

Download the full database via torrent (~1.1 TB)
  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing. See 3.2L V6 article.
  3. Disconnect the Manifold Absolute Pressure (MAP) harness connector.
  4. Remove the retaining bolt (1).
  5. Remove the (MAP) sensor.

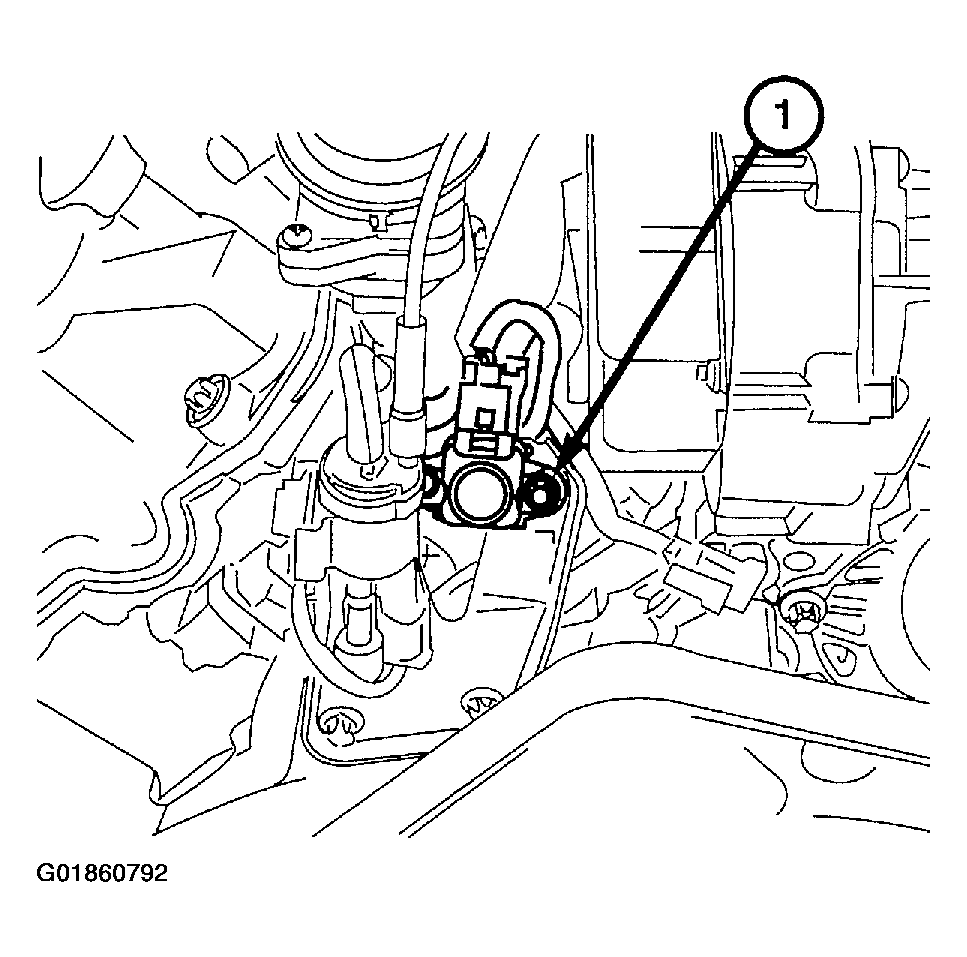

    Fig 1: Removing MAP Sensor
    G01860792Courtesy of DAIMLERCHRYSLER CORP.
