Ignition Coil Capacitor: Removal

Download the full database via torrent (~1.1 TB)
  1. Remove the negative battery cable.
  2. Disconnect the electrical connector (Fig 1 ).

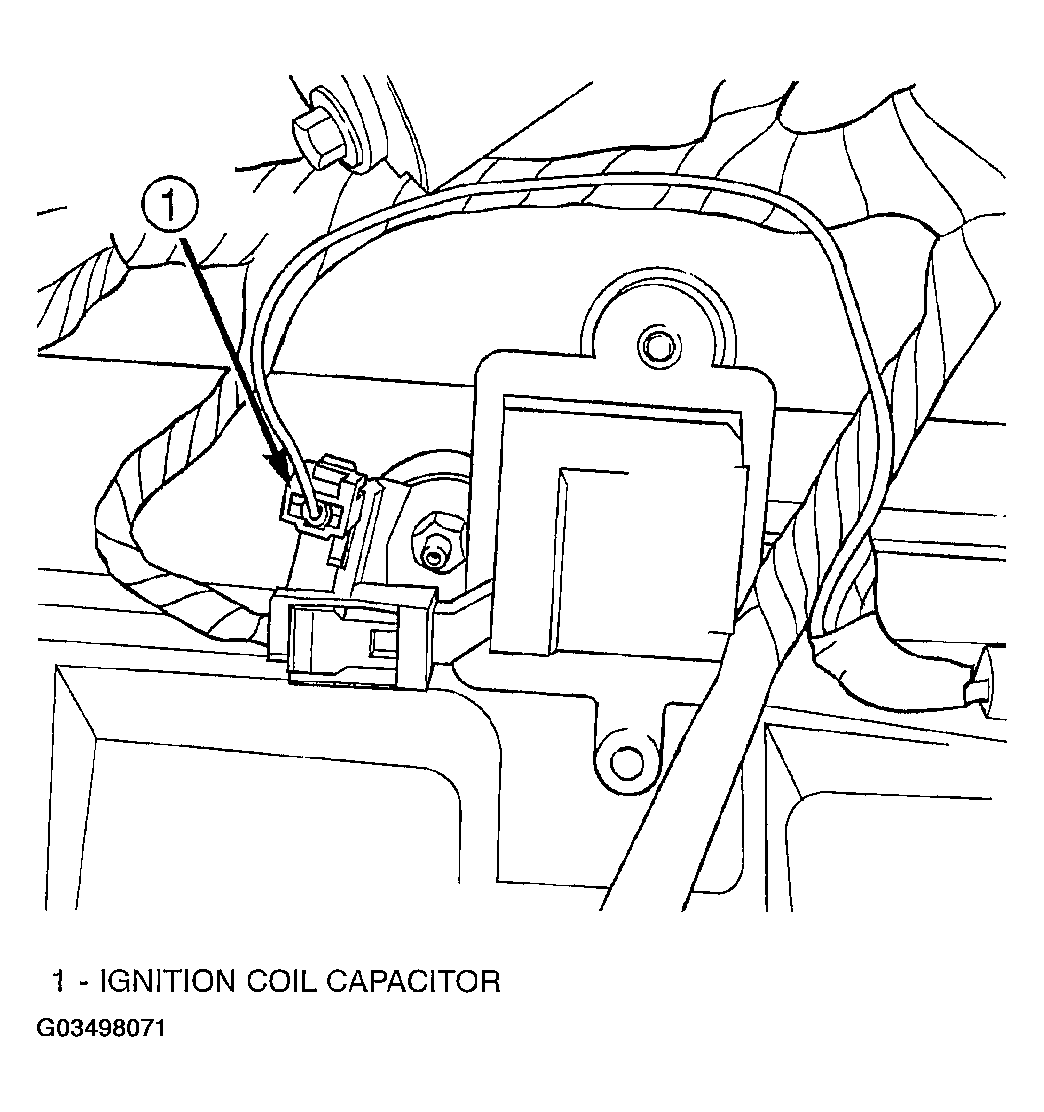

    Fig 1: Coil Capacitor
    G03498071Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove nut and capacitor.
