Left Speed Control Switch
Left Speed Control Switch
Download the full database via torrent (~1.1 TB)

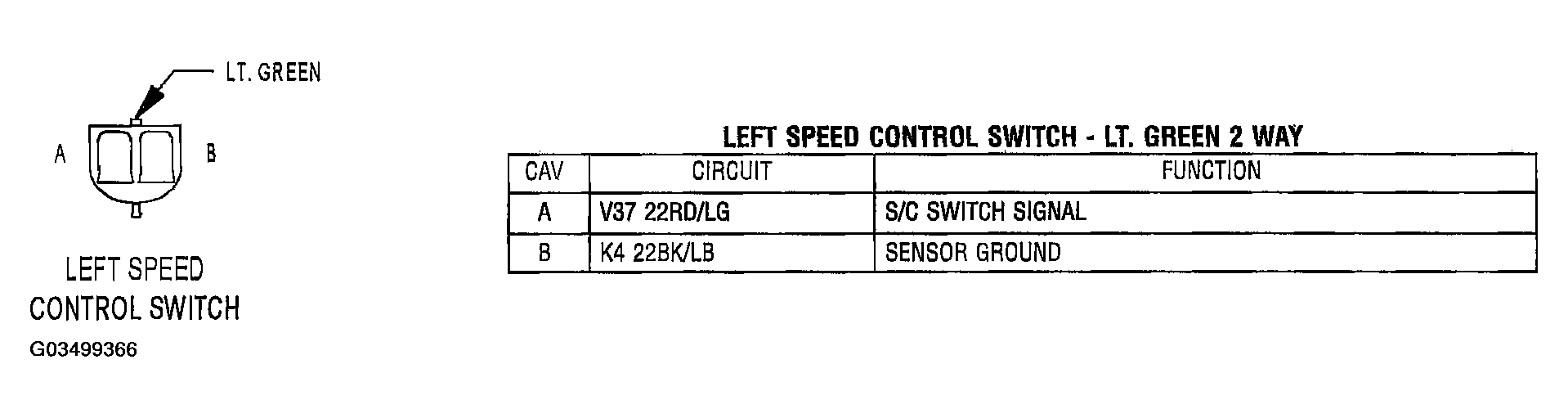

Fig 1: Identifying Left Speed Control Switch Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
