Body Control Module C4
Download the full database via torrent (~1.1 TB)

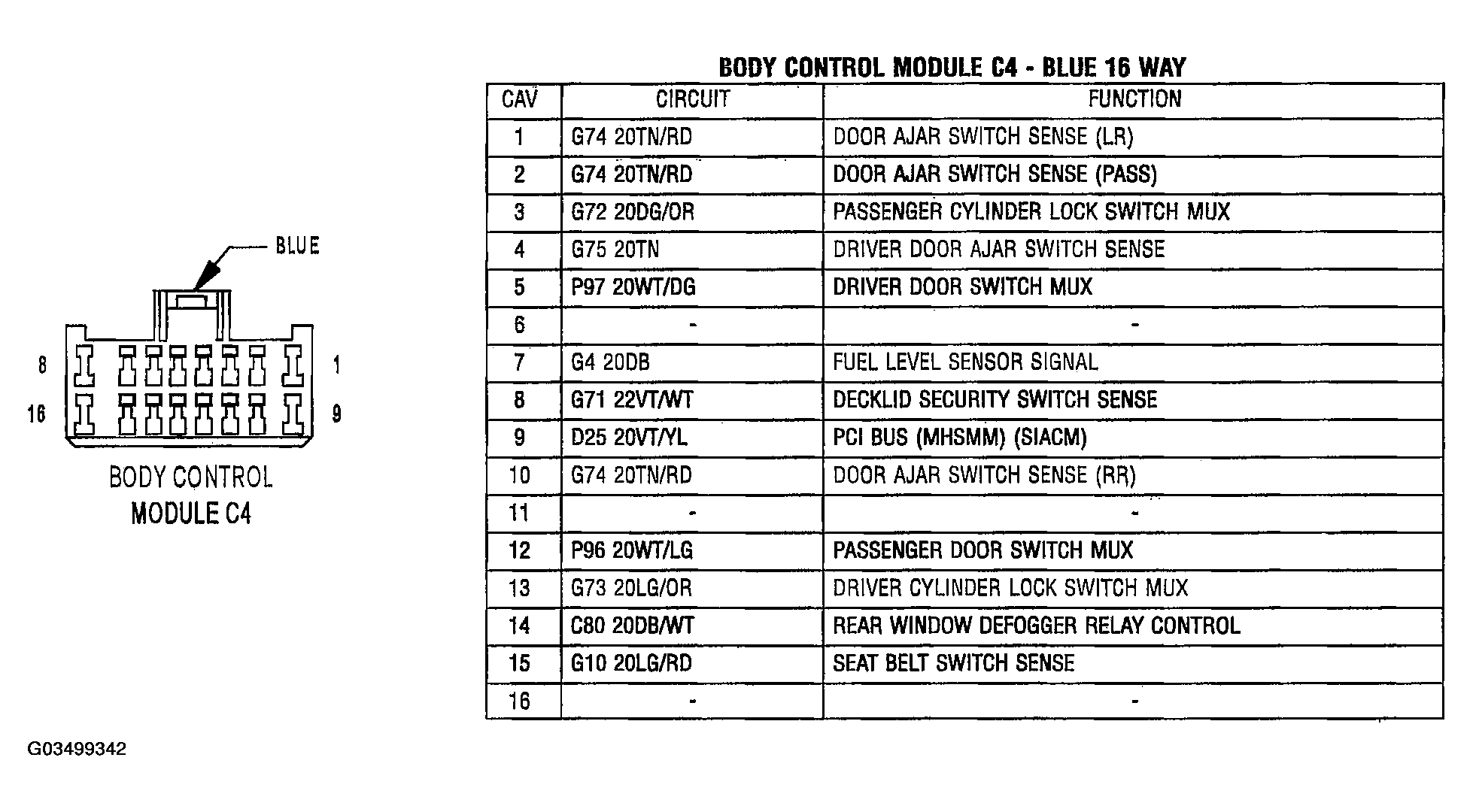

Fig 1: Identifying Body Control Module Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
