Intrepid SXT
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures
>>
Connector PINOUTS
>>
Powertrain Control Module C3
Powertrain Control Module C3
Download the full database via torrent (~1.1 TB)

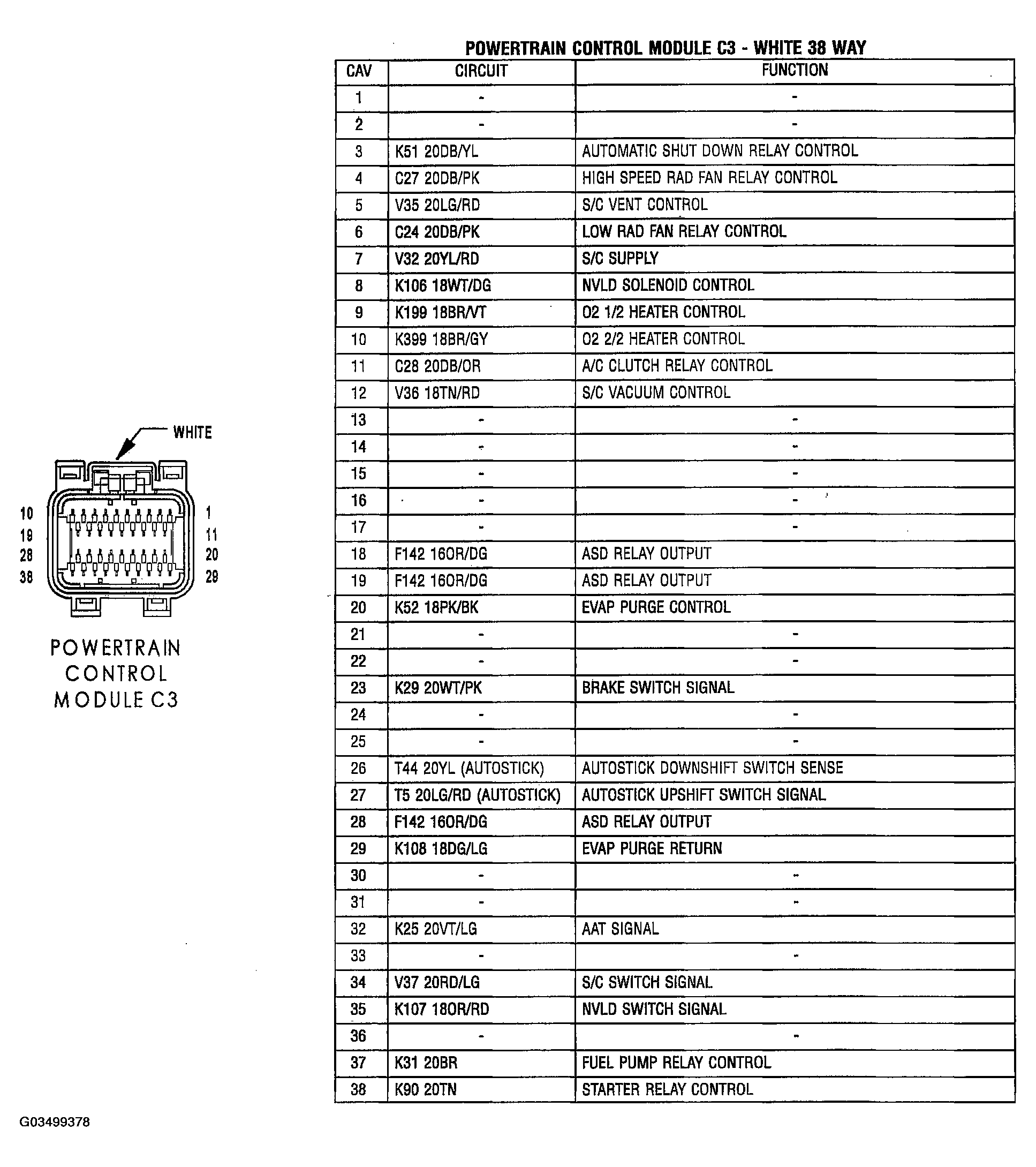

Fig 1: Identifying Powertrain Control Module C3 Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
