Engine Controls - Self-Diagnostics
>>
System Specifications
>>
EVAP Data Display
>>
EVAP Data Display 02
EVAP Data Display 02
Download the full database via torrent (~1.1 TB)

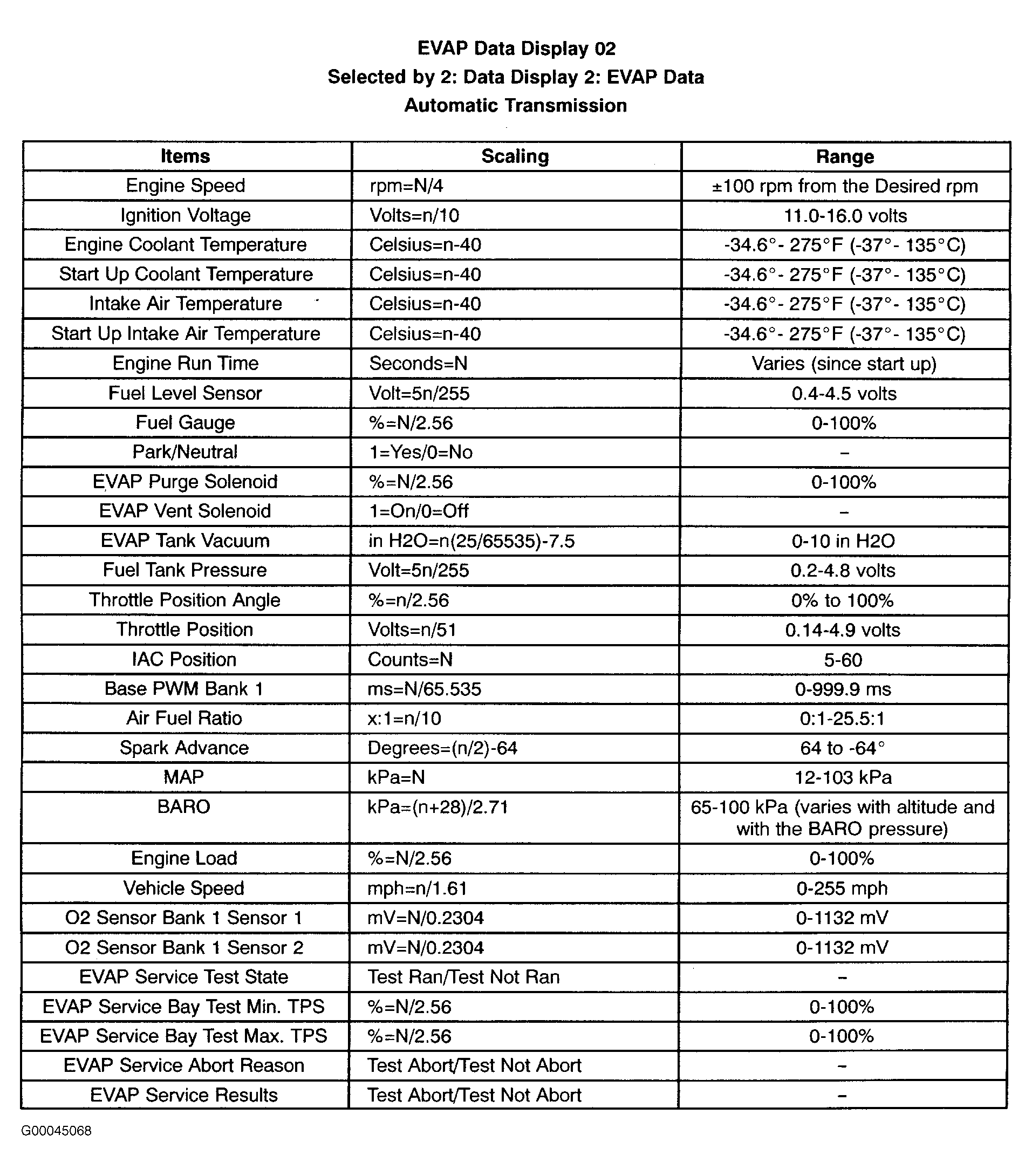

Fig 1: EVAP Data Display 02
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
