Circuit Protection Devices
CAUTION:
DO NOT connect or disconnect Air Bag System Diagnostic Module (ASDM) electrical connector unless module mounting tabs are securely bolted (grounded) to vehicle. ALWAYS disconnect and isolate battery negative cable before servicing system.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Block (Interior) | ||

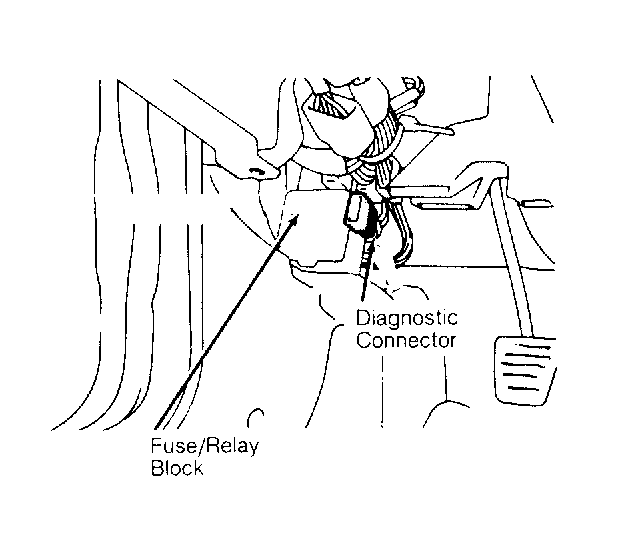

| View of Fuse/Relay Block | Under left side of dash. See Figure . | |
| Location of Fuse/Relay Block | Under left side of dash. See Figure . | |
| Fusible Links | ||
| Main | Next to battery. | |
| Sub | On relay block, in engine bay. | |
| Relay Block | In right side of engine bay. | |
