Air Induction System: Maintenance

Every 15, 000 miles, check operation and condition of reed valve(s) and reed valve filter. Also, inspect condition of all lines and fittings. Every 30, 000 miles, replace reed valve filter in air cleaner housing.

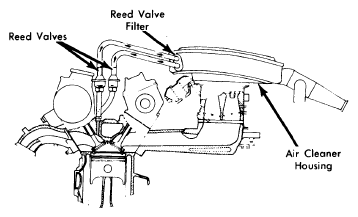

Fig 1: Air Induction System (Strada & X1/9)

Courtesy of NOT AVAILABLE

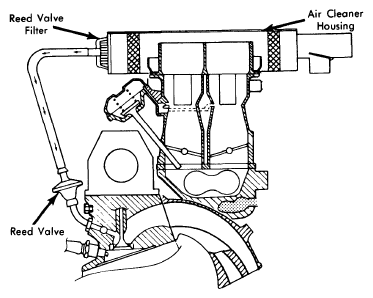

Fig 2: Air Injection System (Brava & Spider 2000)

Courtesy of NOT AVAILABLE
