Single Switch

Download the full database via torrent (~1.1 TB)

Remove single switch from vehicle. Measure resistance between specified terminals while operating switch. See SINGLE SWITCH TESTING TABLE. See Fig 1. Replace switch if resistance between specified terminals is greater than 5 ohms. DO NOT check resistance between terminals not specified.

SINGLE SWITCH TESTING

Switch Position	Continuity Between Terminals No.
Neutral	1 & 5; 2 & 4
Up	2 & 3
Down	3 & 5

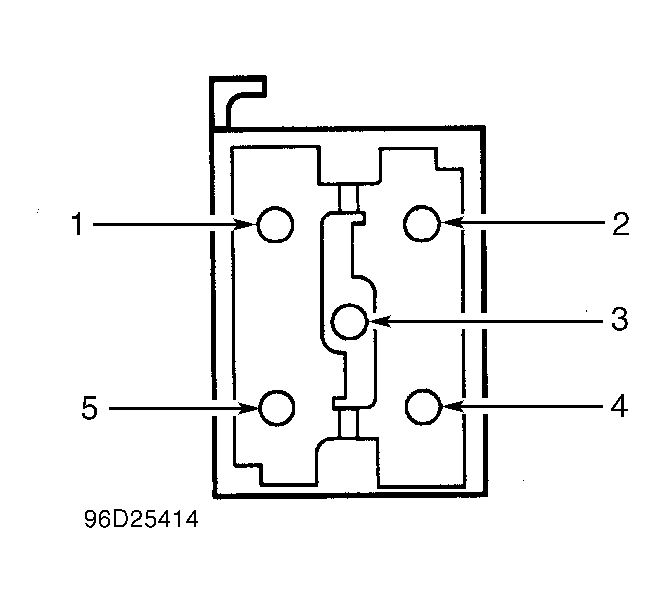

Fig 1: Identifying Single Switch Terminals

Courtesy of FORD MOTOR CO.
