Test B

Download the full database via torrent (~1.1 TB)

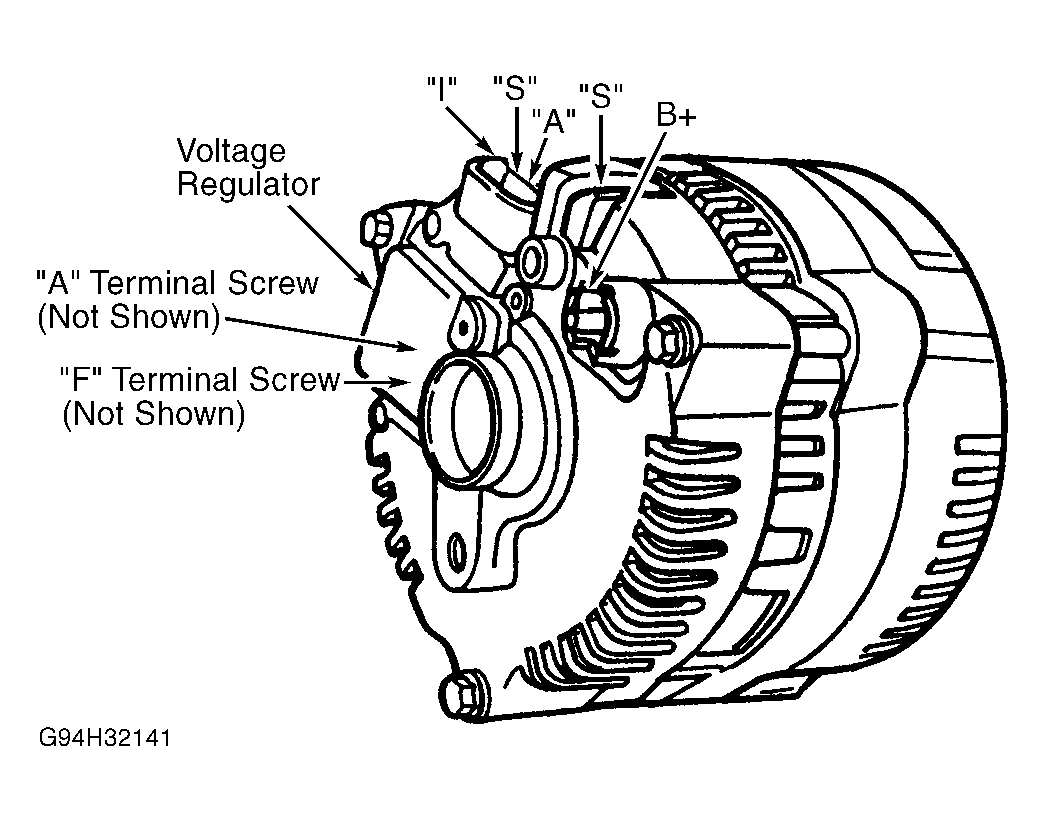

With ignition in RUN position, measure voltage between generator terminal "F" screw and ground. See Figure . If battery voltage is present, replace voltage regulator. See VOLTAGE REGULATOR under REMOVAL & INSTALLATION. If battery voltage is not present, repair circuit (Black wire) between battery and generator. See WIRING DIAGRAMS . Check system operation.
