Master Window Control Switch

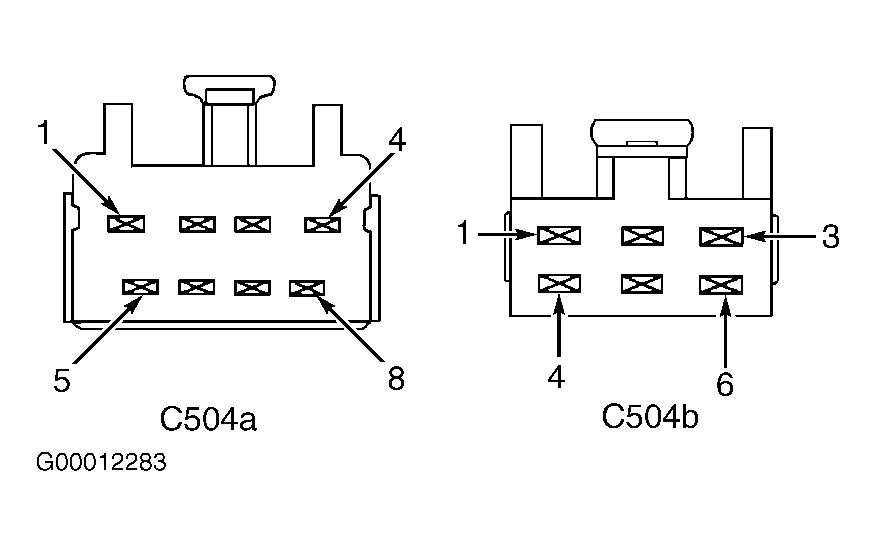

Remove master window control switch from vehicle. Check continuity between specified terminals while operating switch to specified position. See MASTER WINDOW CONTROL SWITCH TESTING table. See Figure . Replace master window control switch if continuity between specified terminals is not as specified.
MASTER WINDOW CONTROL SWITCH TESTING
| Switch Position | Between Terminals No. | Continuity | |||
|---|---|---|---|---|---|
| One-Touch Down | |||||
| Down | 4 & 8 (1) | Yes | |||
| Neutral | 4 & 8 (1) | No | |||
| Lock-Out Circuit | |||||
| Locked | 1 & 4 | Yes | |||
| Unlocked | 1 & 4 | No | |||
| Driver's Side | |||||
| Up | 4 & 6 (1) | Yes | |||
| Down | 4 & 7 (1) | Yes | |||
| Neutral | 2 & 6 (1) ; 2 &7 (1) | Yes | |||
| Passenger's Side | |||||
| Up | 4 & 4 (1) | Yes | |||
| Down | 3 & 4 (1) | Yes | |||
| Neutral | 2 (1) & 4 (1) ; 2 (1) & 3 (1) | Yes | |||
| Left Rear | |||||
| Up | 4 & 5 | Yes | |||
| Down | 4 & 6 | Yes | |||
| Neutral | 2 (1) & 5; 2 (1) & 6 | Yes | |||
| Right Rear | |||||
| Up | 3 & 4 | Yes | |||
| Down | 2 & 4 | Yes | |||
| Neutral | 2 (1) & 3; 2 (1) & 2 | Yes | |||
|
|||||
