Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

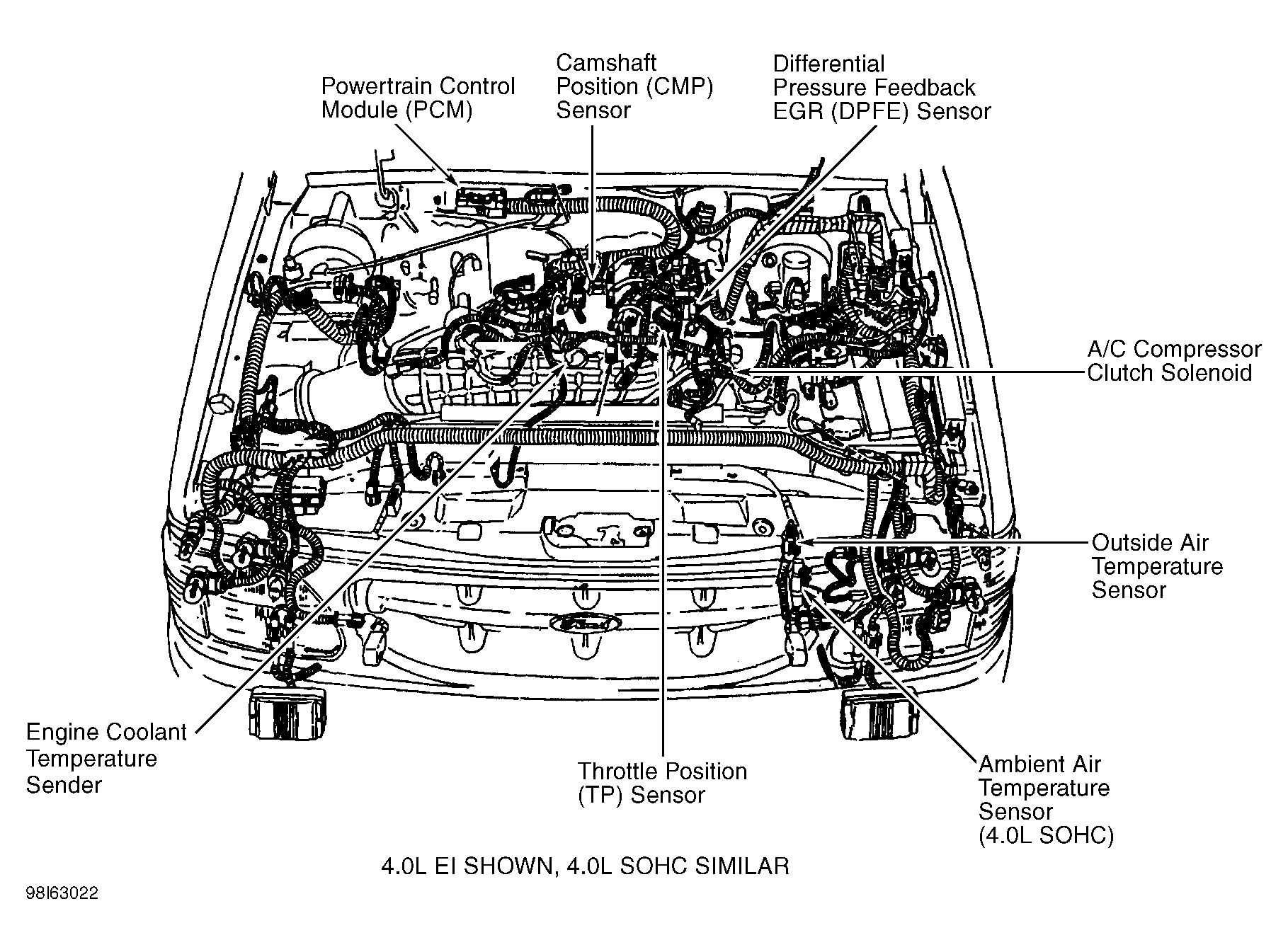

Fig 1: Engine Compartment (4.0L EI Shown, 4.0L SOHC Similar)

Courtesy of FORD MOTOR CO.

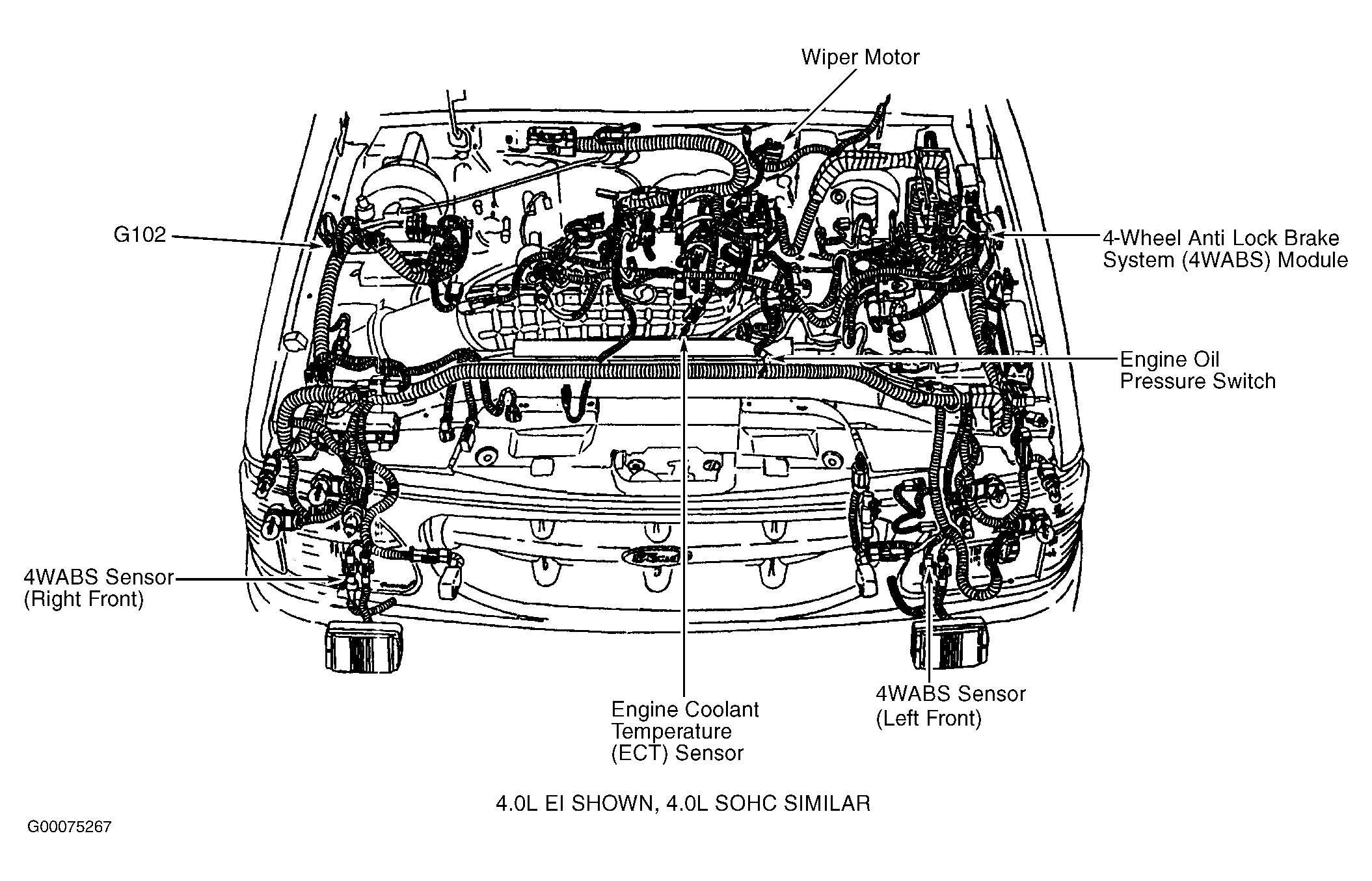

Fig 2: Engine Compartment (4.0L EI Shown, 4.0L SOHC Similar)

Courtesy of FORD MOTOR CO.

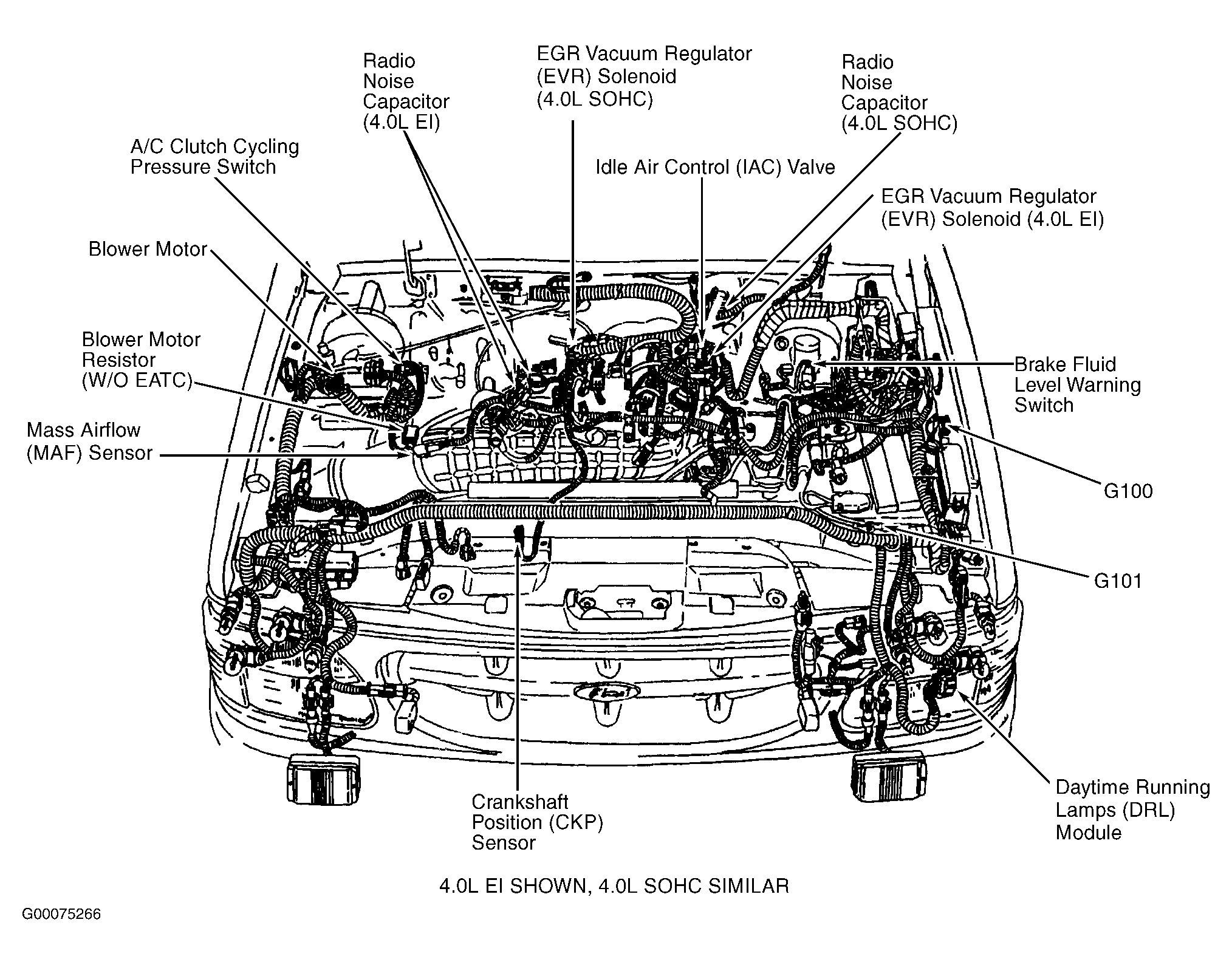

Fig 3: Engine Compartment (4.0L EI Shown, 4.0L SOHC Similar)

Courtesy of FORD MOTOR CO.

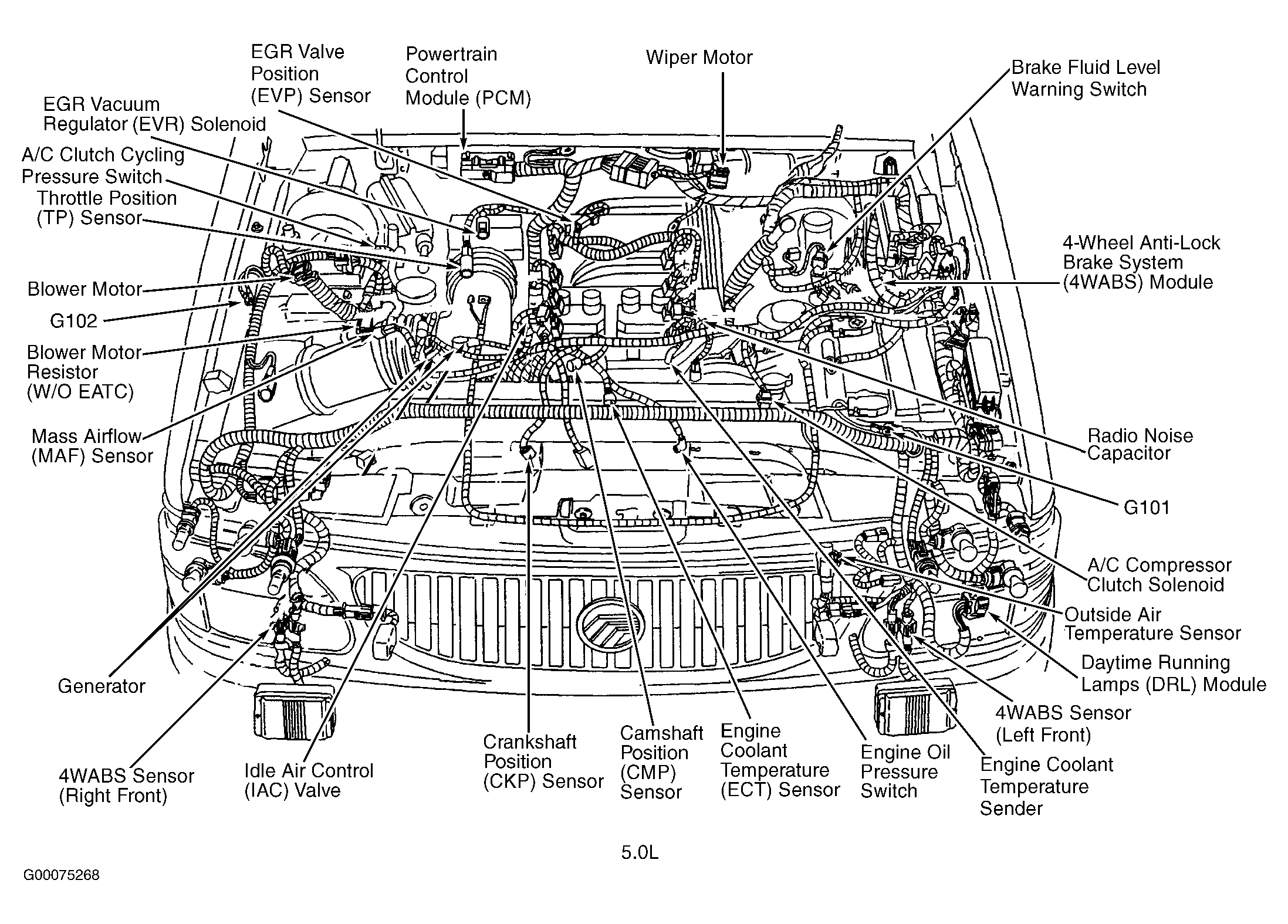

Fig 4: Engine Compartment (5.0L)

Courtesy of FORD MOTOR CO.
