Reference Value Symptom Chart

Download the full database via torrent (~1.1 TB)

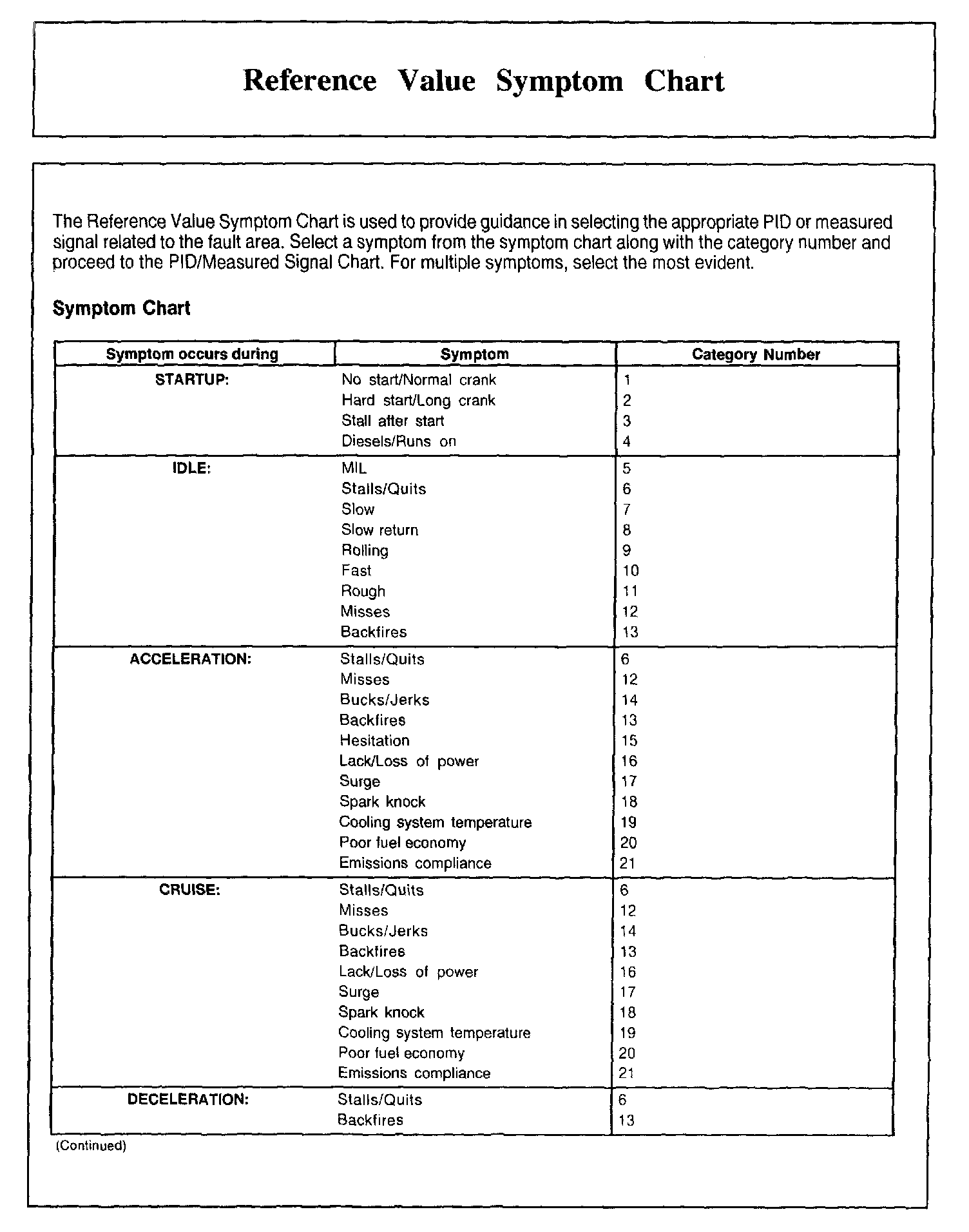

Reference Value Symptom Chart, Part 1:

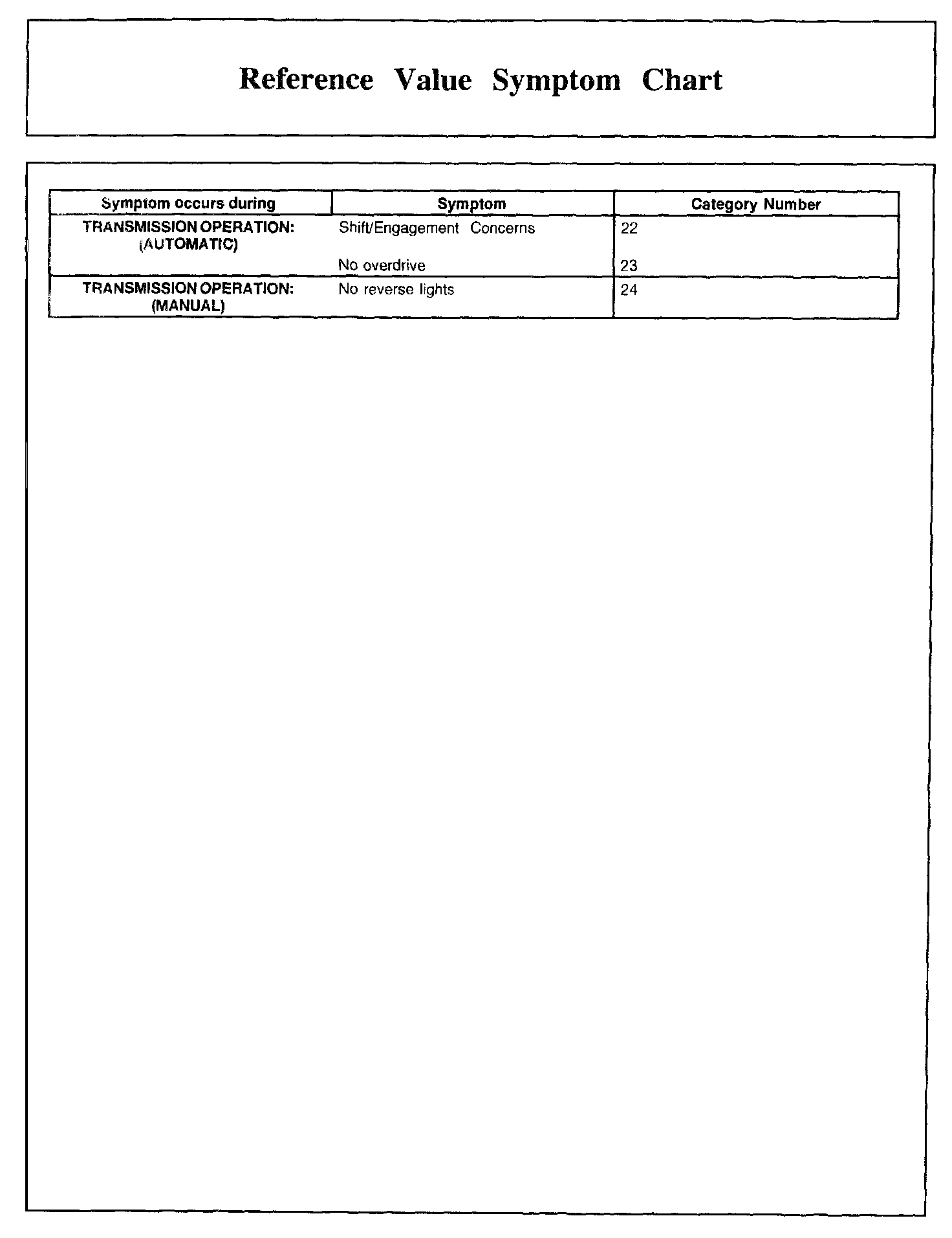

Reference Value Symptom Chart, Part 2:
