Spark Plug: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.
2. Remove the ignition coil.

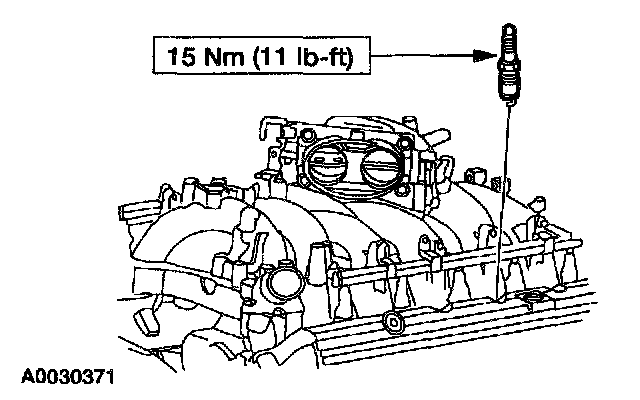

3. Remove the spark plug.

NOTE: Remove any foreign material from the spark plug wells with compressed air.

4. Inspect the spark plugs.

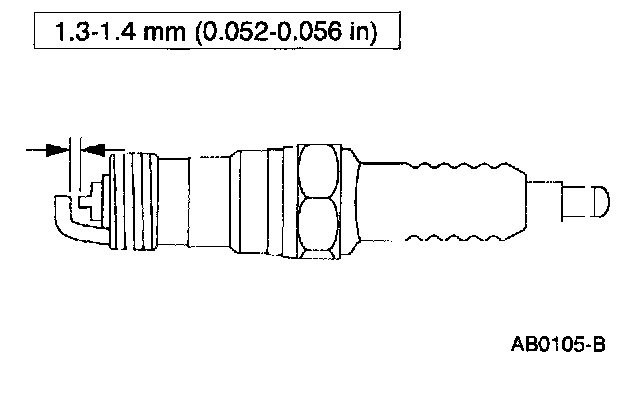

5. Adjust the spark plug gap as necessary.

INSTALLATION
1. To install, reverse the removal procedure.
