Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

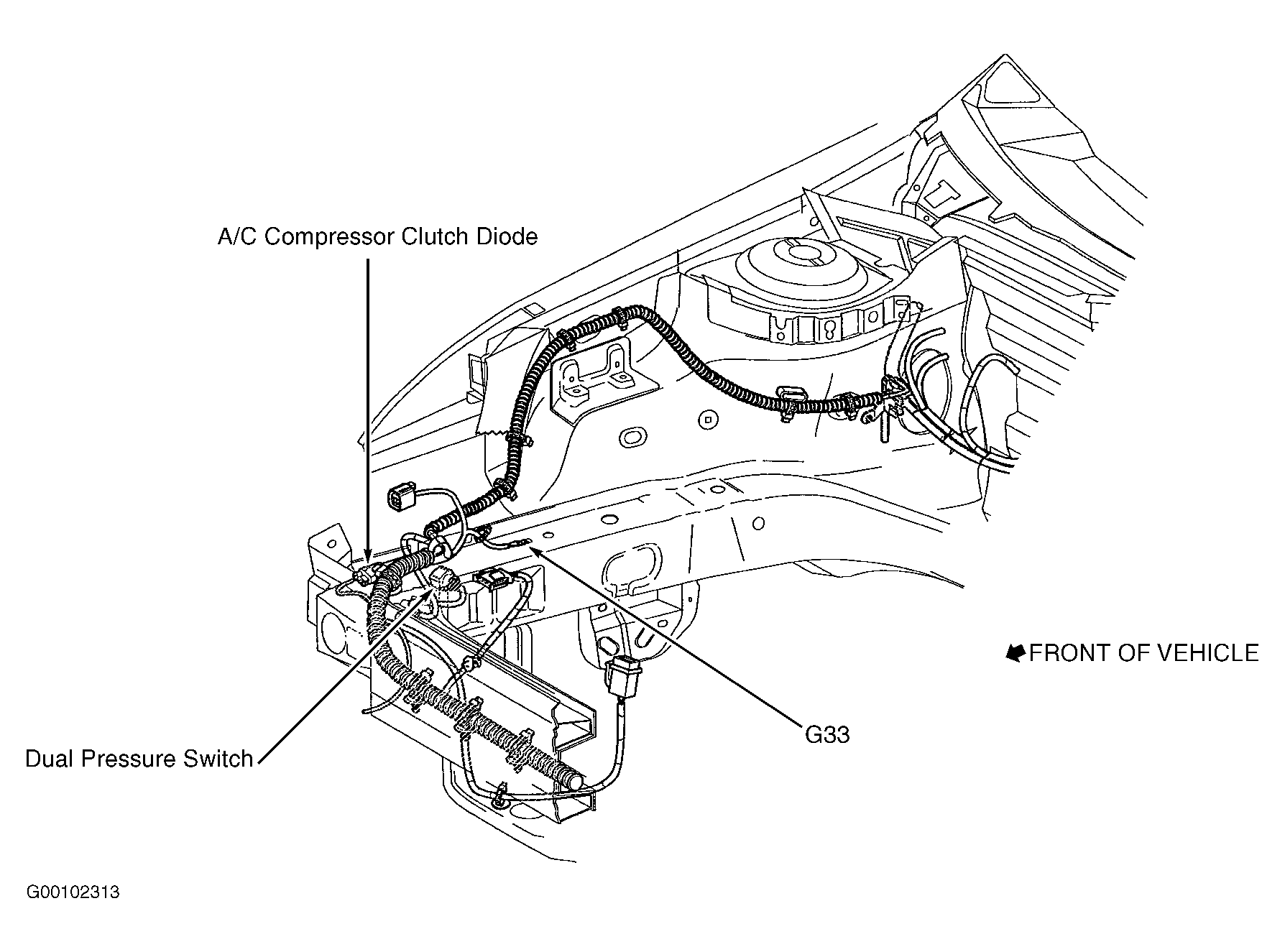

| A/C Compressor Clutch Diode | In right front corner of engine compartment. See Figure. |
| Battery Junction Box (BJB) | In left rear corner of engine compartment. See Figure. |
| central junction box | Behind left side of dash. |
| Cooling Fan Motor Diode | In battery junction box. |
| Diode | In battery junction box. |
