Intake Manifold: Installation

Download the full database via torrent (~1.1 TB)
  1. If required, install the new intake manifold gasket.
  2. Follow the removal procedure in reverse order.
    • Install the intake manifold.
    • Install the bolts and nuts.
    • Tighten the bolts and nuts in the sequence shown in Fig 1.

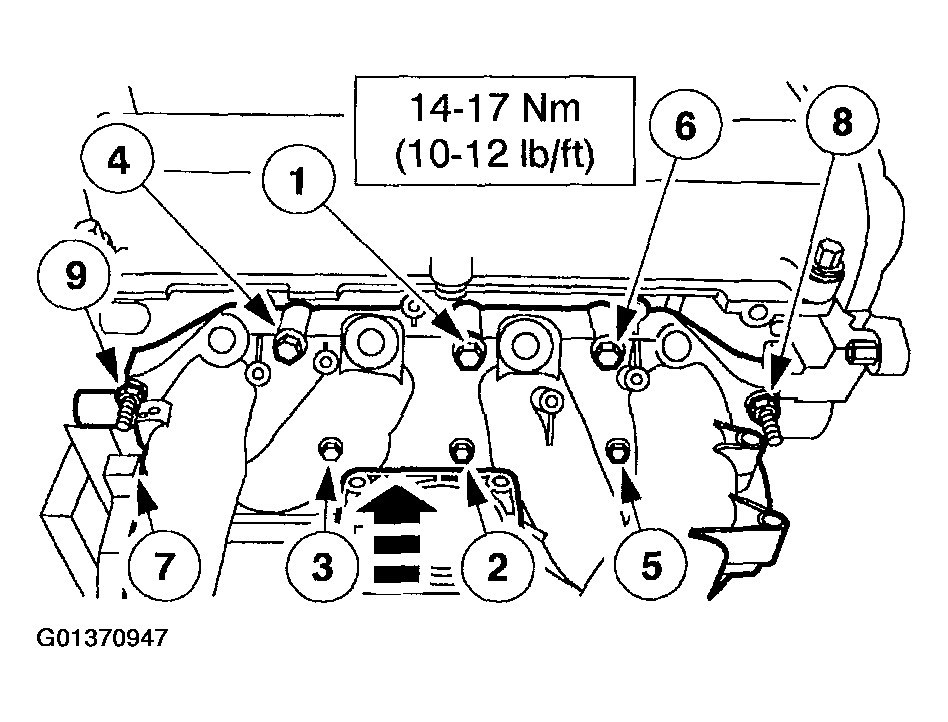

    Fig 1: Tightening Bolts And Nuts In Sequence
    G01370947Courtesy of FORD MOTOR CO.

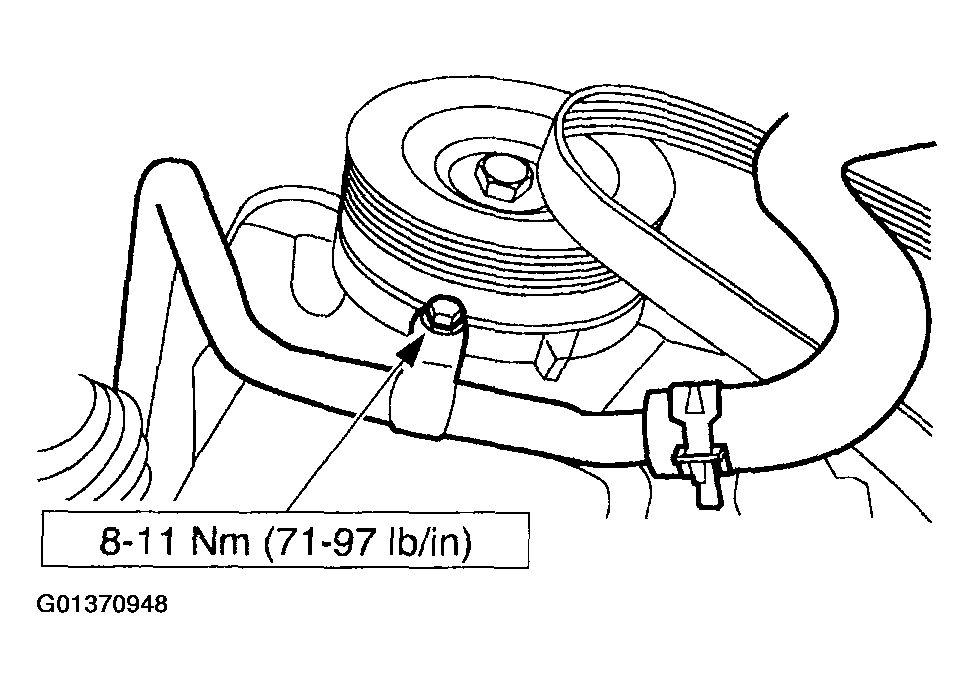

    Fig 2: Tightening Nut
    G01370948Courtesy of FORD MOTOR CO.
