Brad's Car Manuals
: A 3rd party mirror of CHARM + LEMON car manuals
Home
>>
Ford
>>
2003
>>
ZX2 Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Safety Belt System
>>
Specifications
>>
Torque Specifications
Torque Specifications
Download the full database via torrent (~1.1 TB)

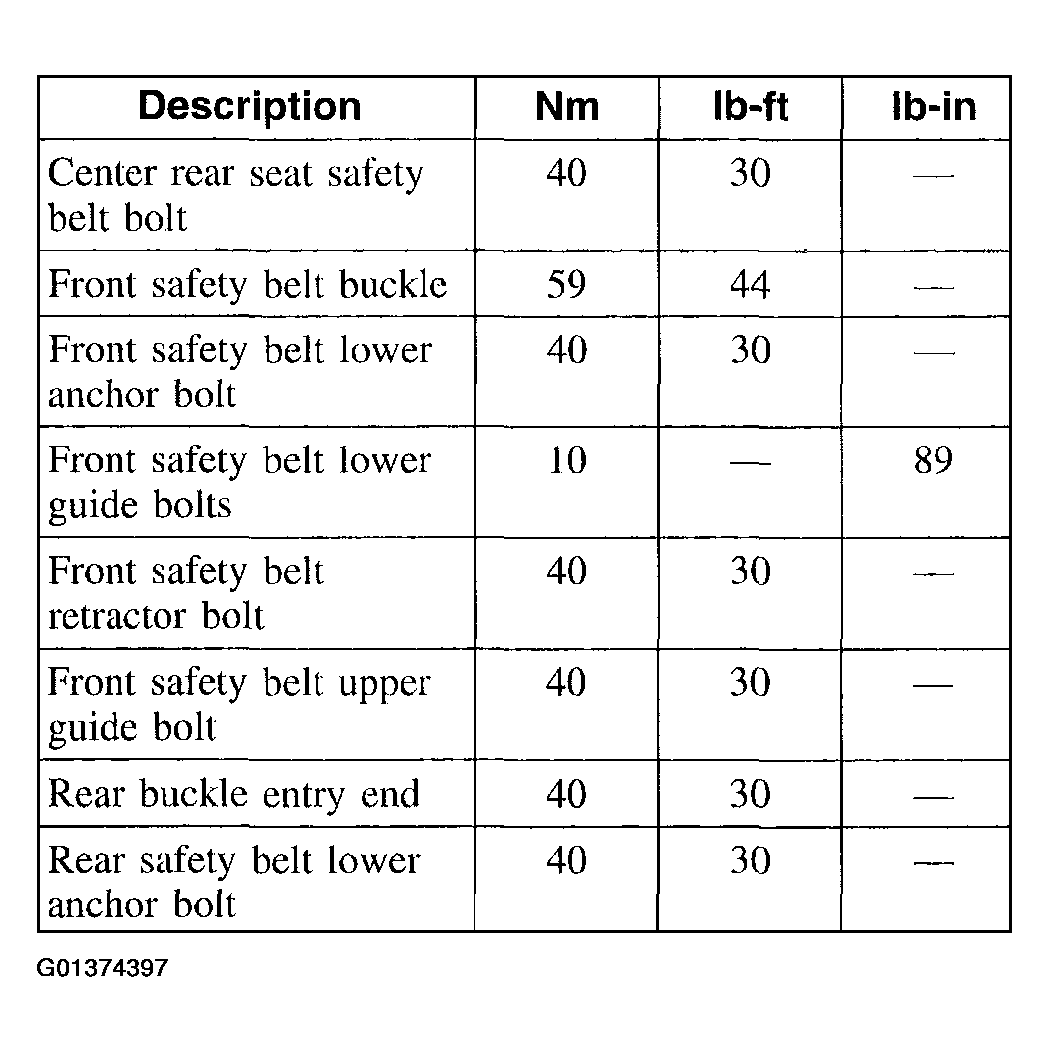

Fig 1: Safety Belt System Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.

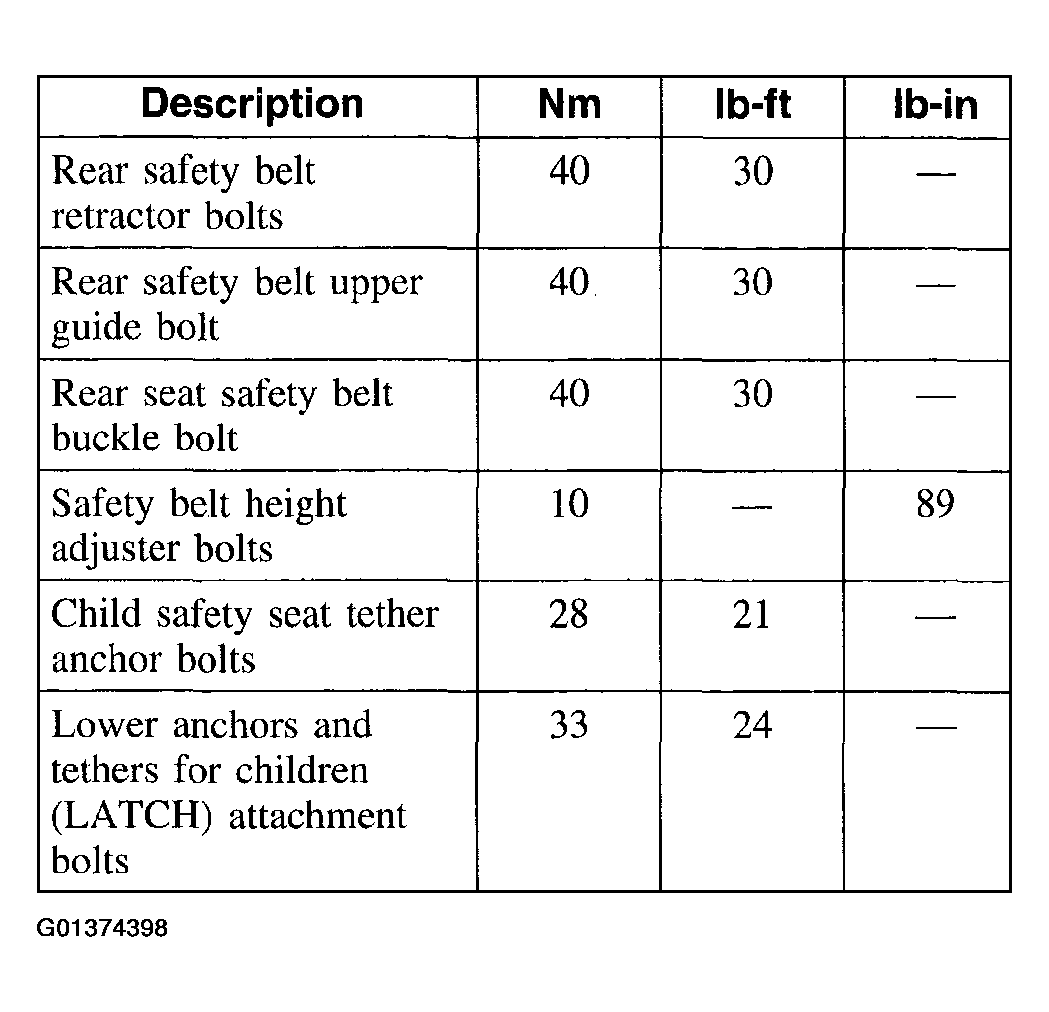

Fig 2: Safety Belt System Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
