Fluid Pump Assembly: Notes
Download the full database via torrent (~1.1 TB)

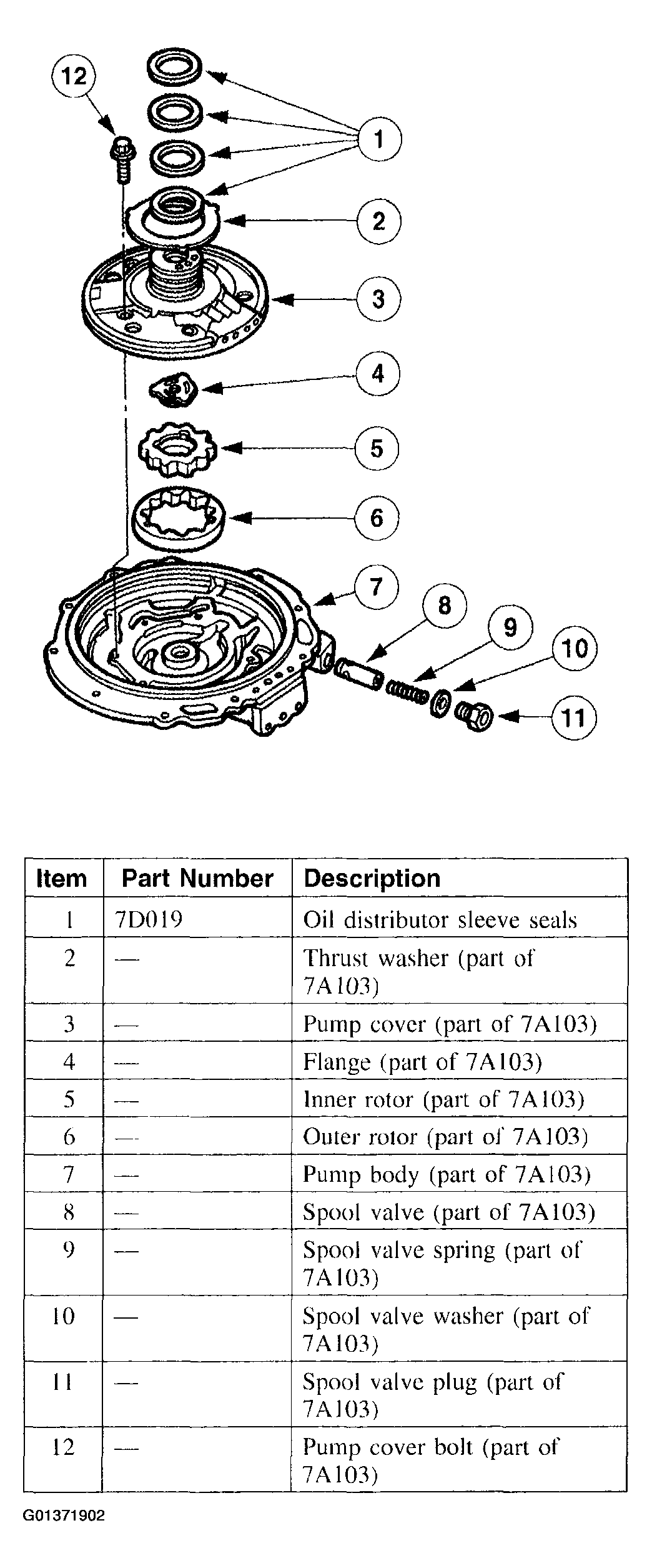

Fig 1: Exploded View Of Fluid Pump Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
