Automatic Transaxle/Transmission
>>
Disassembly And Assembly Of Subassemblies
>>
Main Control Valve Body
>>
Notes
Main Control Valve Body: Notes
Download the full database via torrent (~1.1 TB)

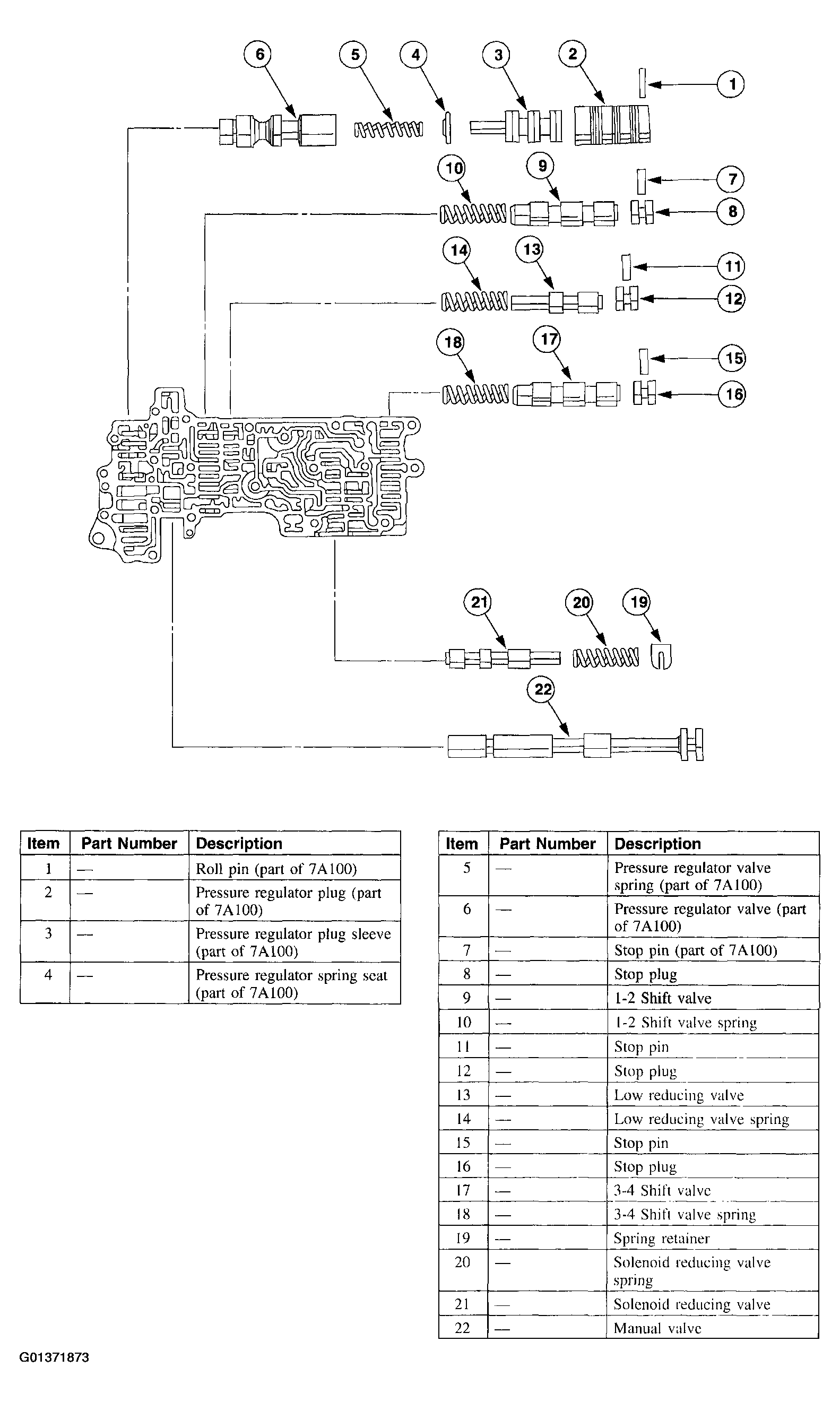

Fig 1: Disassembled View Of Main Control Valve Body
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
