Brad's Car Manuals
: A 3rd party mirror of CHARM + LEMON car manuals
Home
>>
Ford
>>
2003
>>
ZX2 Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle/Transmission
>>
Specifications
>>
General Specifications
>>
Line Pressure Specification Chart
Line Pressure Specification Chart
Download the full database via torrent (~1.1 TB)

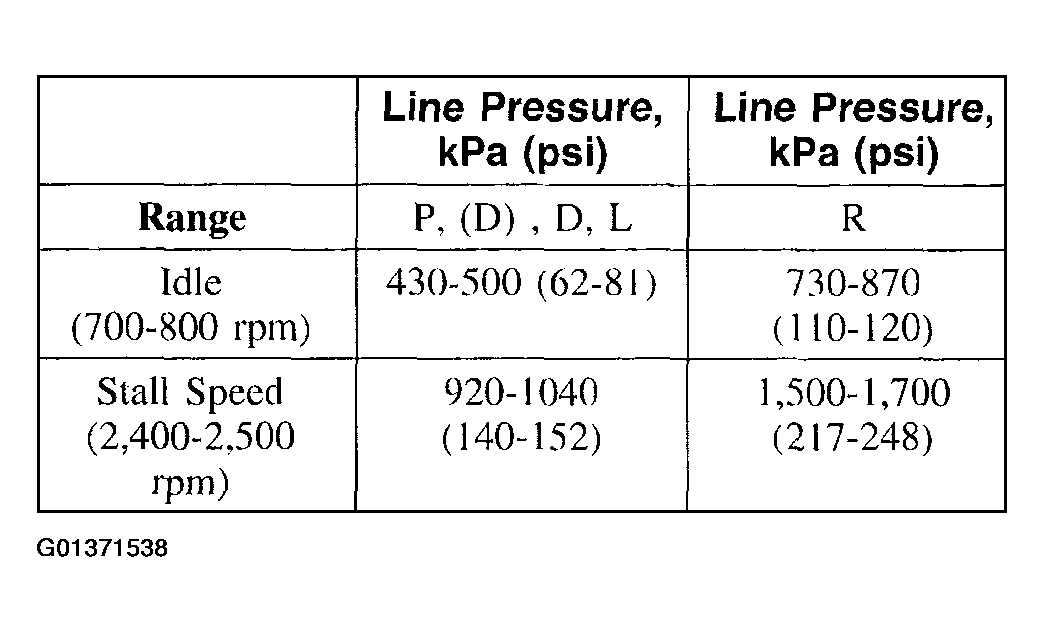

Fig 1: Line Pressure Specification Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
