Accelerator Control System Components - Exploded View
Accelerator Control System Components - Exploded View
Download the full database via torrent (~1.1 TB)

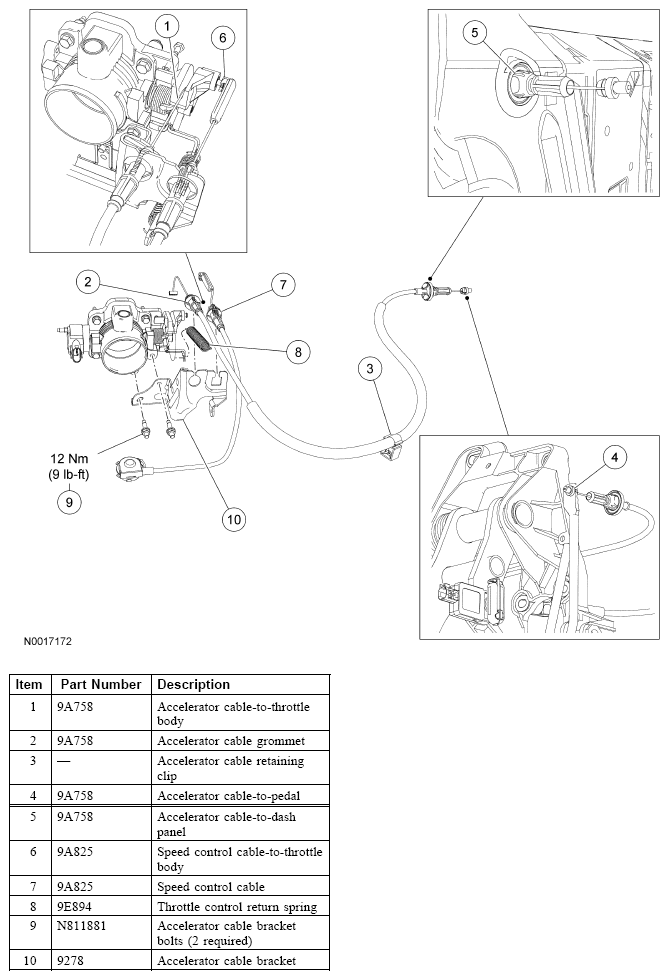

Fig 1: Exploded View Of Accelerator Control System Components
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
Courtesy of FORD MOTOR CO.
