Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

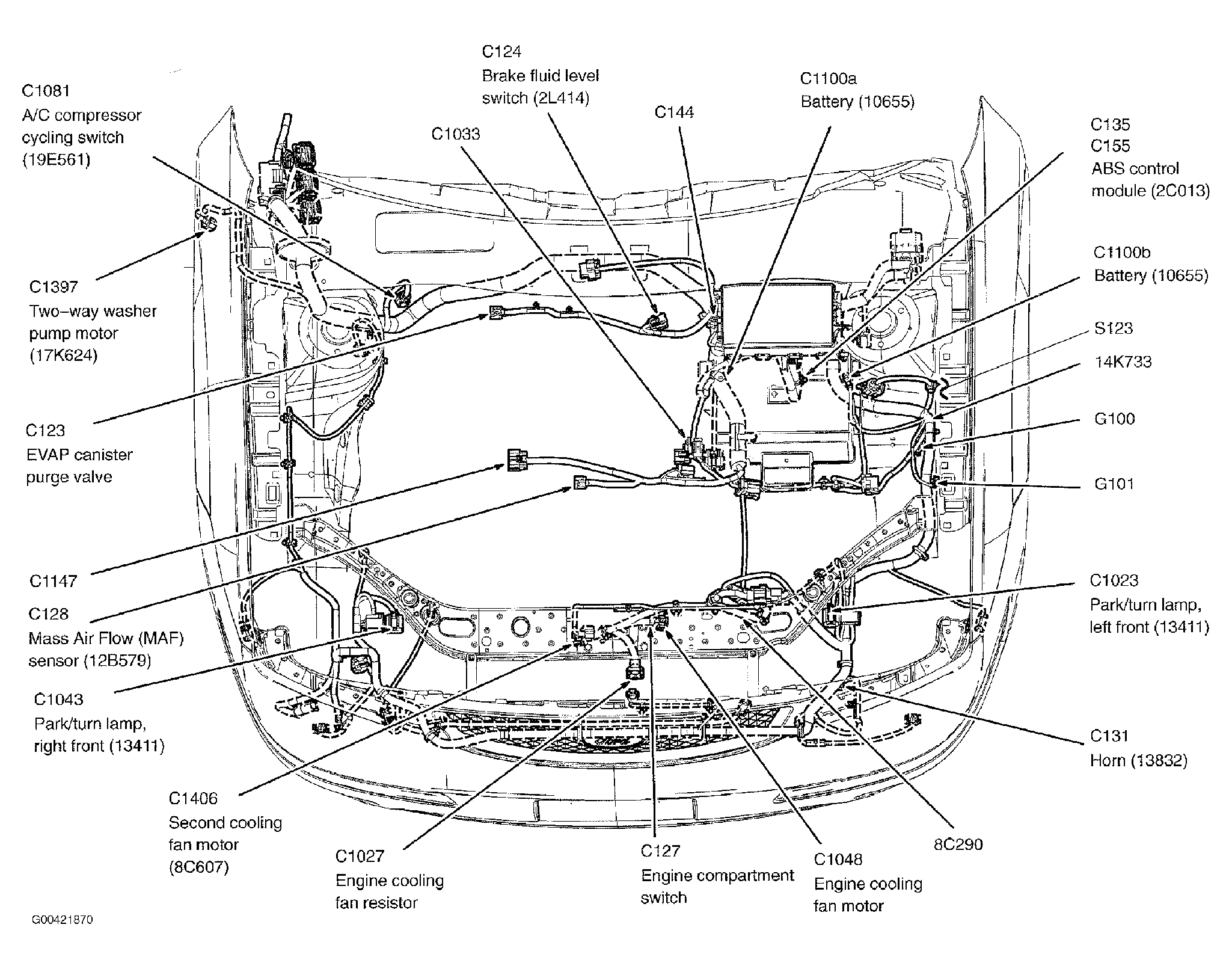

| ABS Control Module | Left rear corner of engine compartment, under master cylinder. See Figure. |

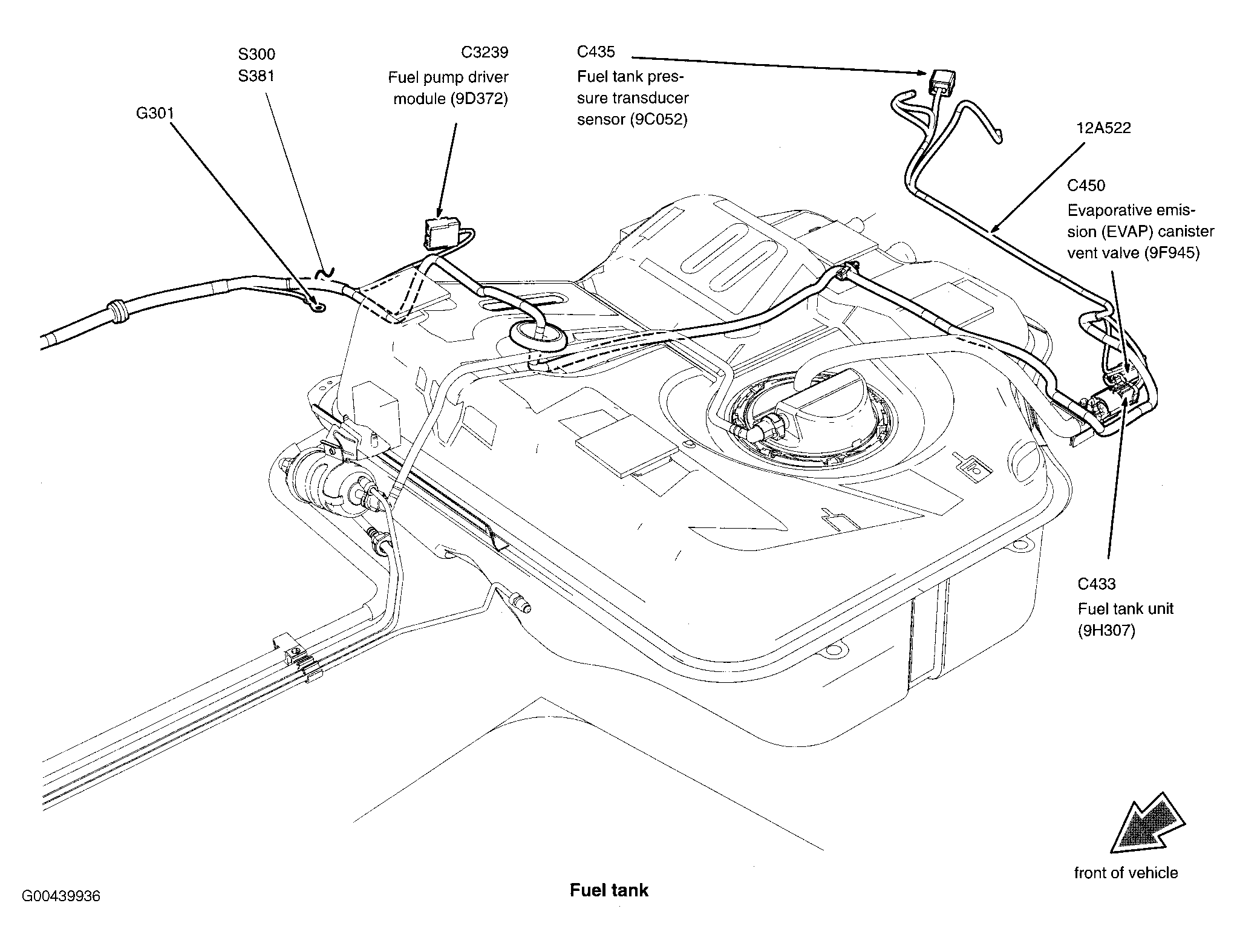

| Fuel Pump Driver Module | Under right rear seat. See Figure. |

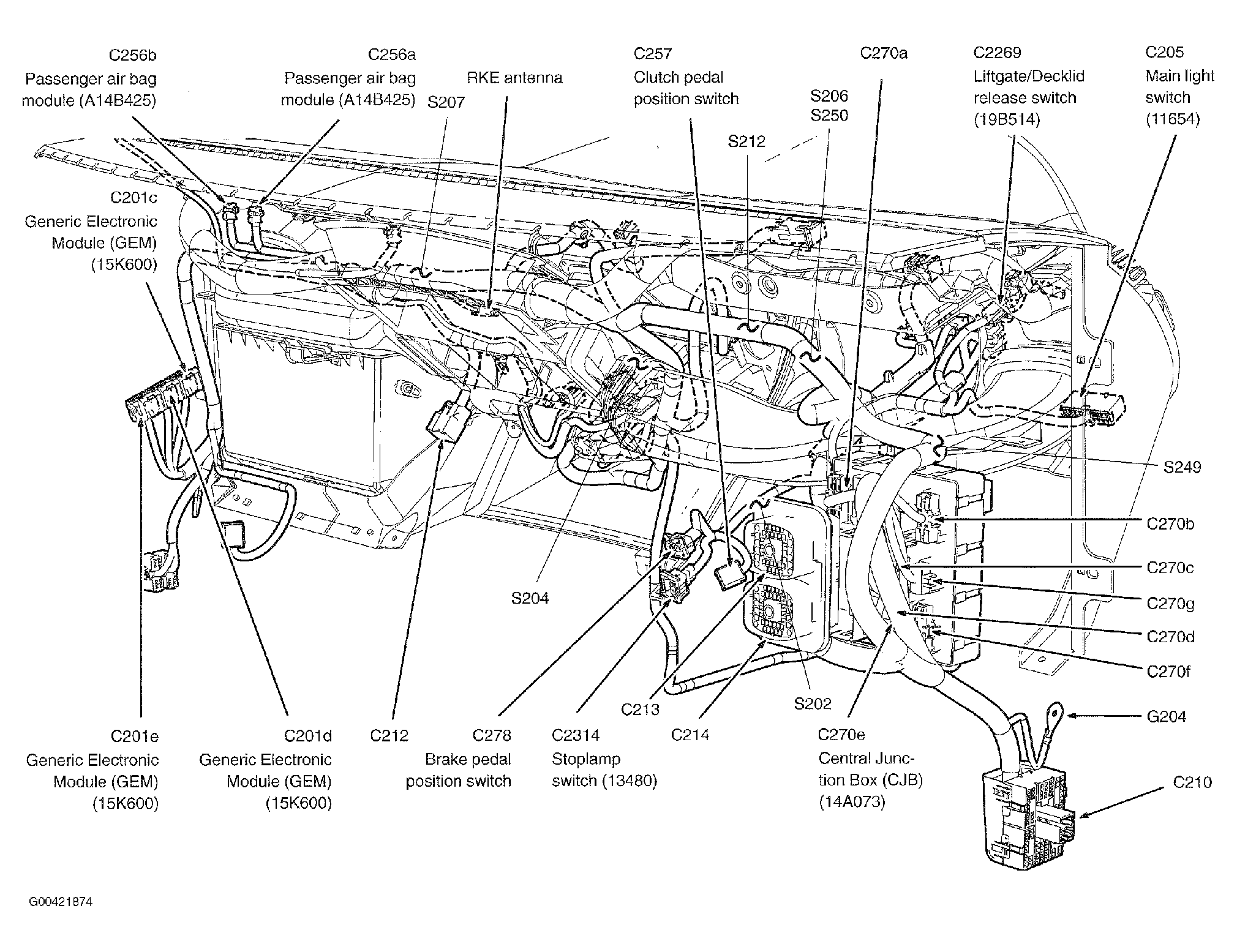

| Generic Electronic Module (GEM) | On right "A" pillar. See Figure. |

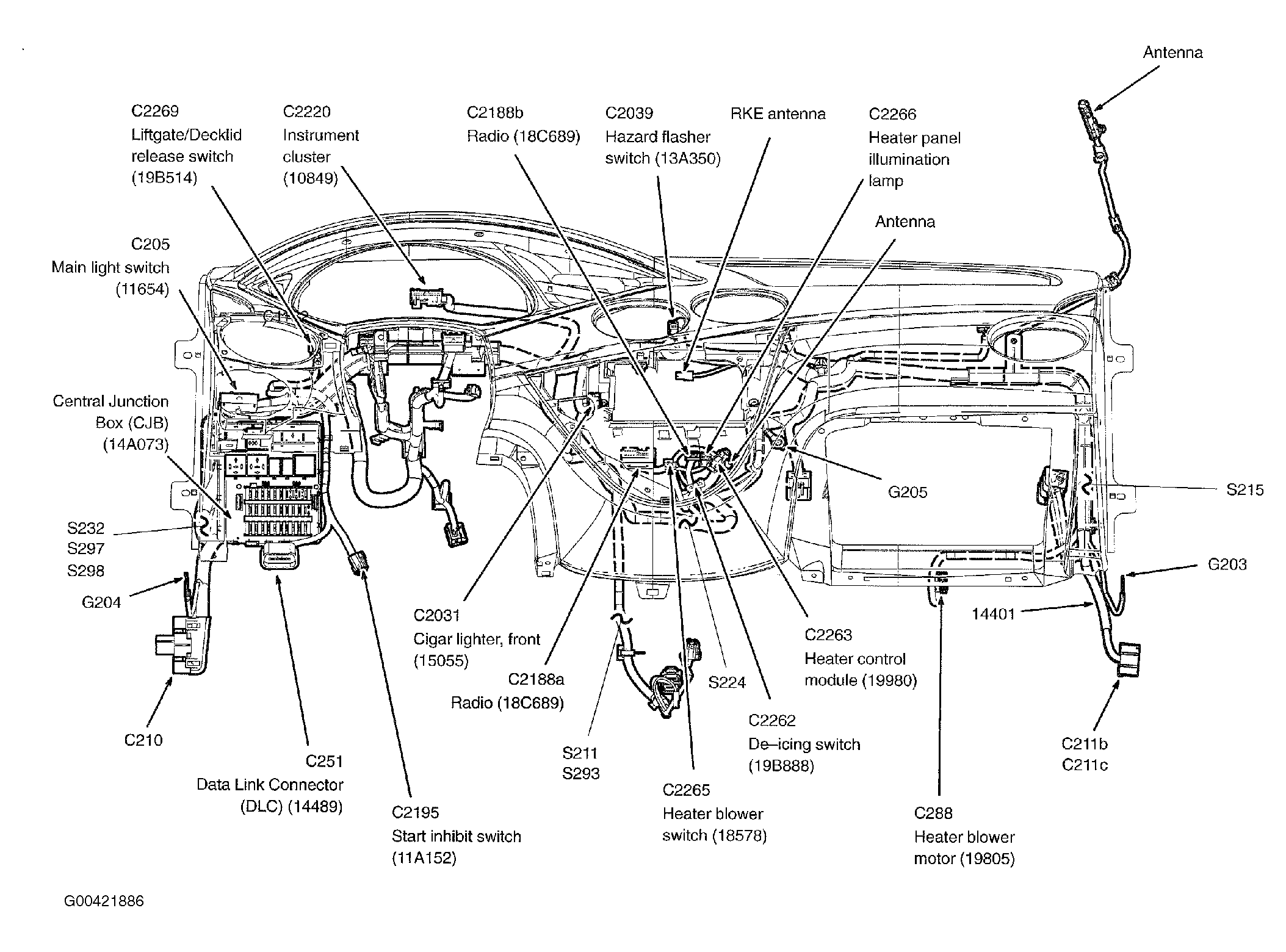

| Heater Control Module | Behind dash. See Figure. |

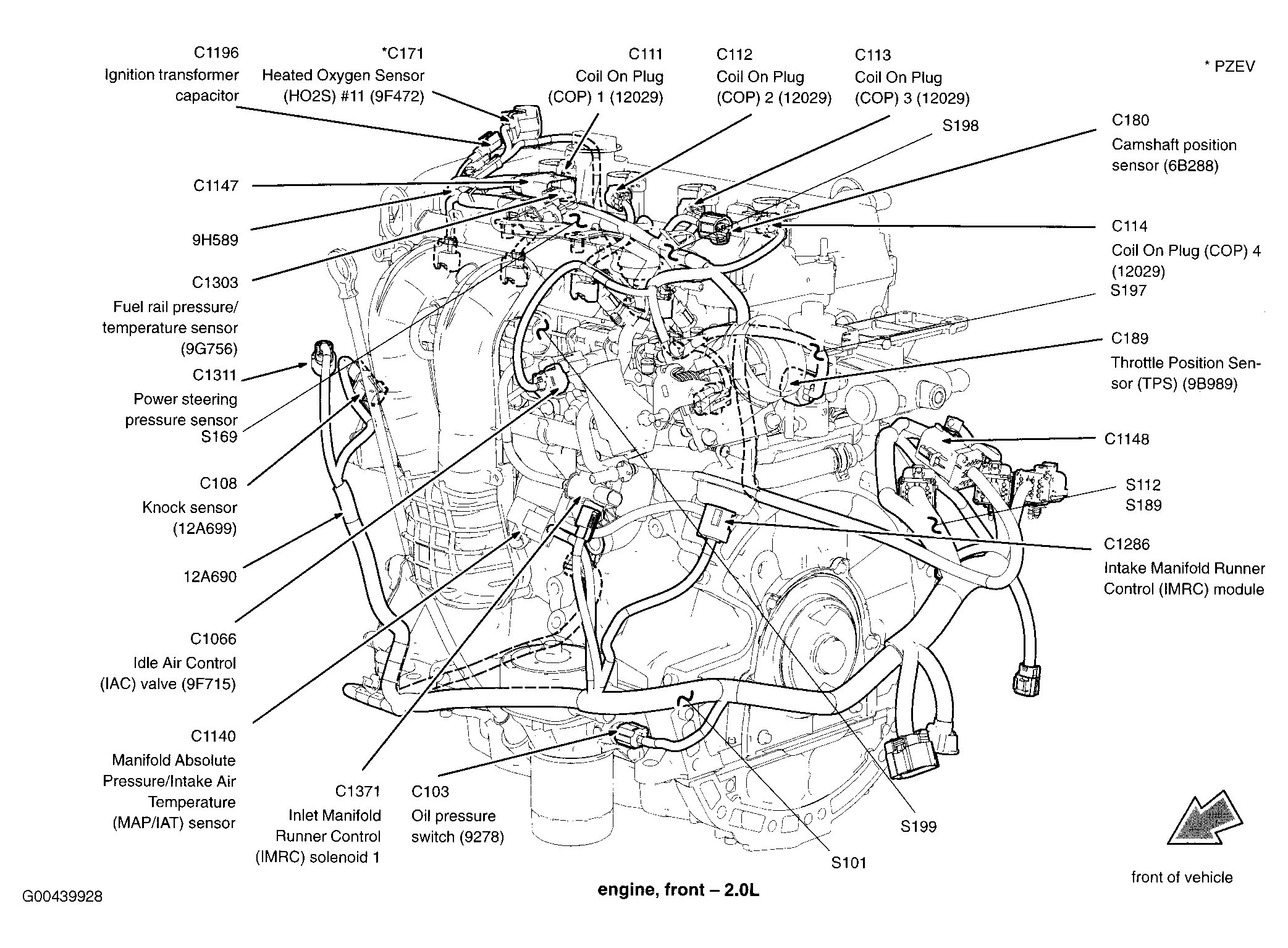

| Intake Manifold Runner Control (IMRC) Module (2.0L) | Left rear of engine. See Figure. |

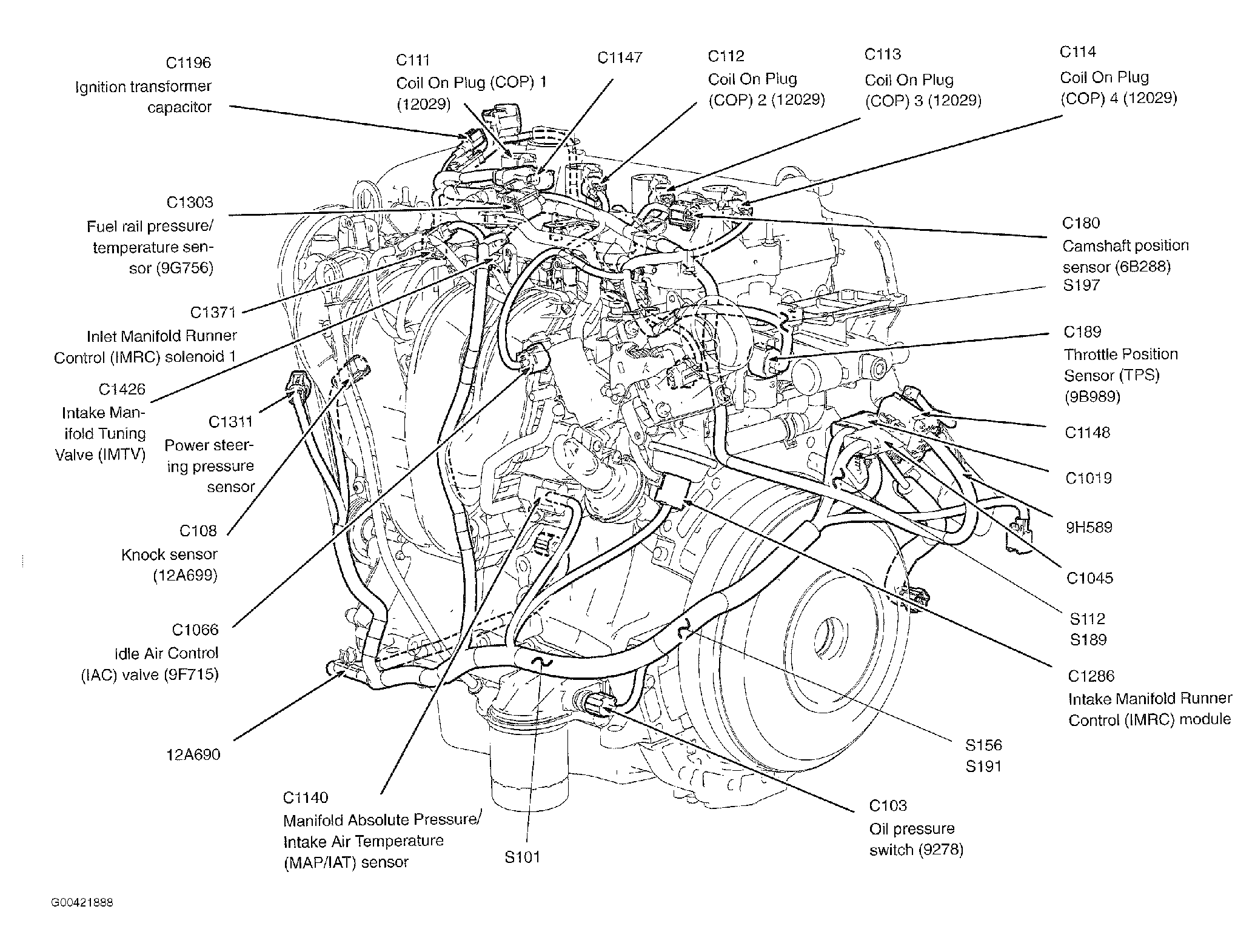

| Intake Manifold Runner Control (IMRC) Module (2.3L) | Left rear of engine. See Figure. |

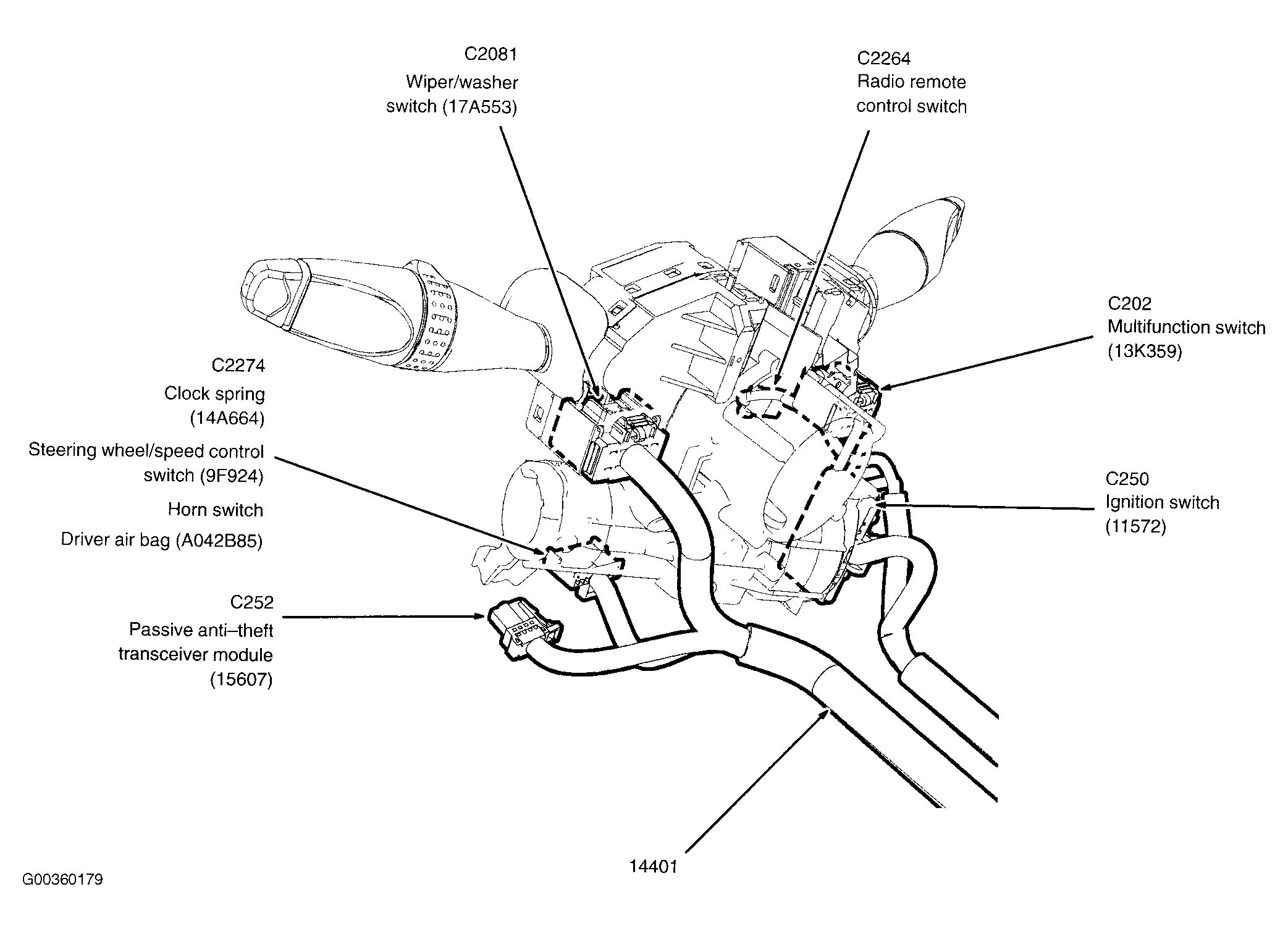

| Passive Anti-Theft Transceiver Module | On upper right side of steering column. See Figure. |

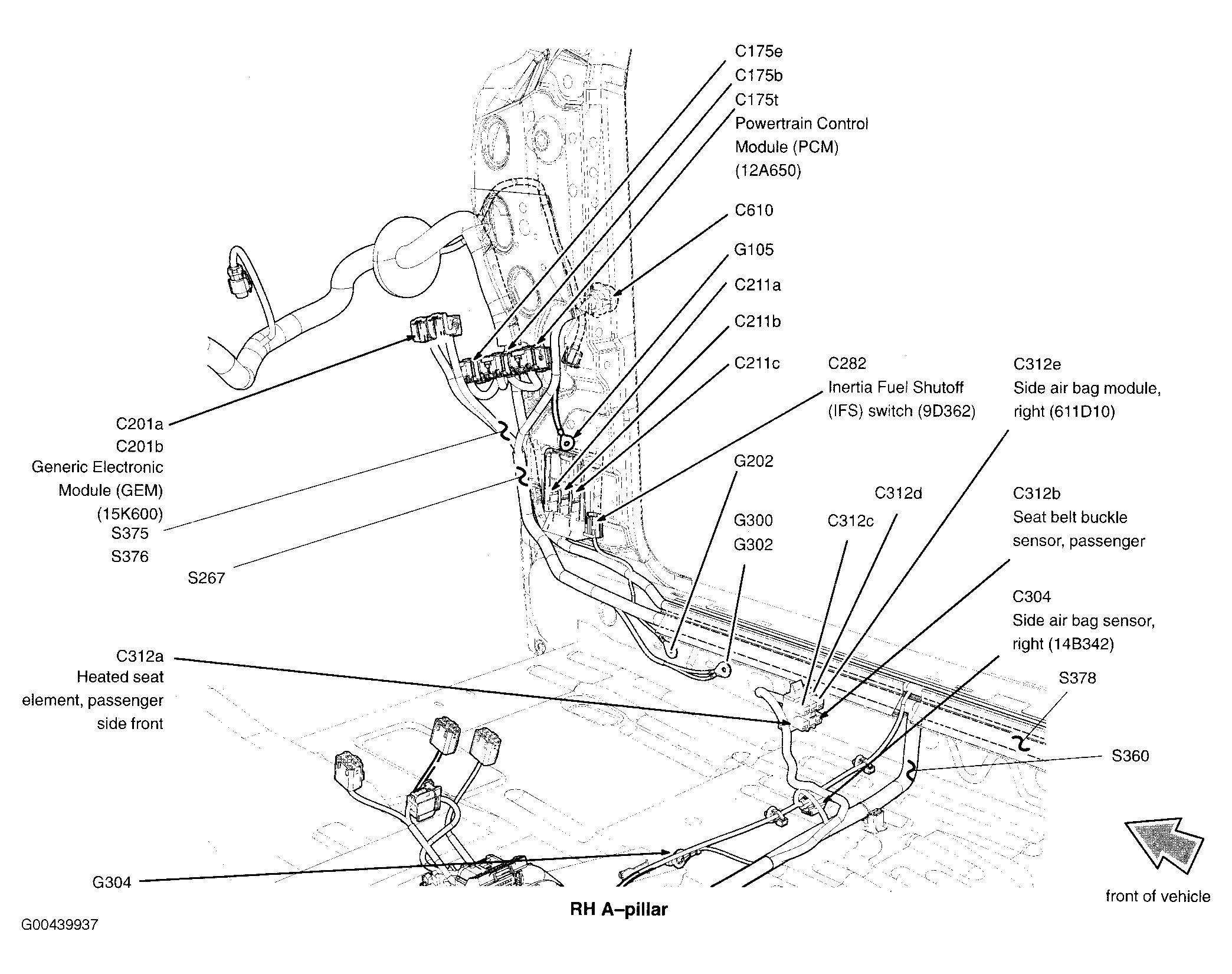

| Powertrain Control Module (PCM) | Behind right side of dash, at base of "A" pillar. See Figure. |

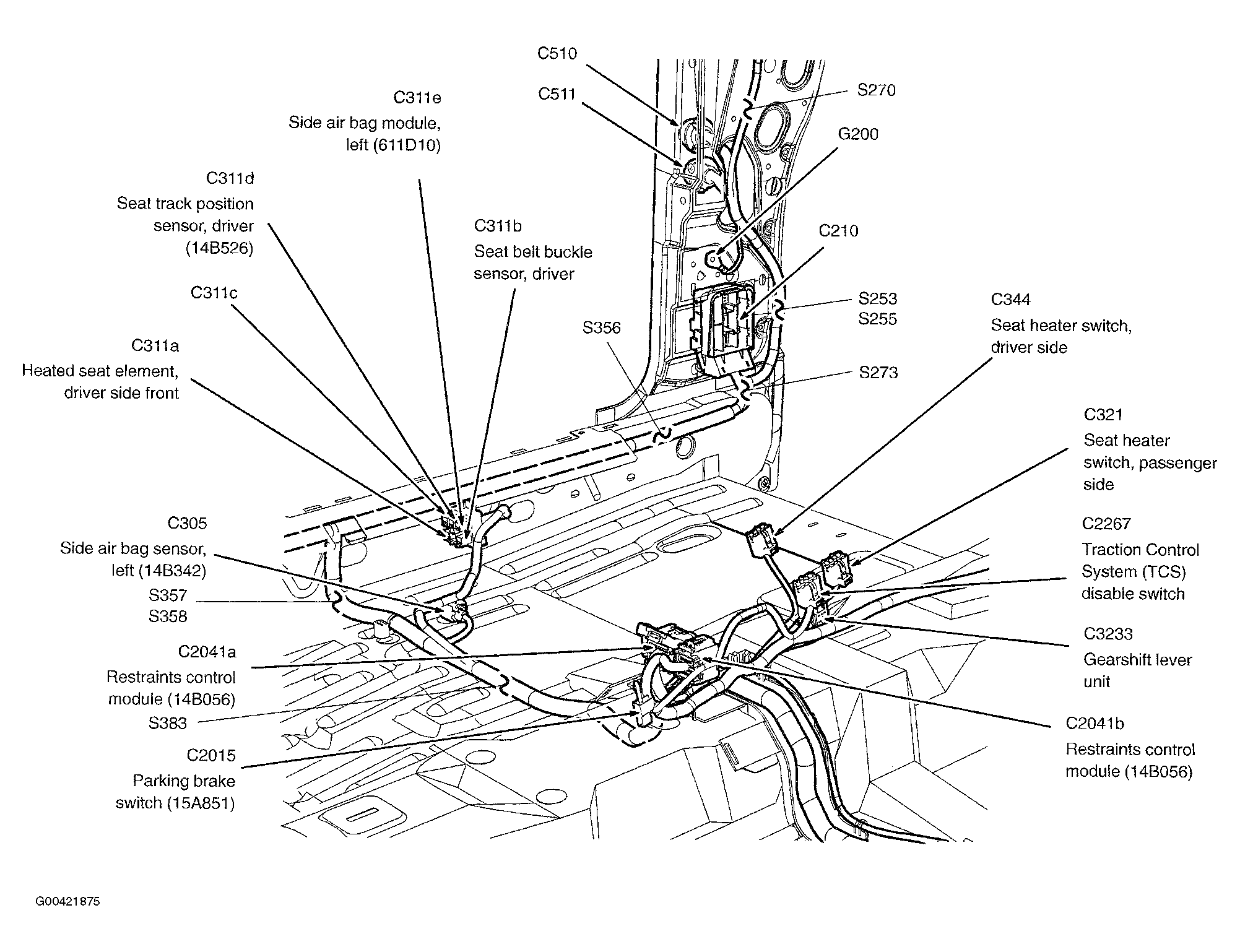

| Restraints Control Module | Under center console. See Figure. |
| Roof Opening Panel Unit (Wagon Shown) | Center front of roof. See Figure. |

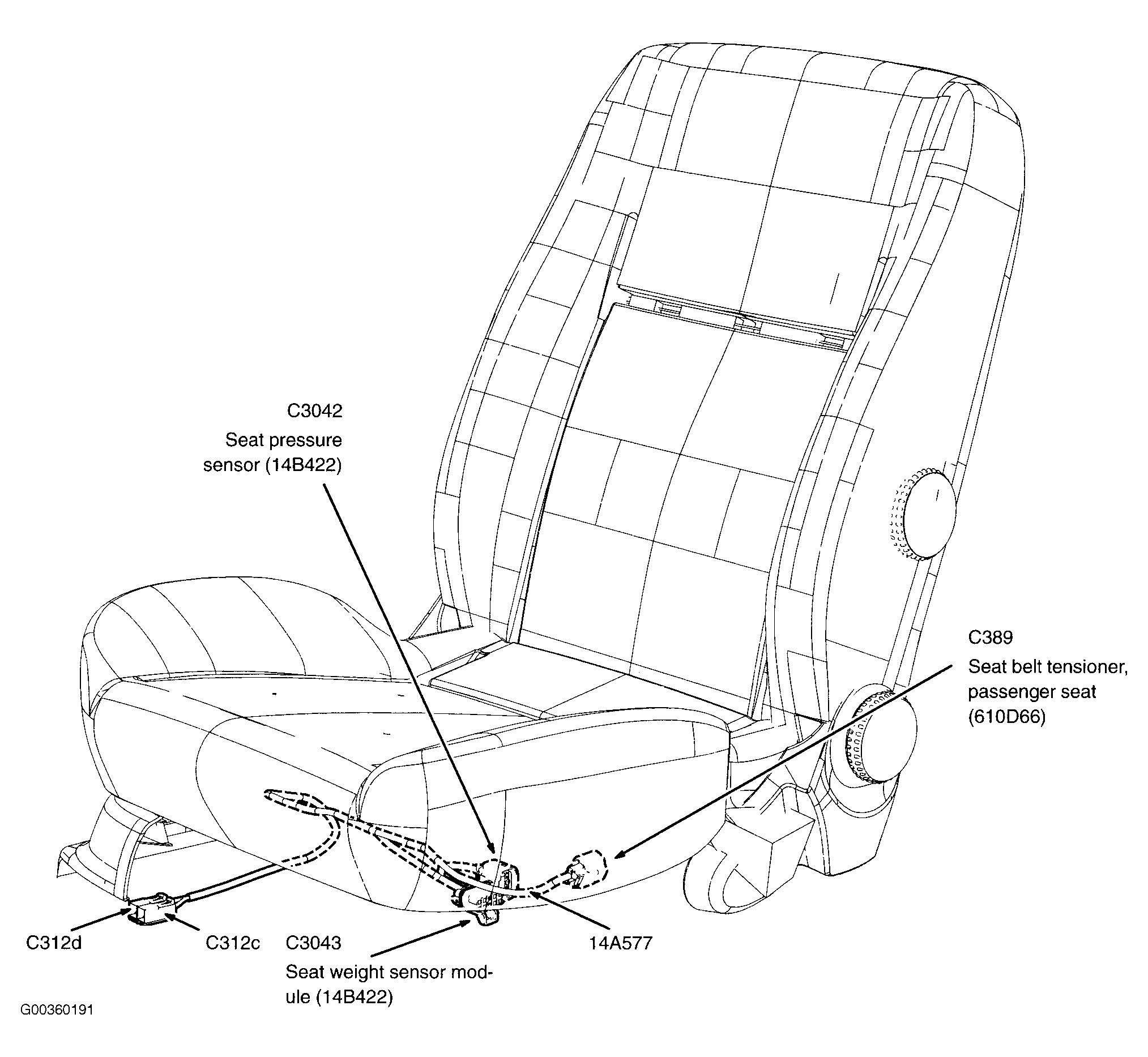

| Seat Weight Sensor Module | Under passenger's seat. See Figure. |
