Home >> Ford >> 2011 >> Edge FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> C2280C Body Control Module (BCM)

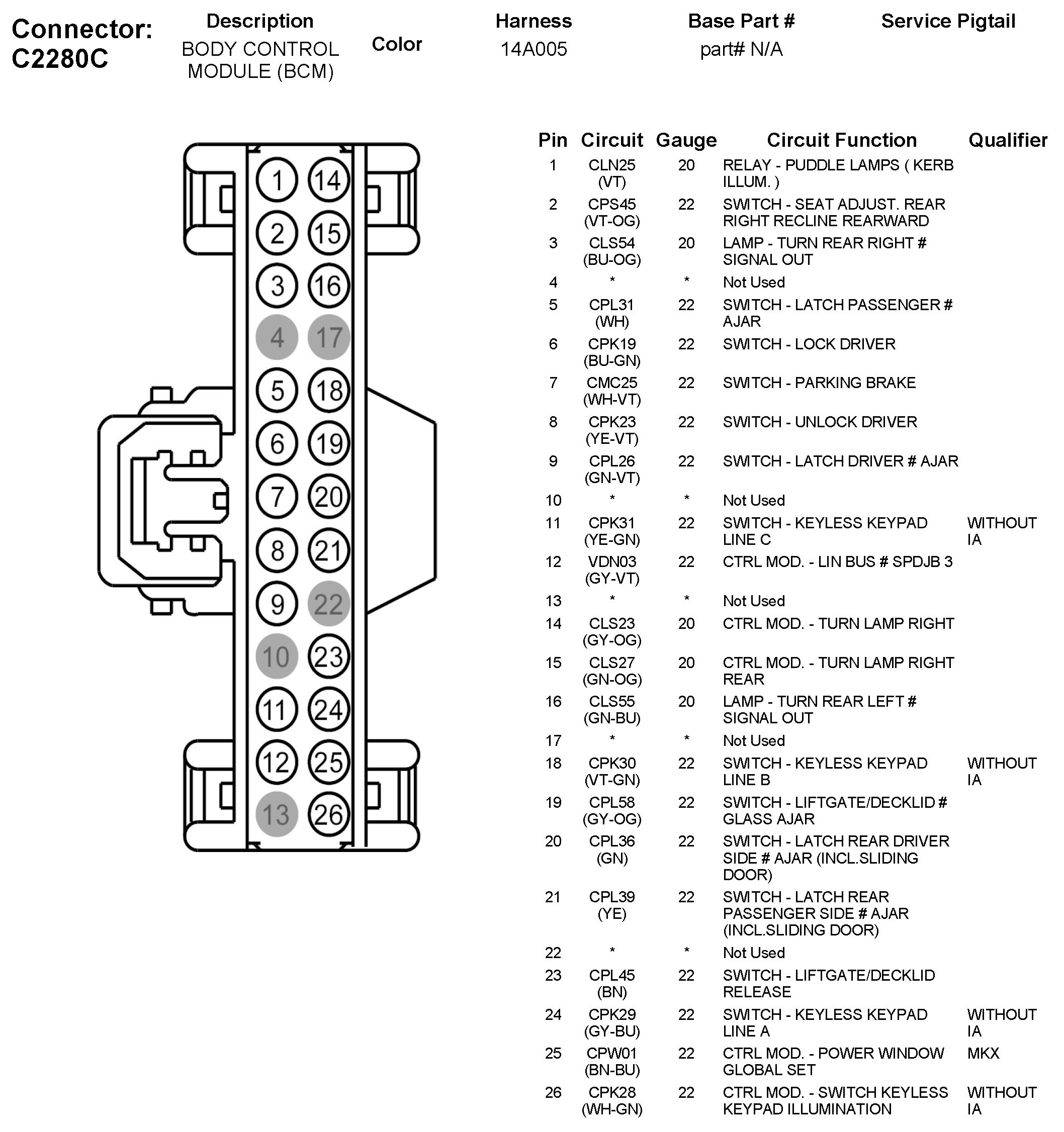

C2280C Body Control Module (BCM)
