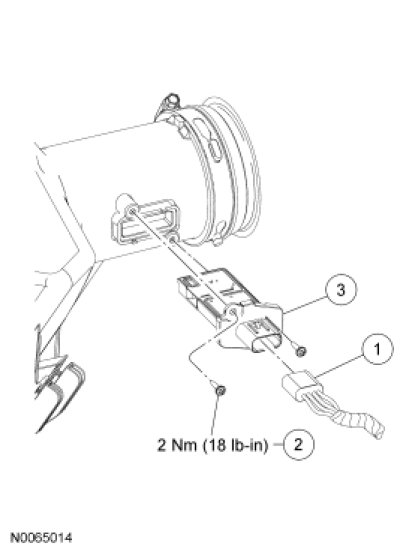

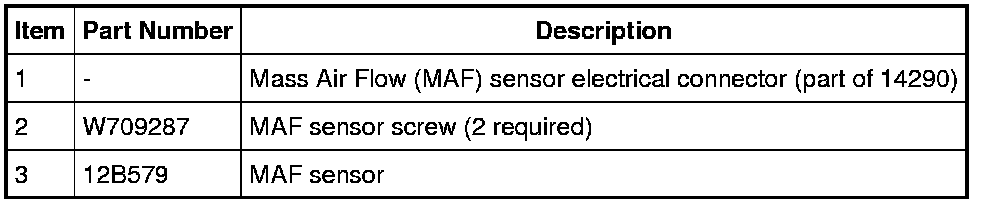

Engine Control Components - Exploded View

Mass Air Flow (MAF) Sensor

Removal and Installation

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
