Utility Storage Compartment

Download the full database via torrent (~1.1 TB)



Instrument Panel - Exploded View

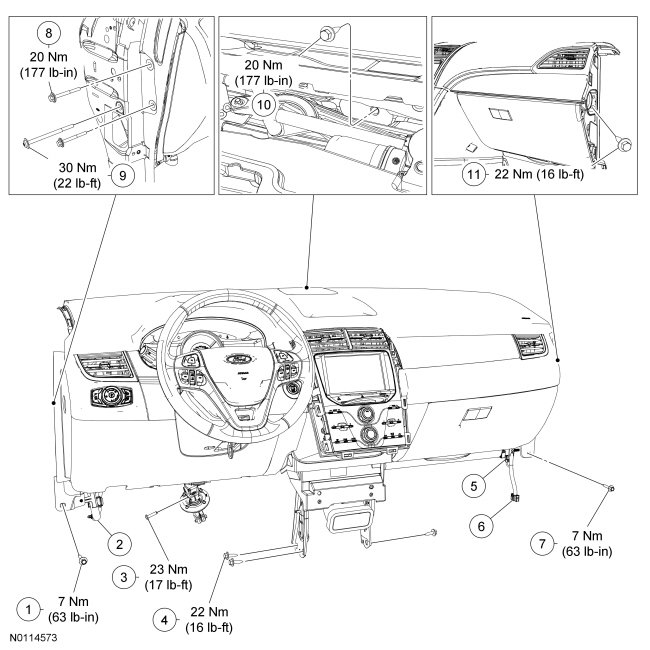

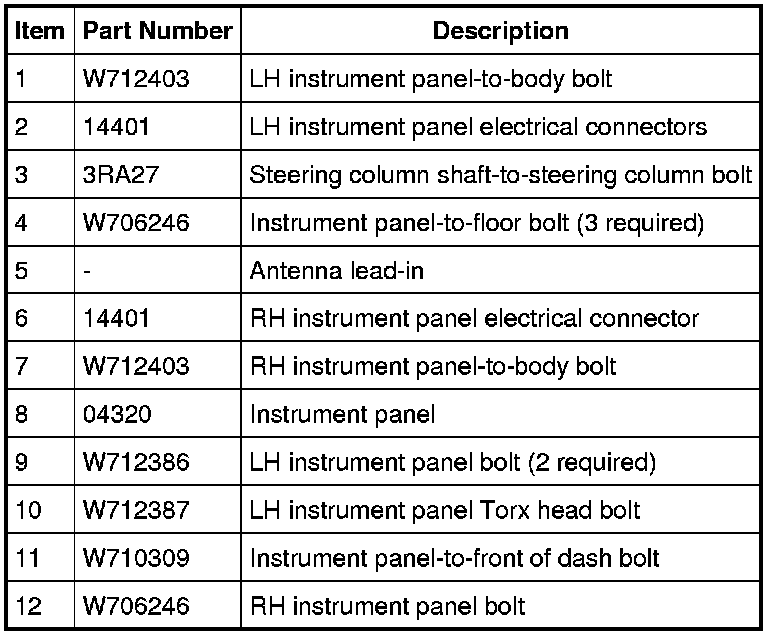

Edge Instrument Panel

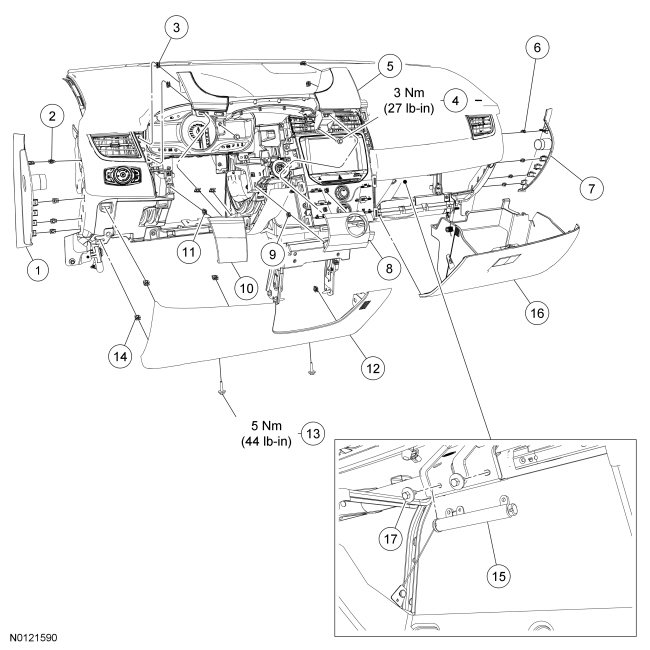

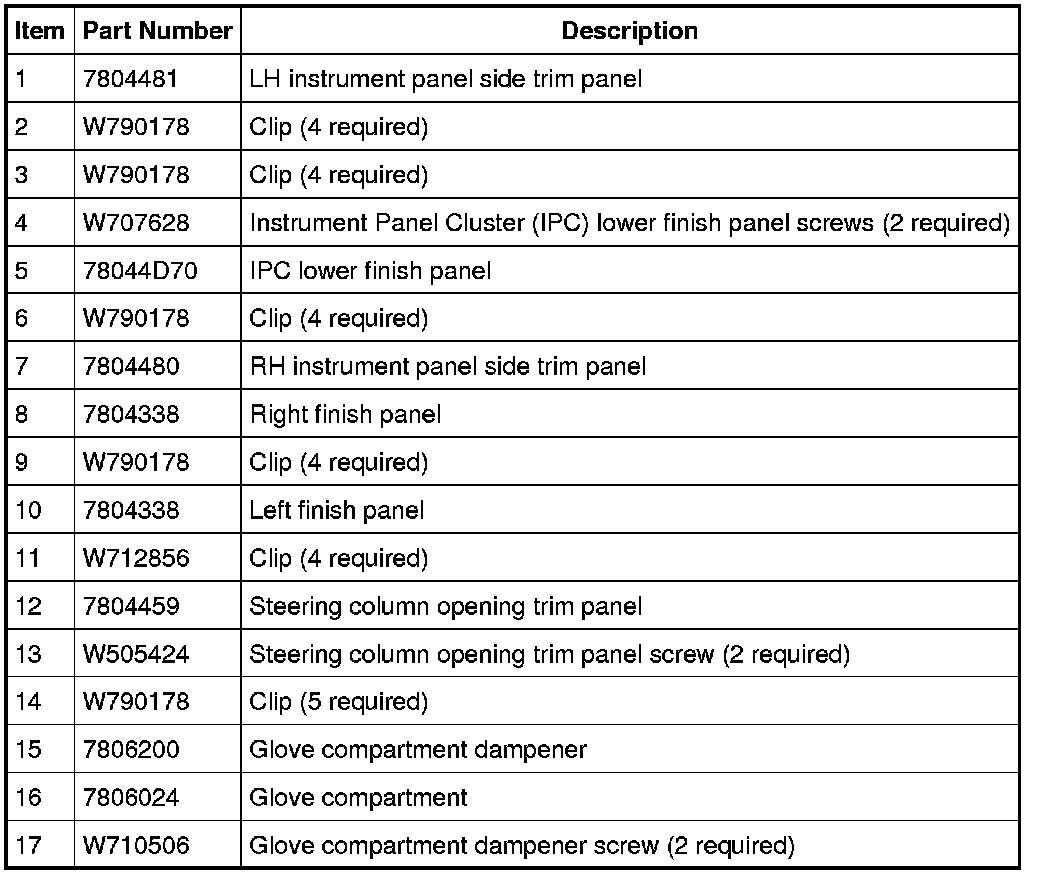

Edge Instrument Panel Fasteners

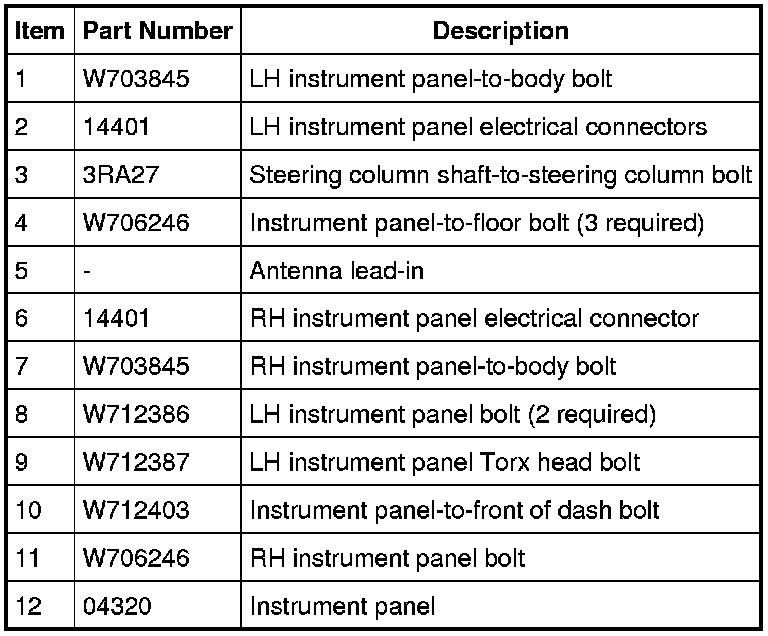

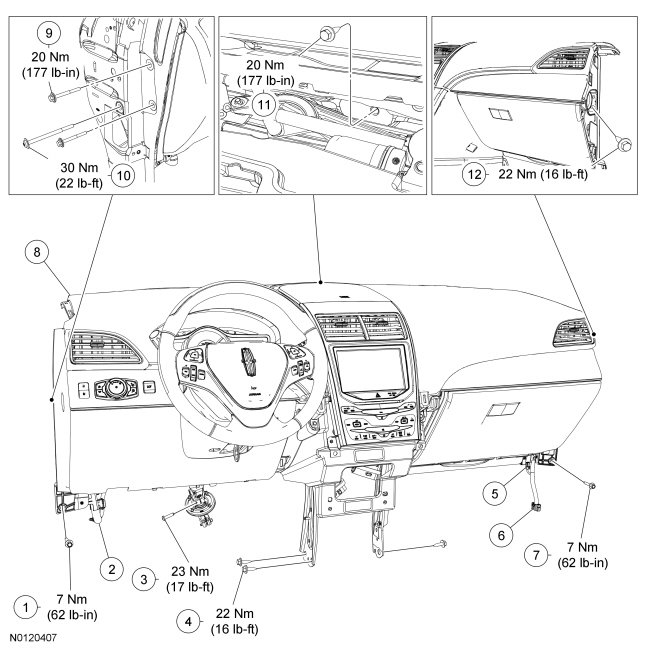

MKX Instrument Panel

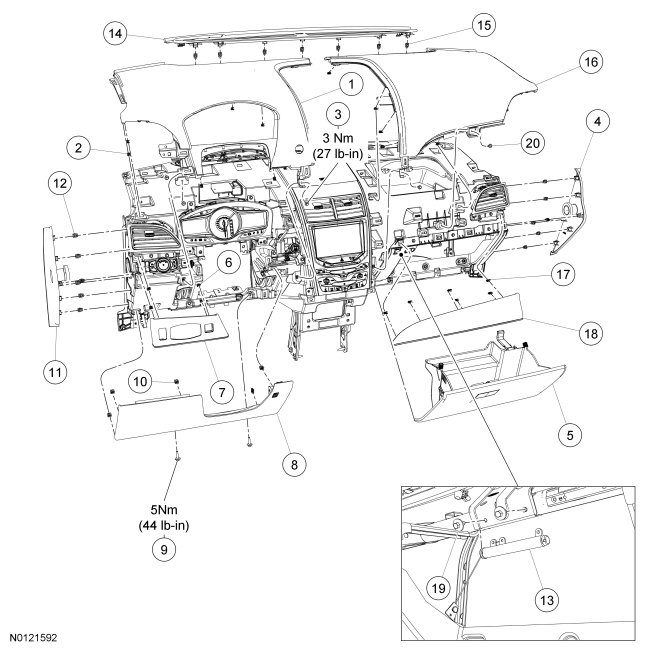

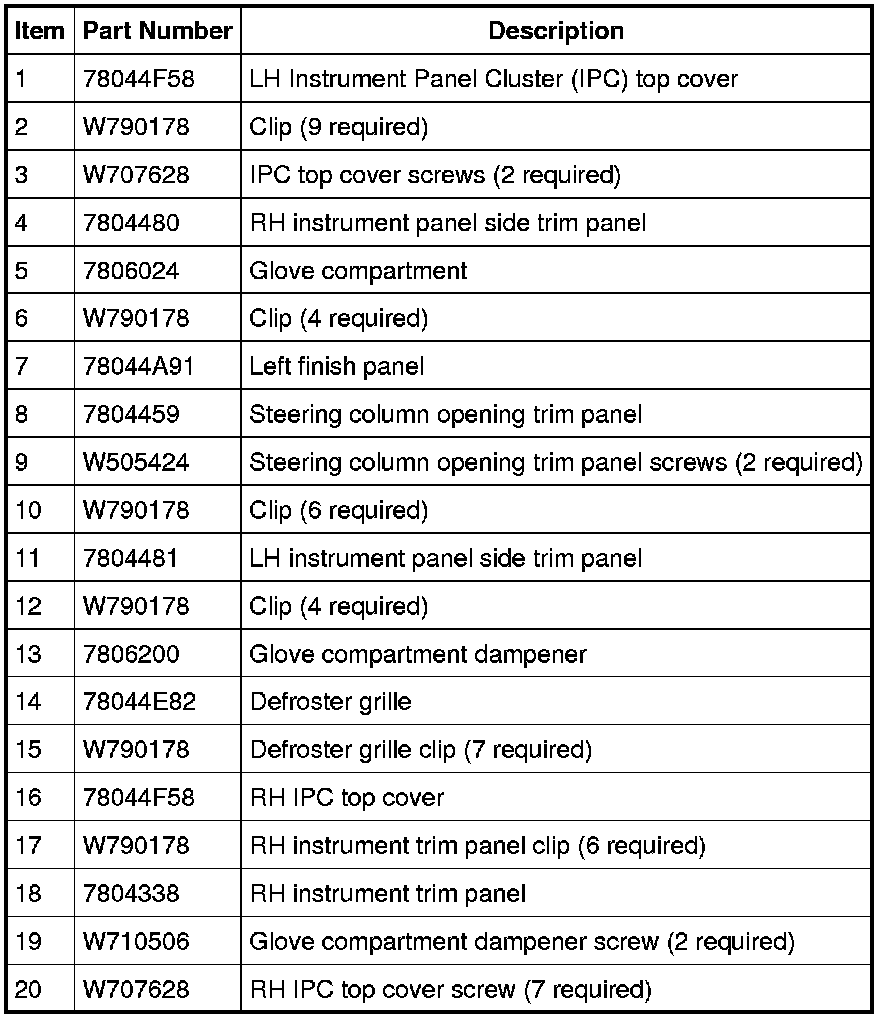

MKX Instrument Panel Fasteners
