Brad's Car Manuals
: A 3rd party mirror of CHARM + LEMON car manuals
Home
>>
Ford
>>
2011
>>
Escape 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

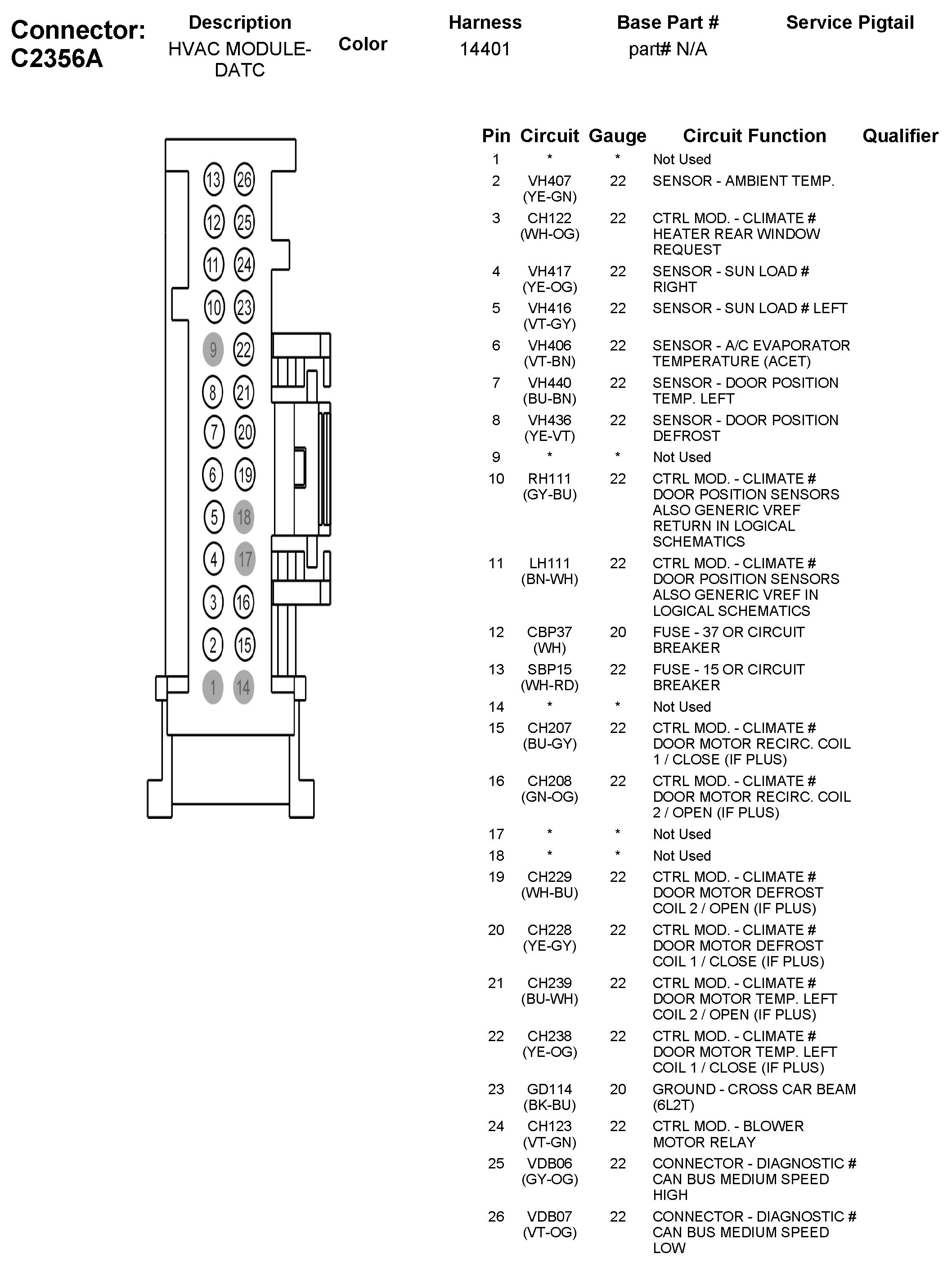

C2356A HVAC Module-DATC
C2356A HVAC Module-DATC
