Front Disc Brake
Download the full database via torrent (~1.1 TB)
Disc Brake System

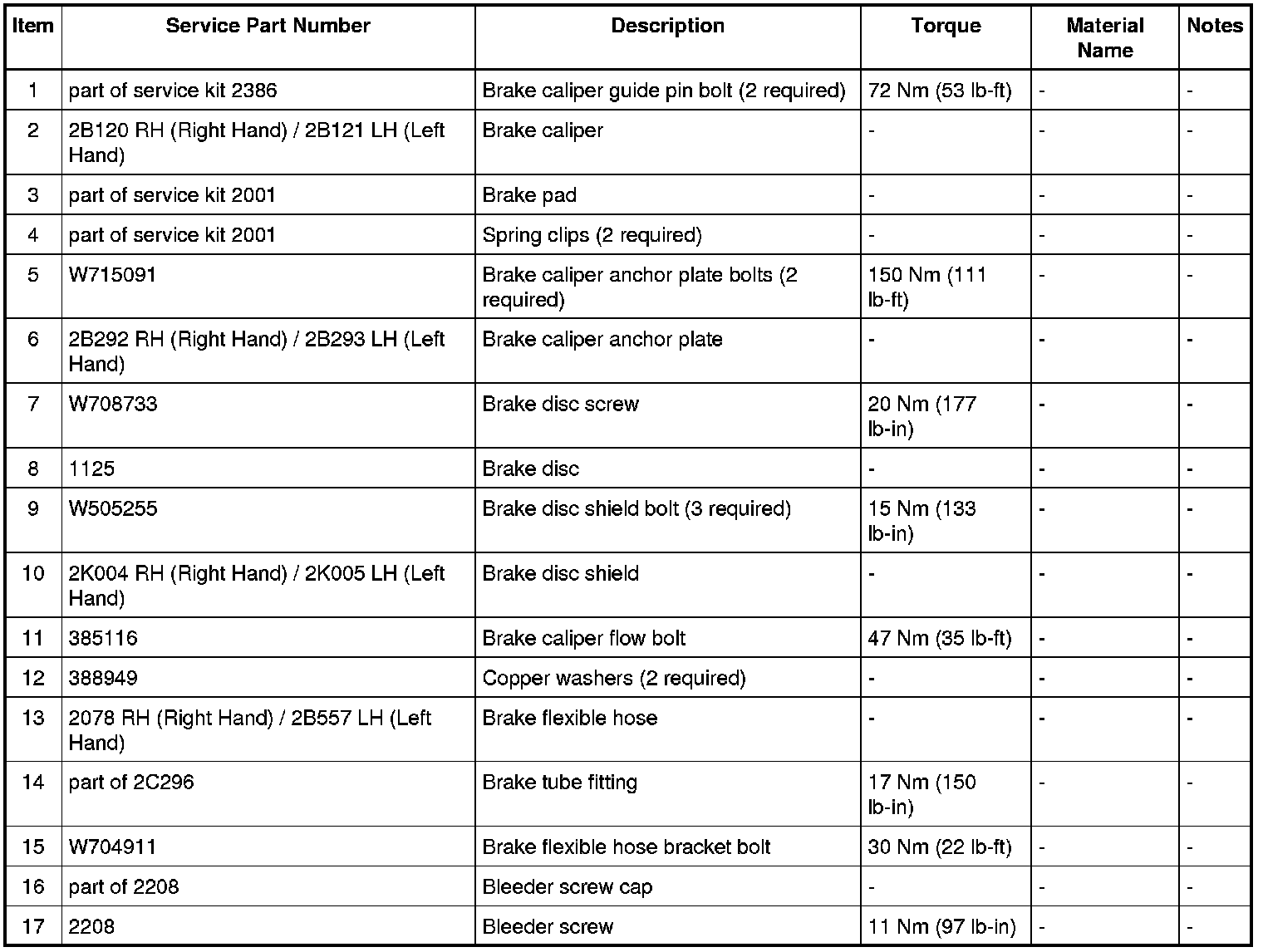

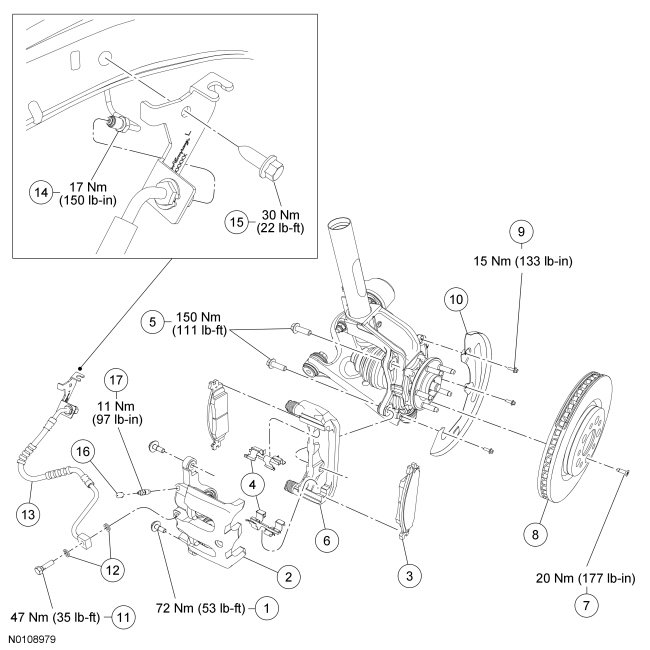

- Exploded View
Exploded View
