Oil Filter, Engine
Oil Filter, Engine
Download the full database via torrent (~1.1 TB)

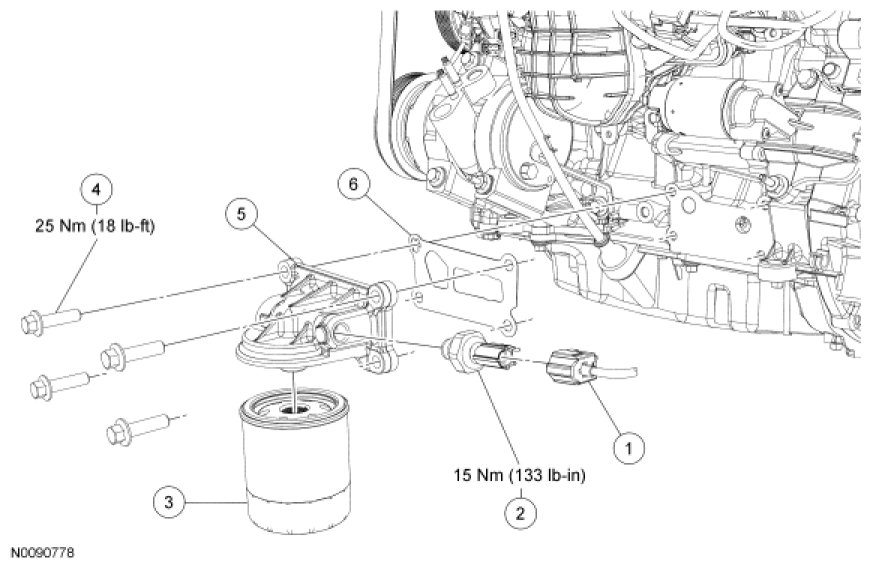

Engine Lubrication Components - Exploded View

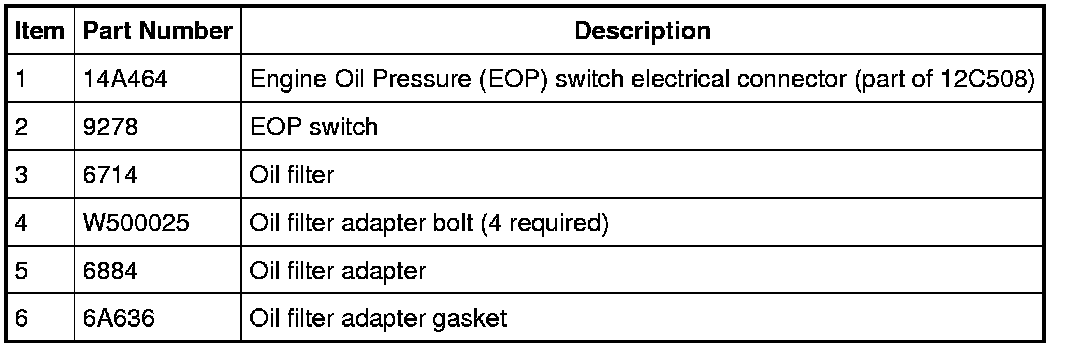

Oil Filter, Oil Filter Adapter and Engine Oil Pressure (EOP) Switch
