Utility Storage Compartment

Download the full database via torrent (~1.1 TB)



Instrument Panel - Exploded View

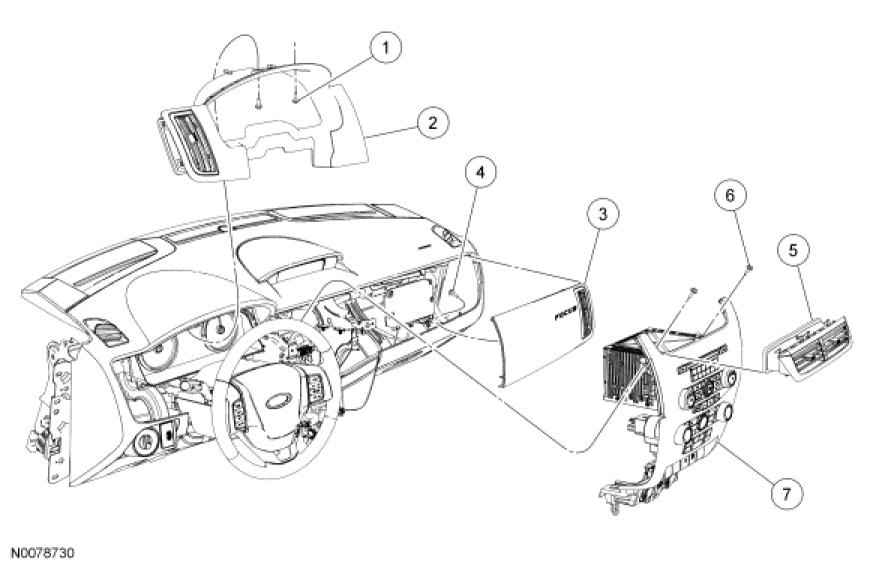

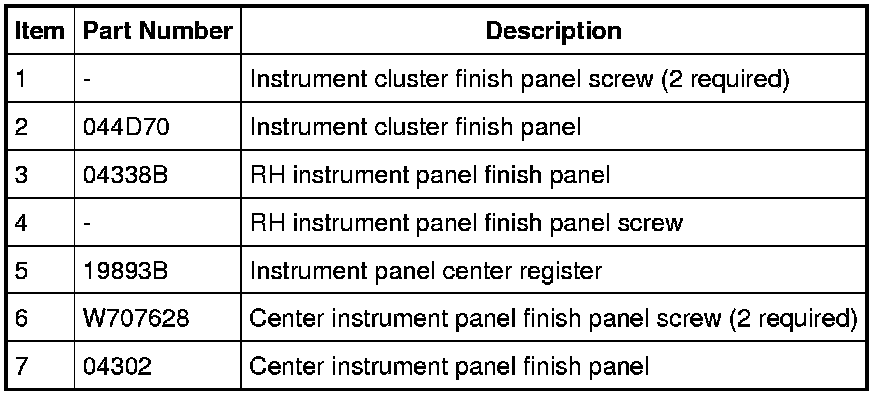

Instrument Panel Finish Panels

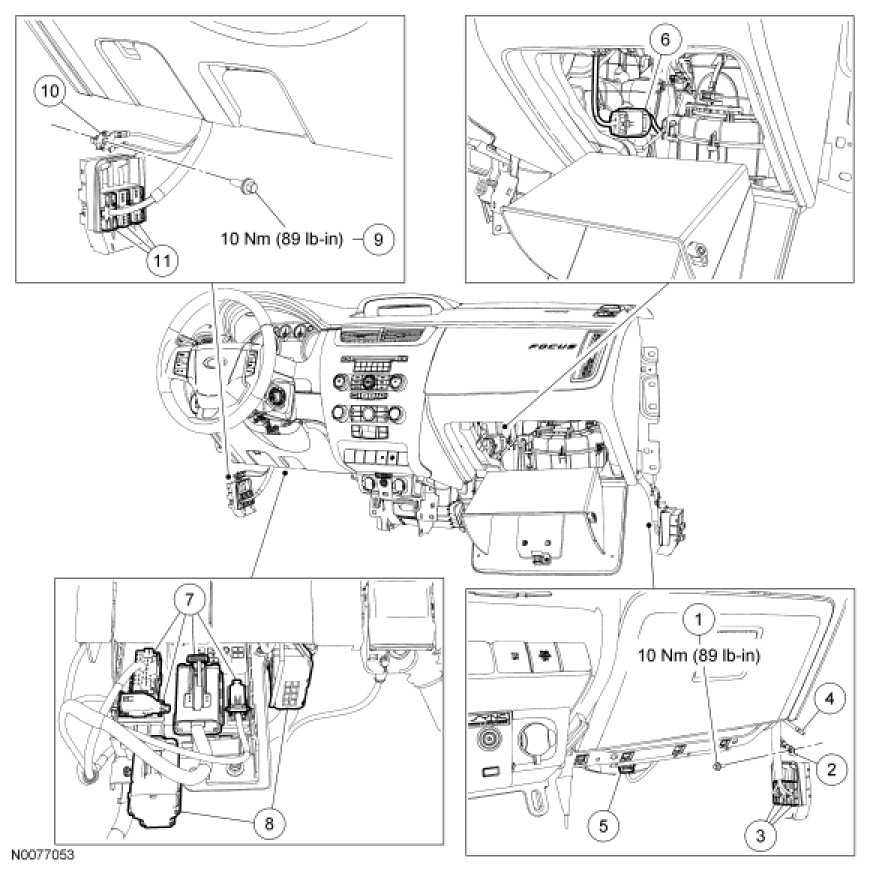

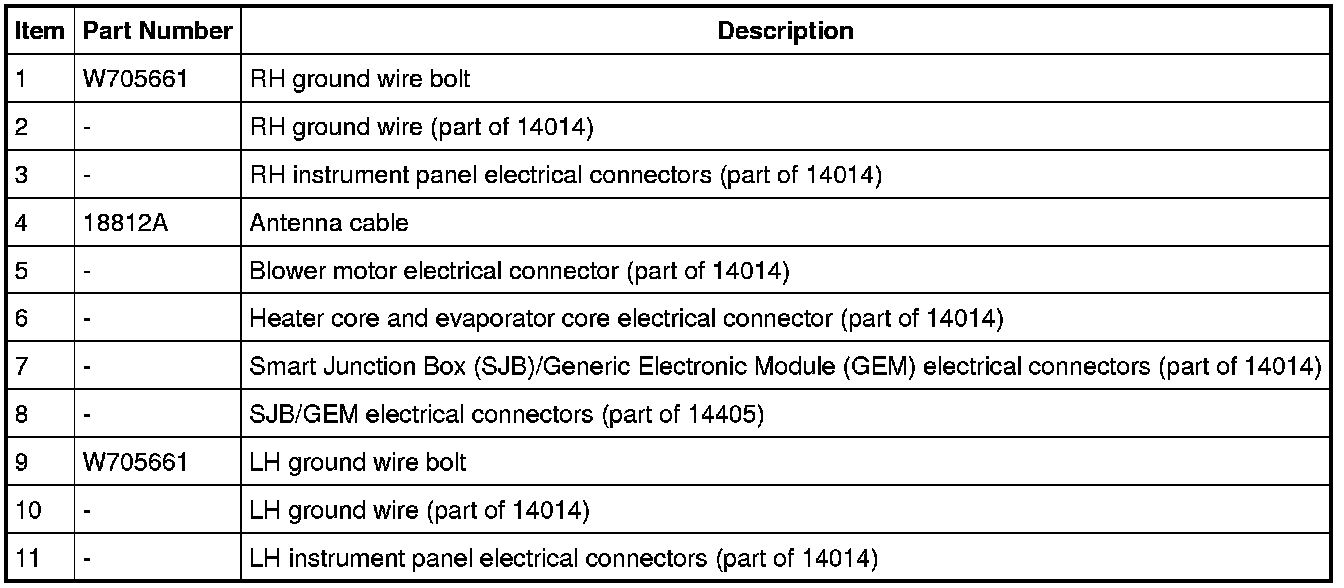

Instrument Panel Electrical Connectors

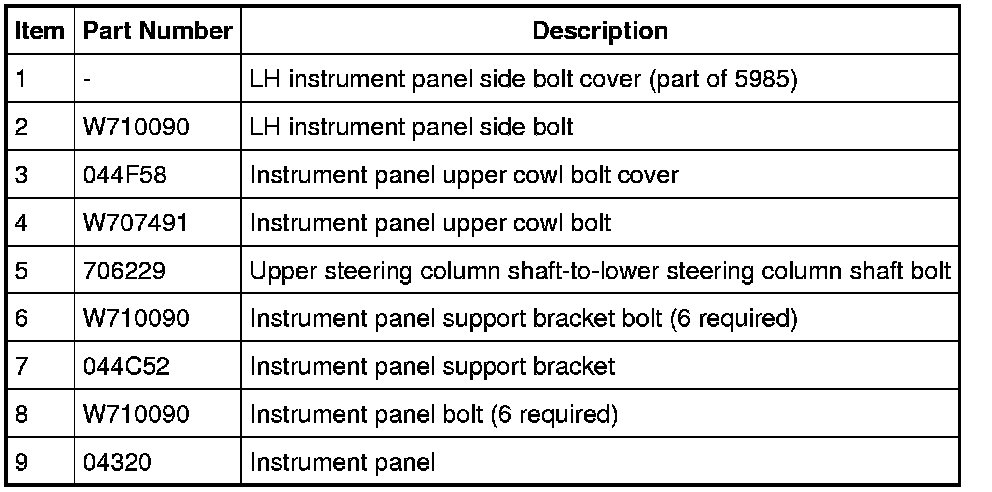

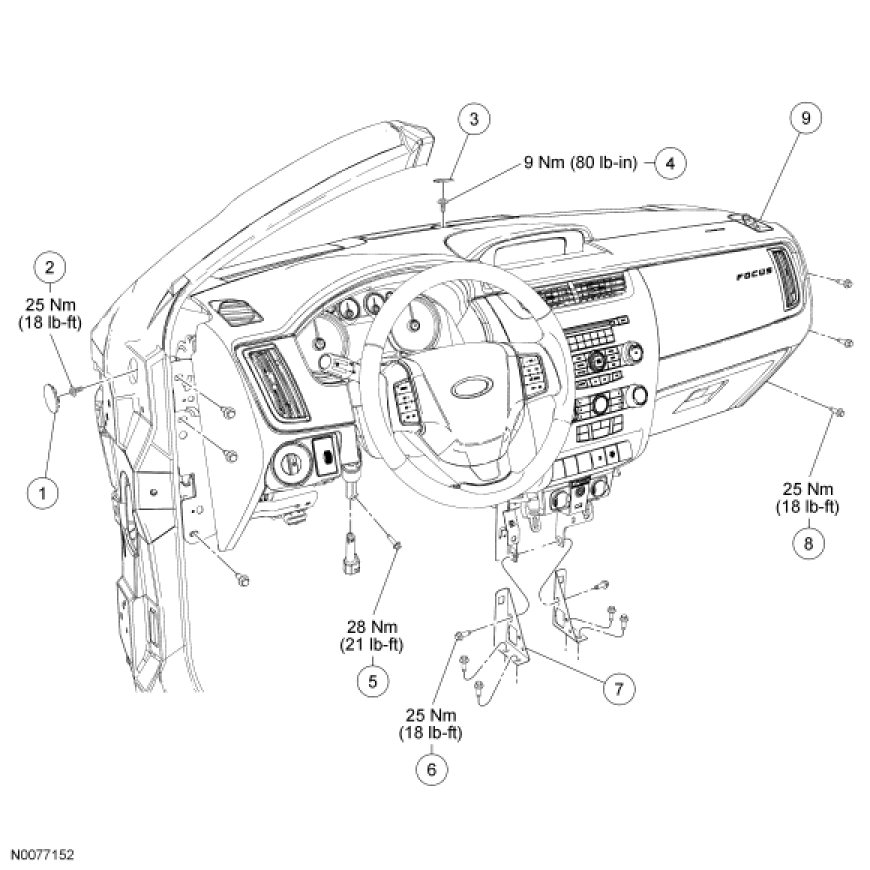

Instrument Panel Mounting Fasteners
