Utility Storage Compartment
Utility Storage Compartment
Download the full database via torrent (~1.1 TB)
Instrument Panel - Exploded View

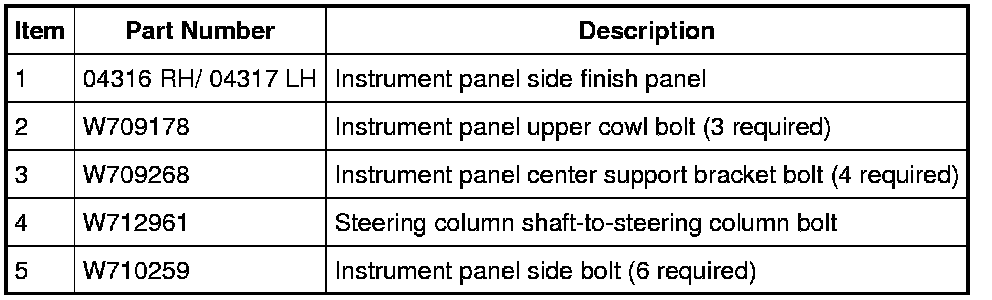

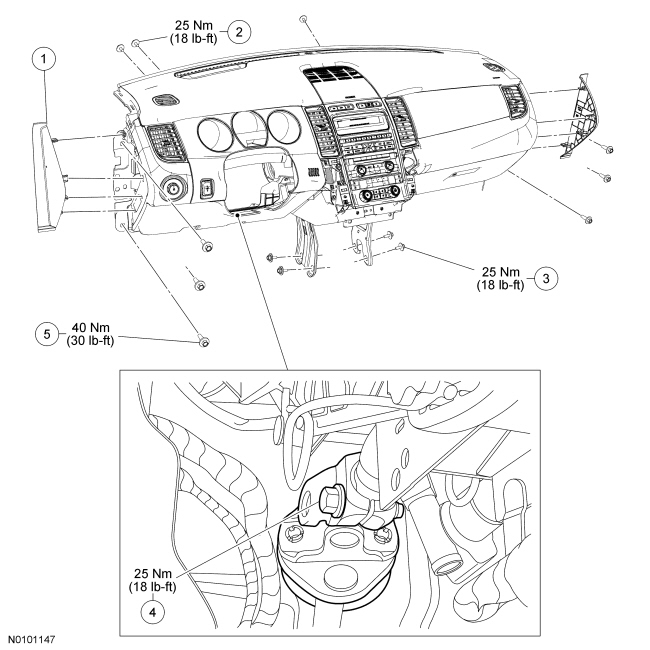

Instrument Panel
Trim Panel
and Fasteners

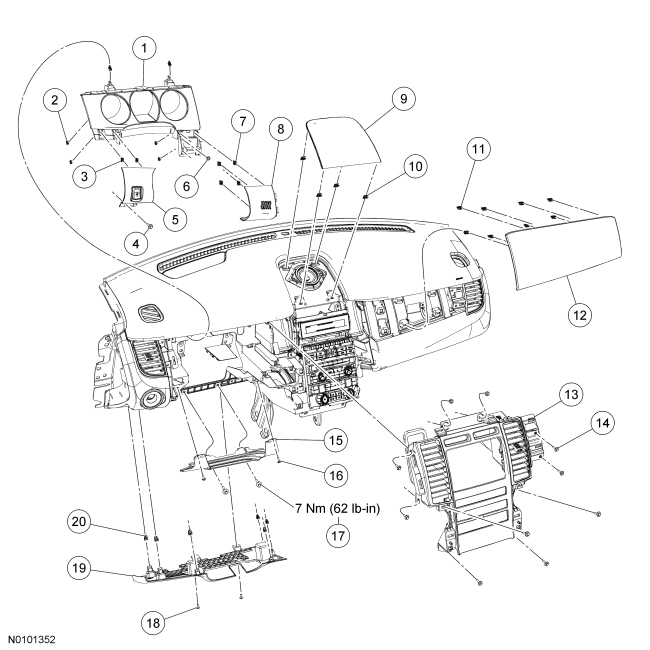

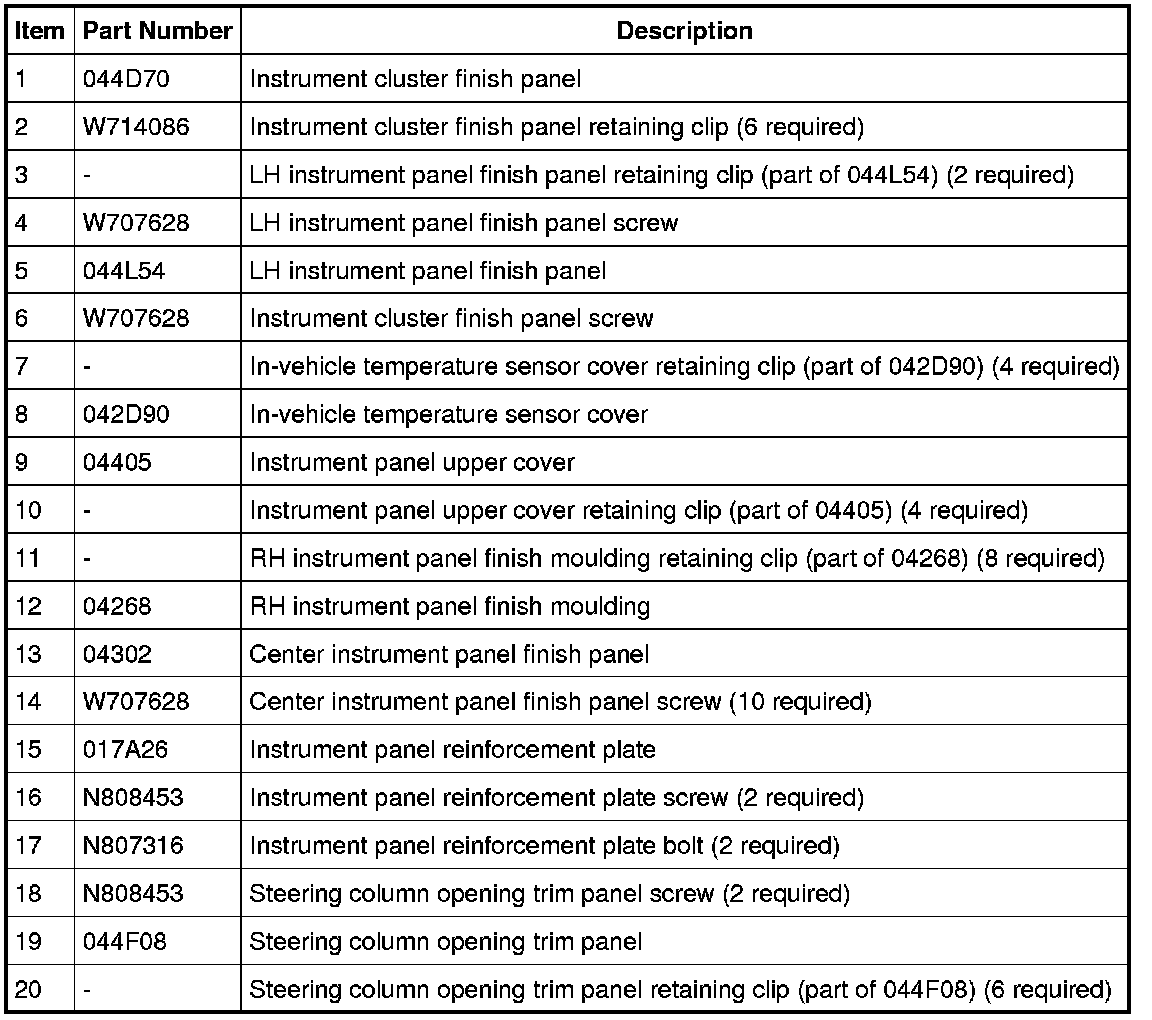

Instrument Panel Finish and
Trim Panels

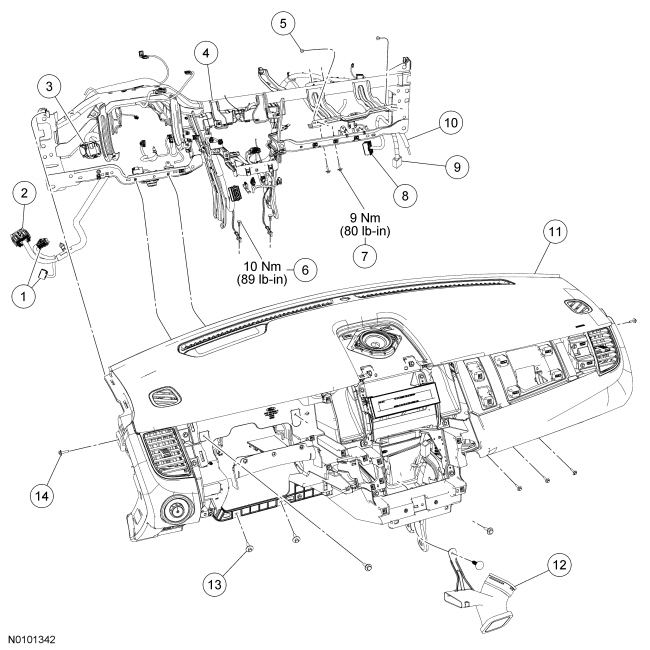

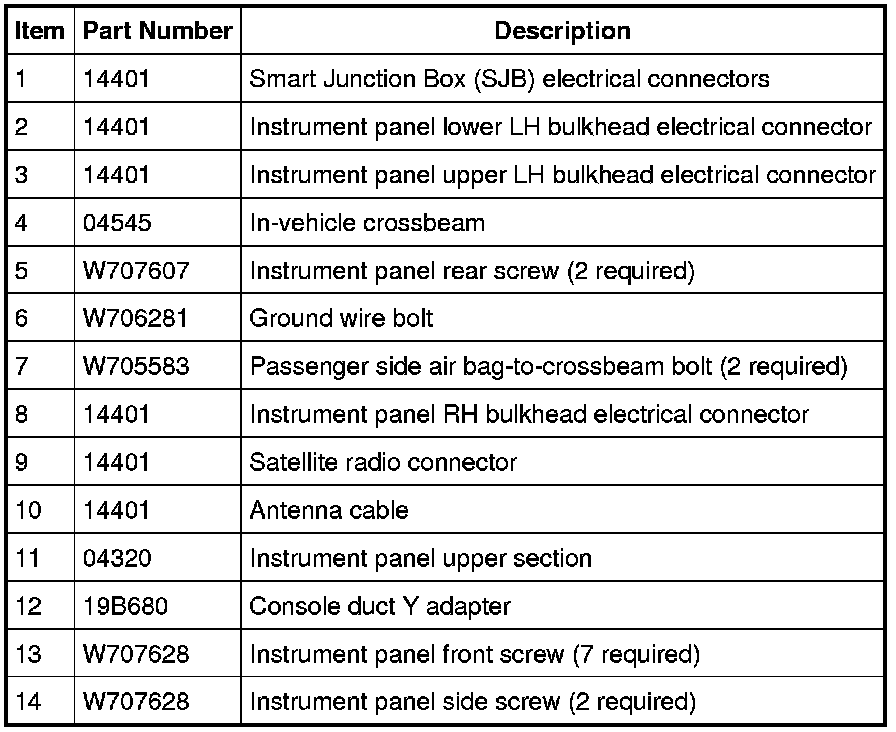

Instrument Panel Upper Section

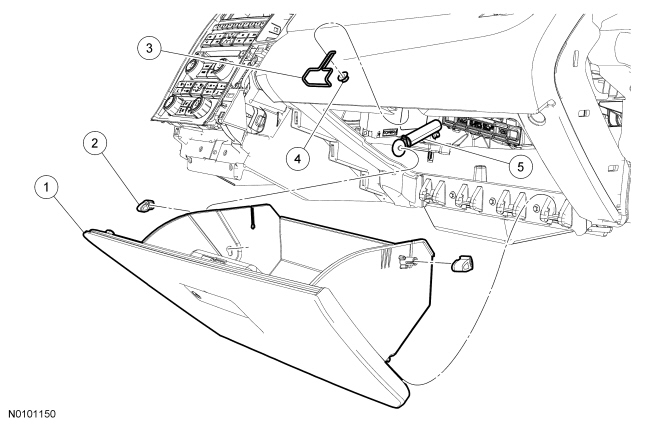

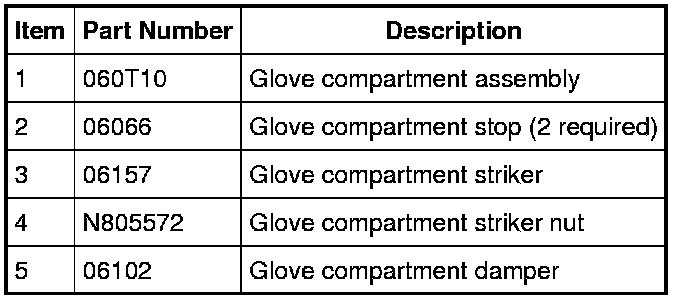

Glove Compartment
