Home >> Ford >> 2011 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> C2408A In-Dash Computer

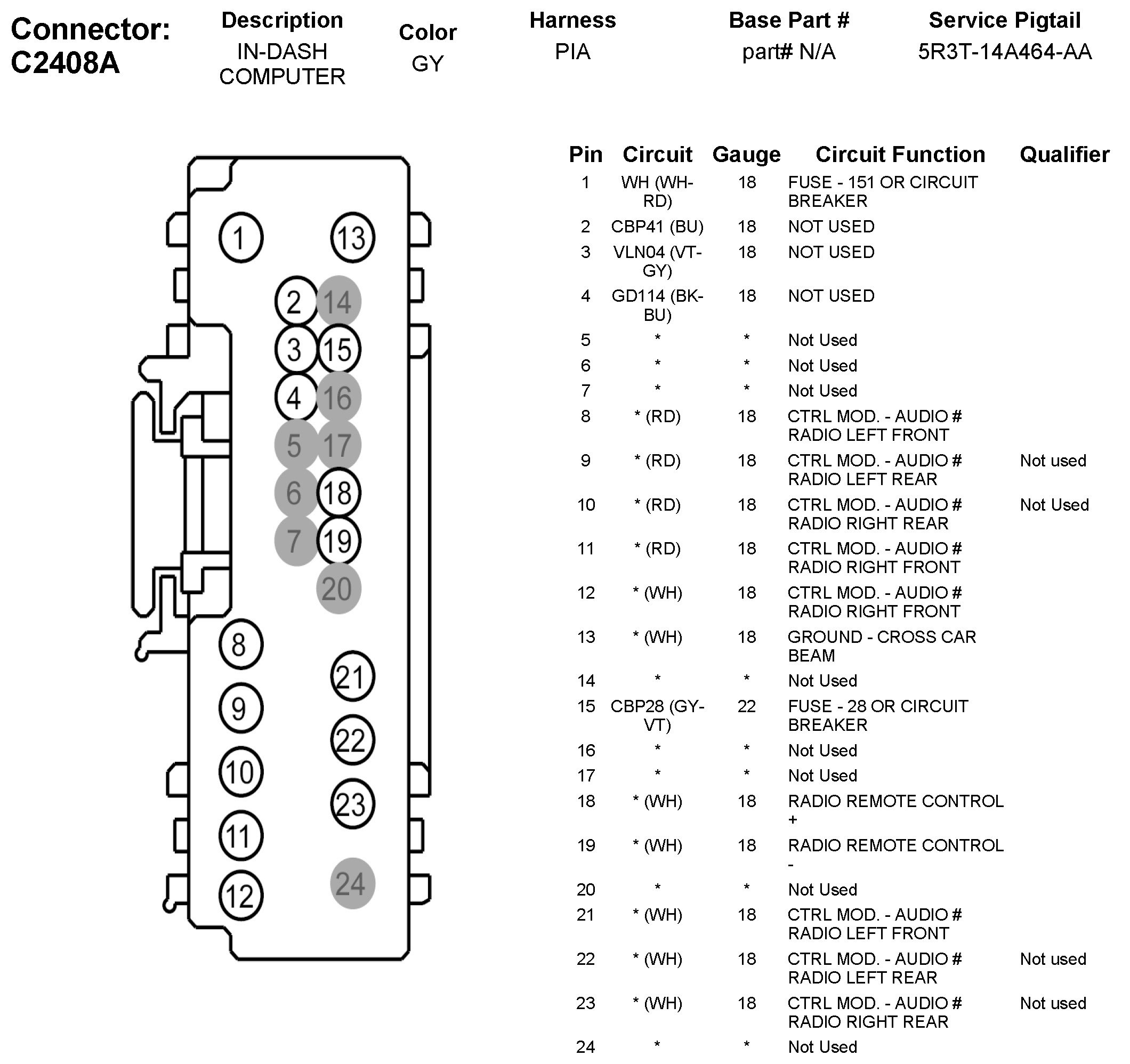

C2408A In-Dash Computer
