Disc Brake System
Disc Brake System
Download the full database via torrent (~1.1 TB)

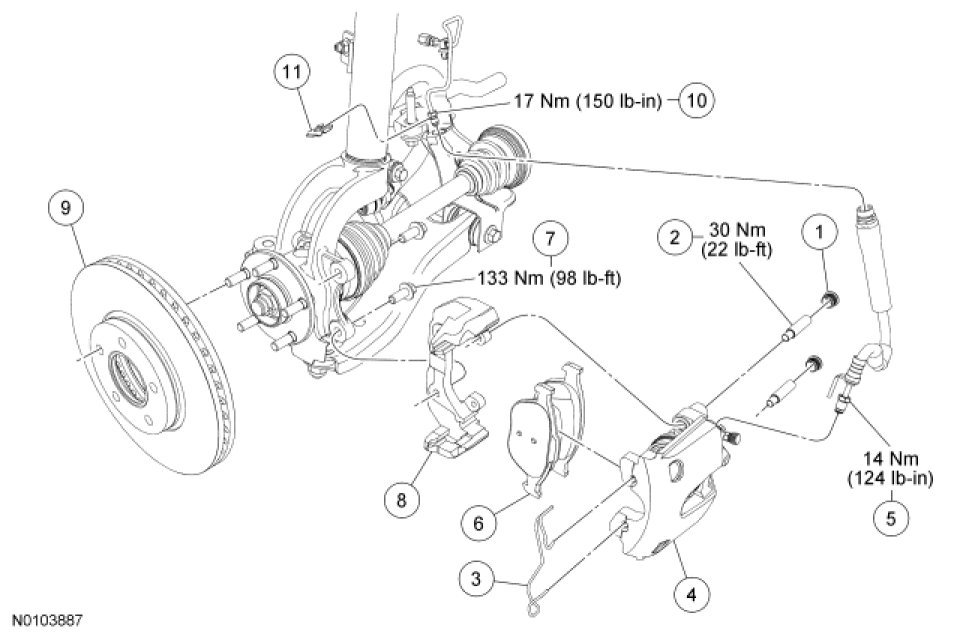

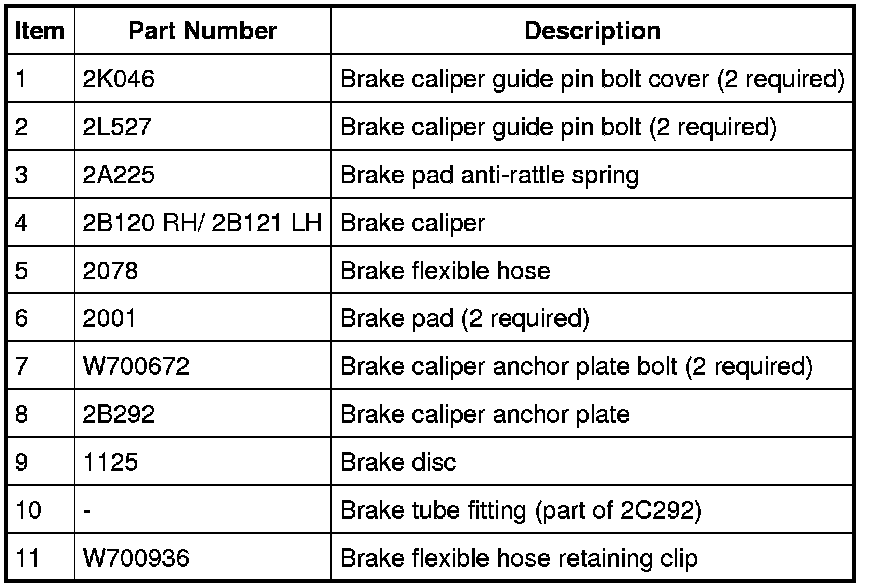

Disc Brake System
- Exploded View
