Access Cover, Engine

Download the full database via torrent (~1.1 TB)

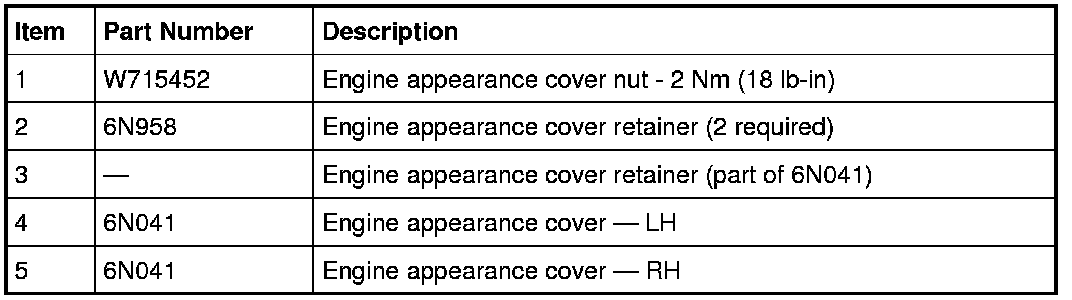

Engine Appearance Cover - Exploded View










1. Use only a mild soap and water solution to clean the engine appearance cover.
