Engine Specifications

Download the full database via torrent (~1.1 TB)

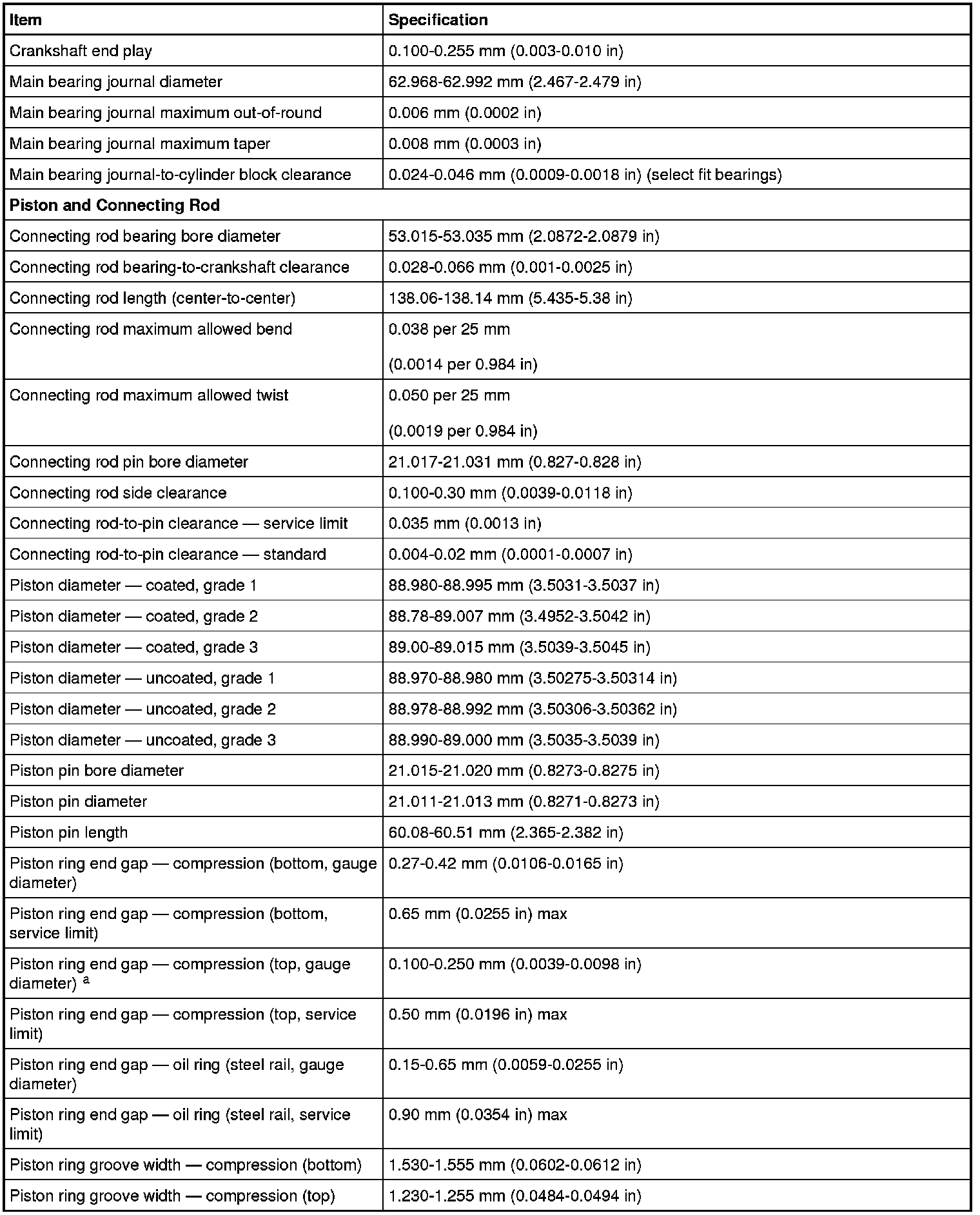

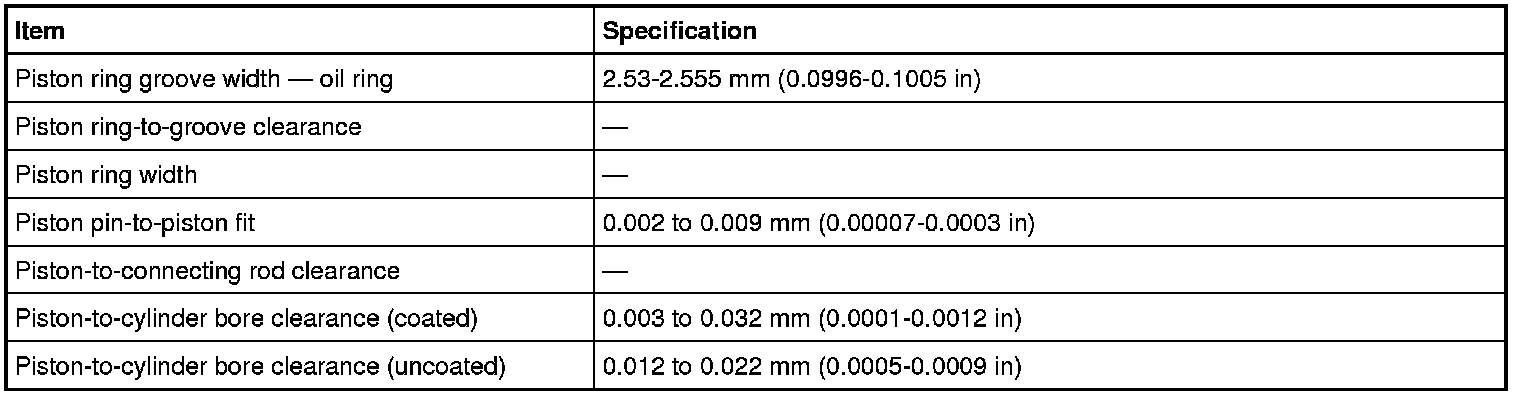

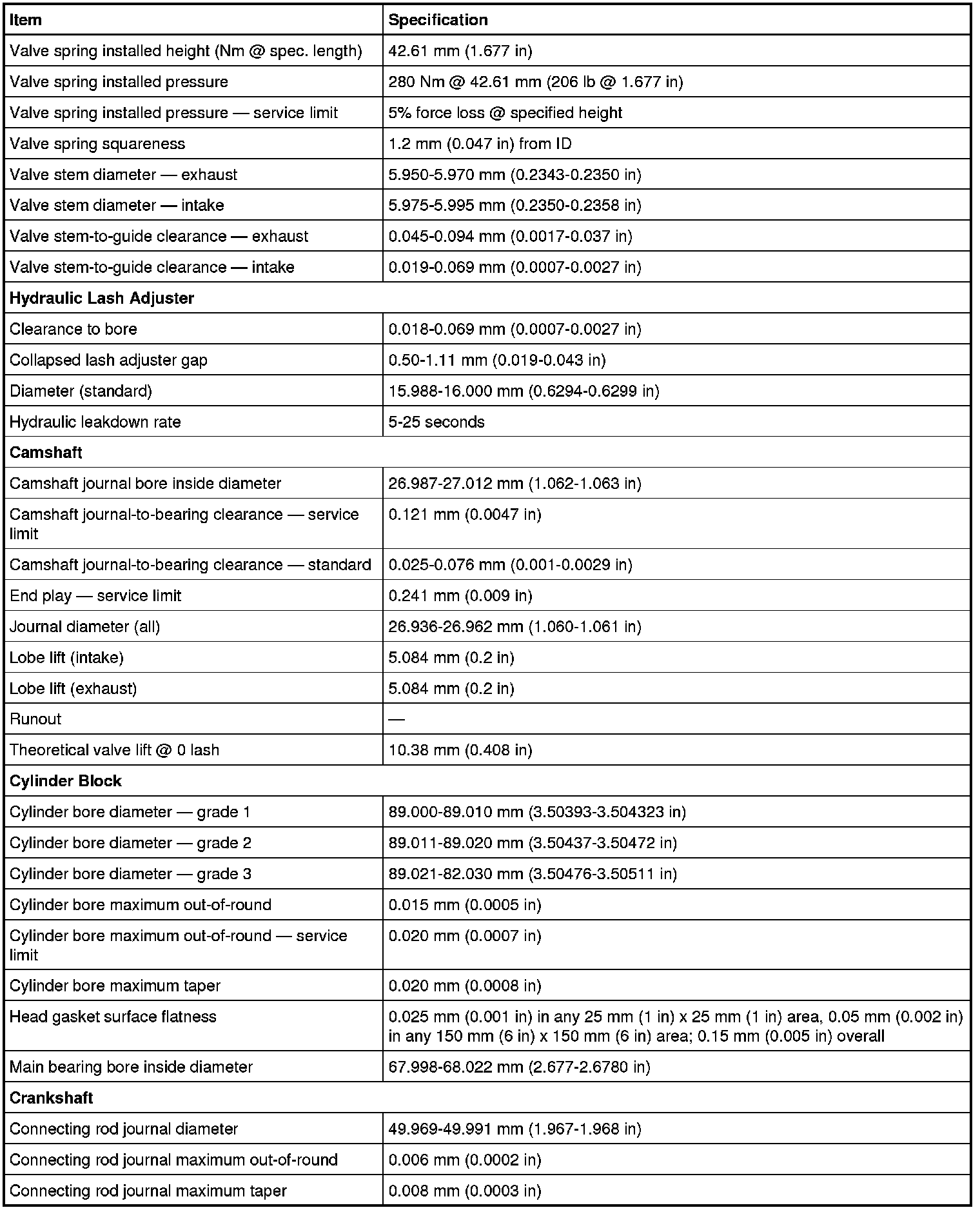

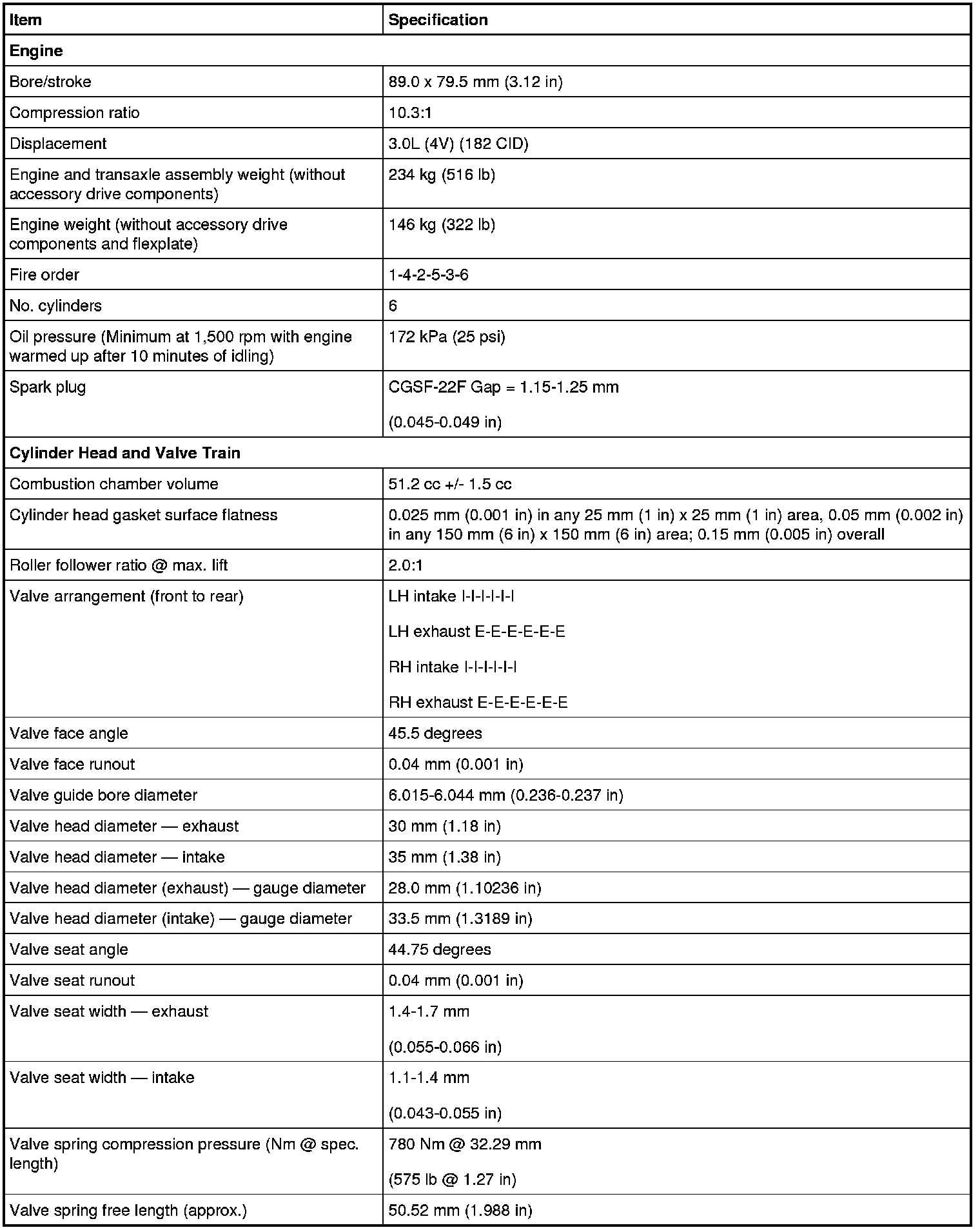

General Specifications

















a Specification 82.4 mm (3.2441 in) diameter gauge

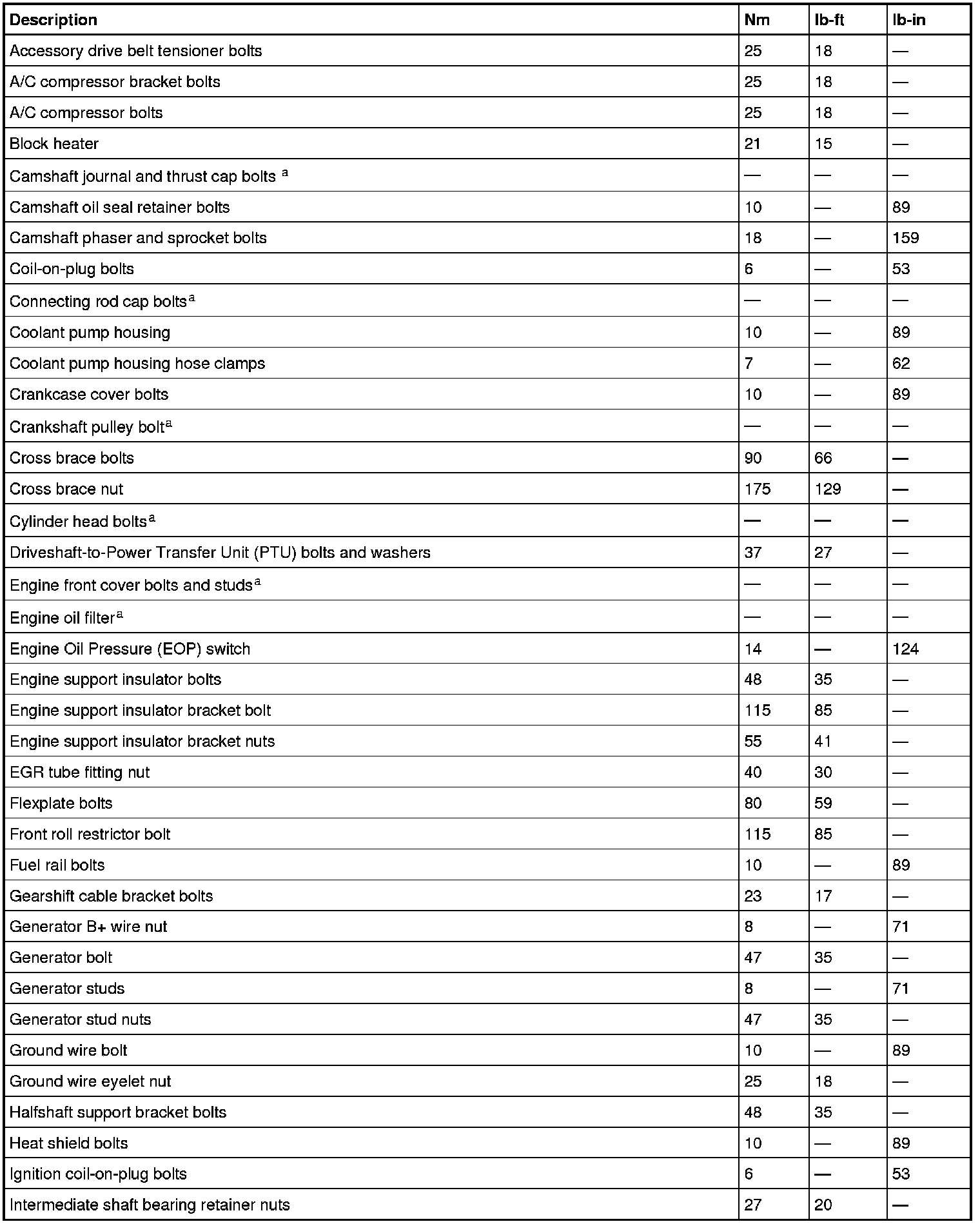

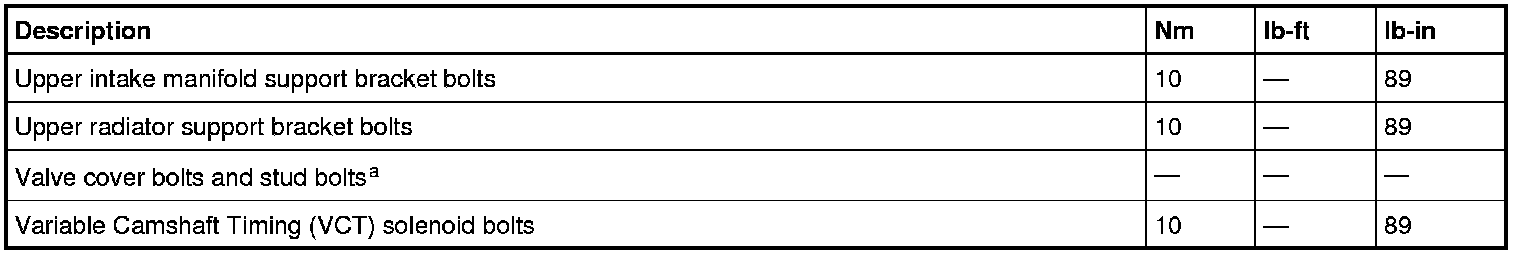

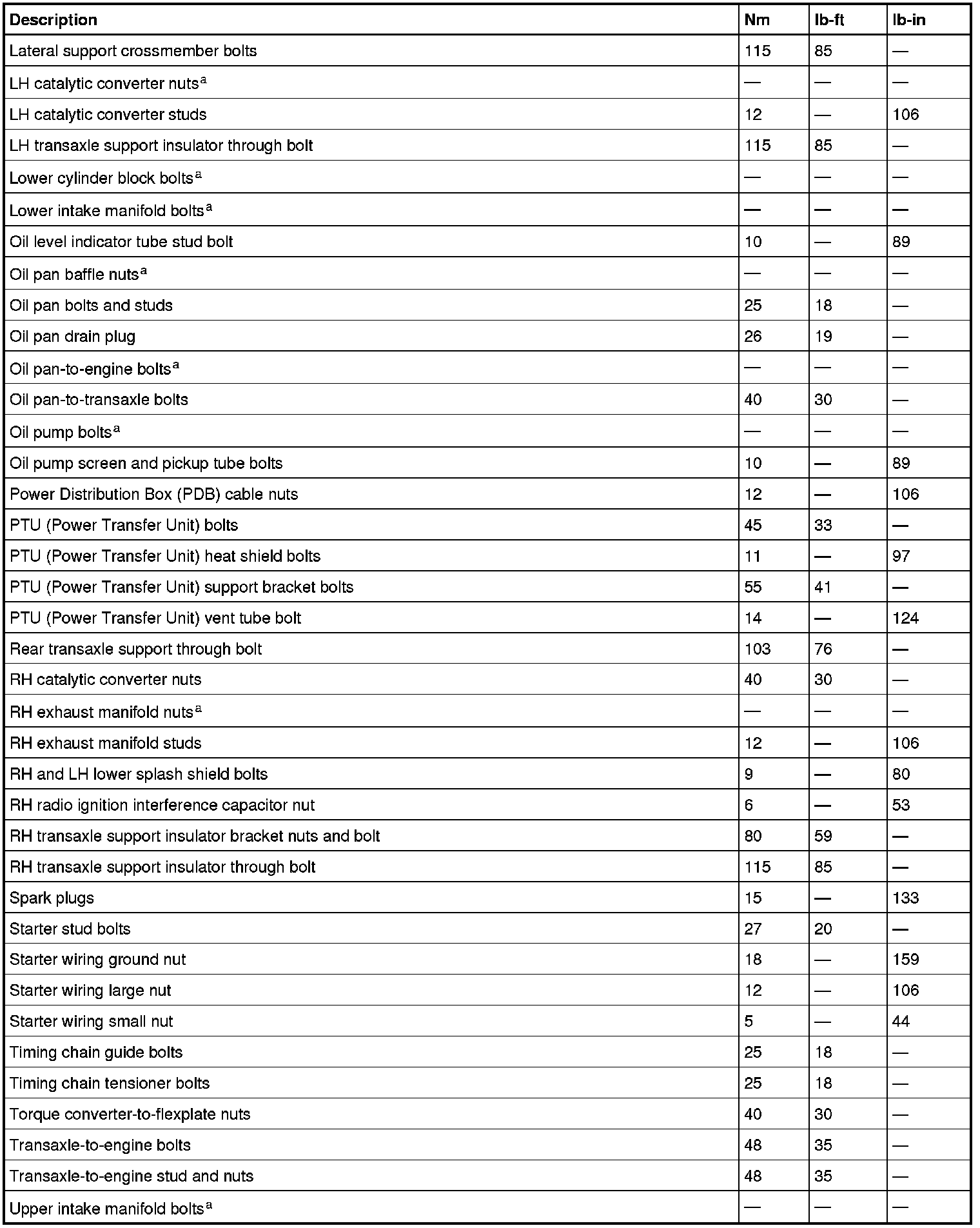

Torque Specifications













a Refer to the procedure in Engine.
