Ignition switch
>>
Schematic
Ignition switch: Schematic
Download the full database via torrent (~1.1 TB)

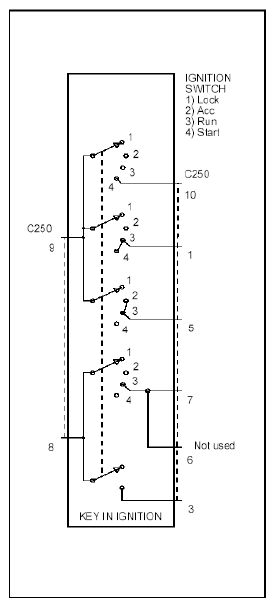

Fig 1: Ignition Switch Schematic Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
