Ford
>>
2012
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>
C3154B Audio Digital Signal Processing (DSP) Module

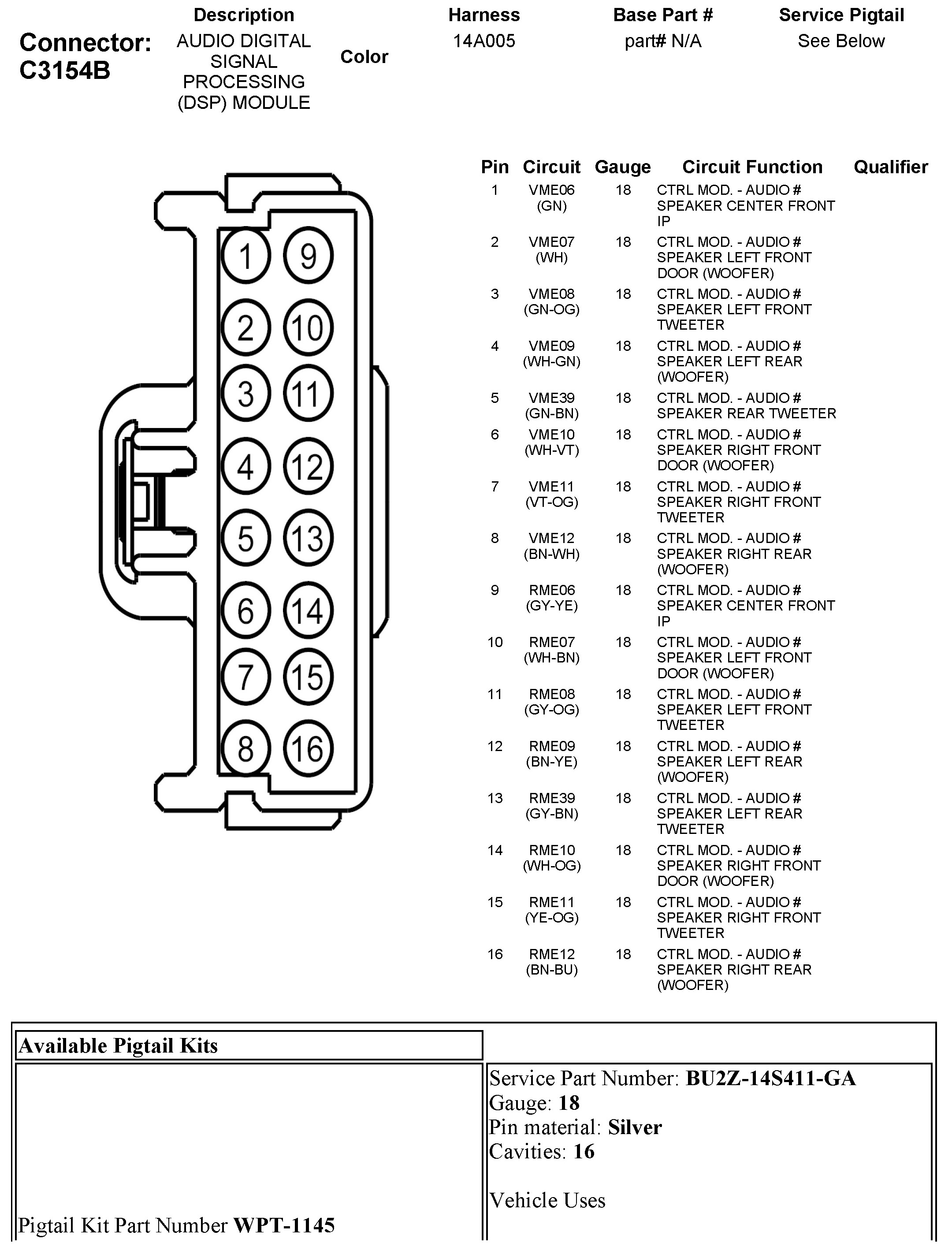

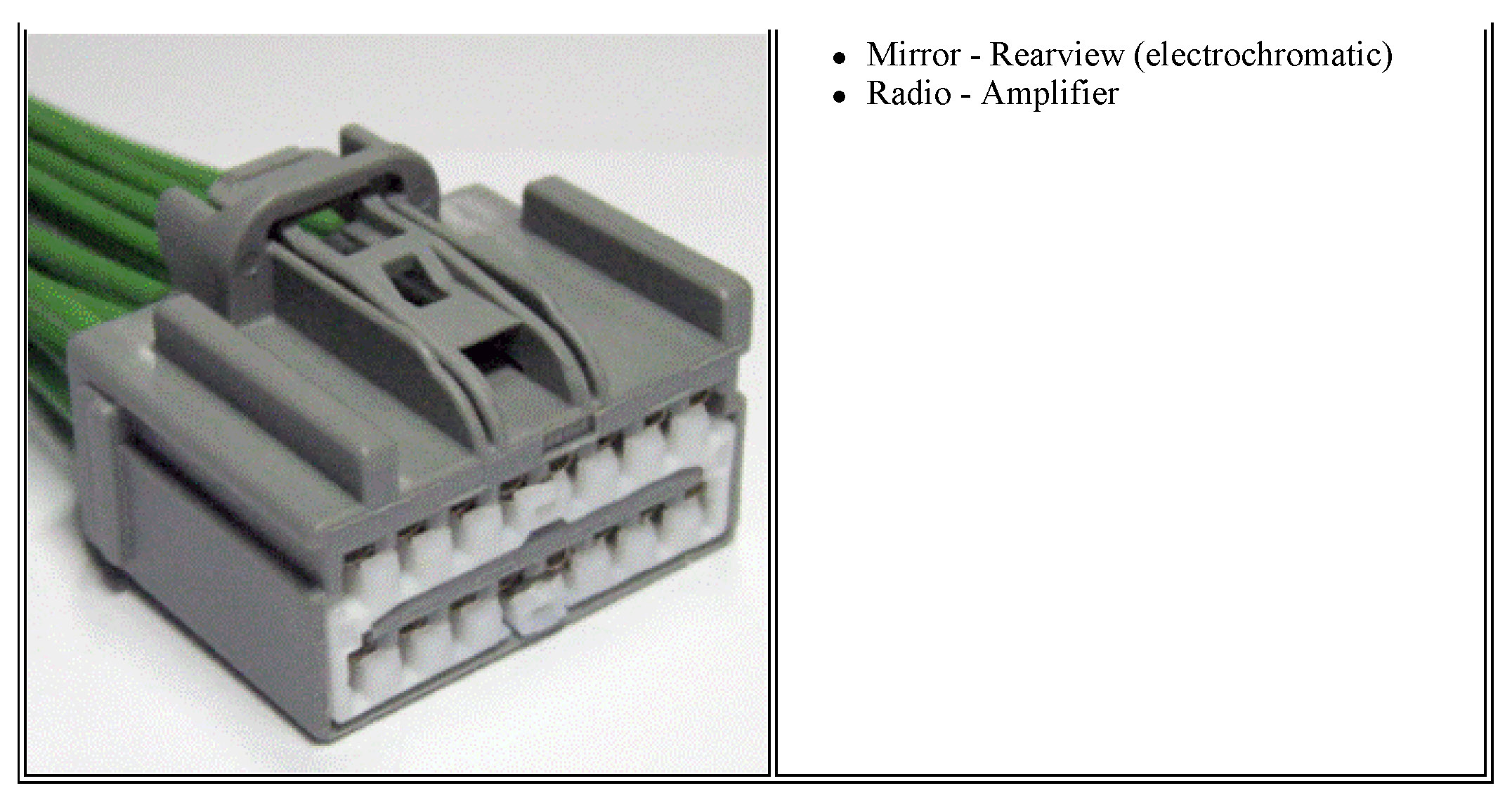

C3154B Audio Digital Signal Processing (DSP) Module
