Exhaust System

Download the full database via torrent (~1.1 TB)

Exhaust System - Exploded View

Exploded View

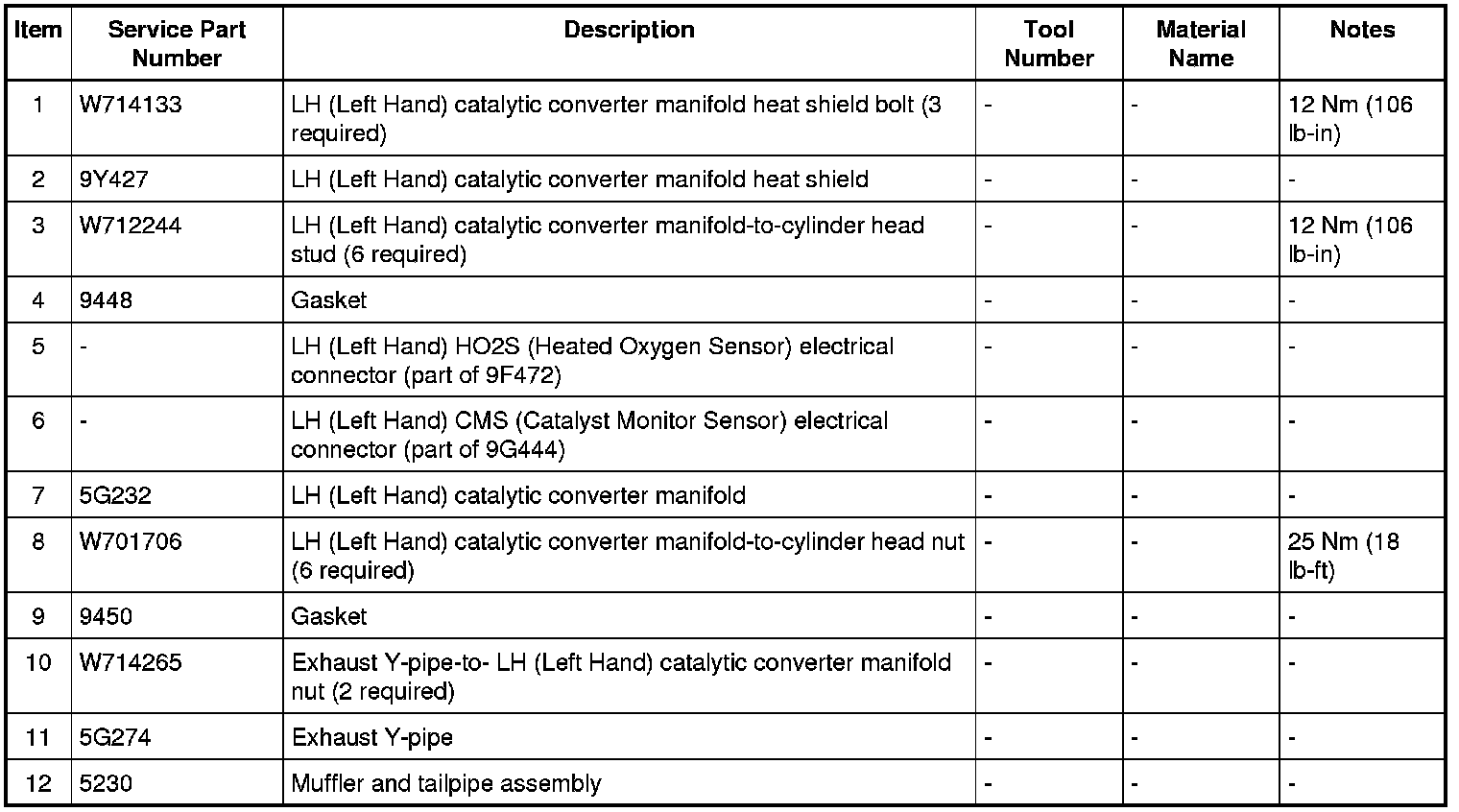

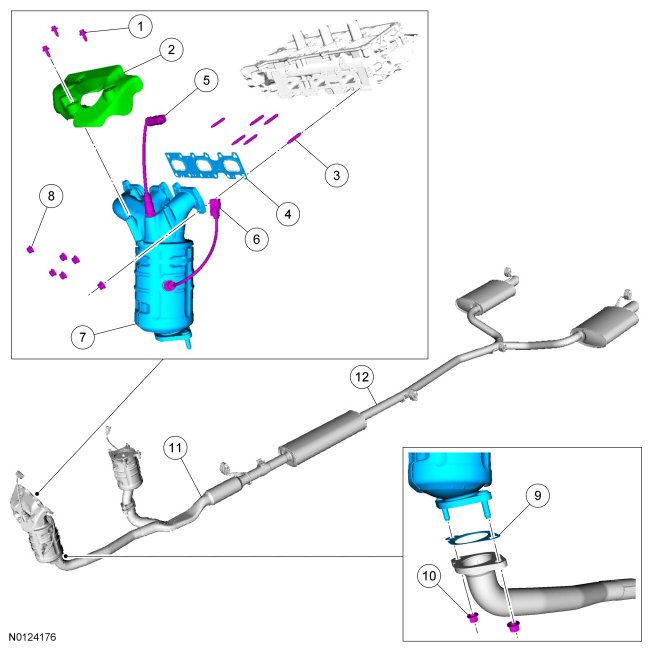

3.5L LH Catalytic Converter and Exhaust Pipes

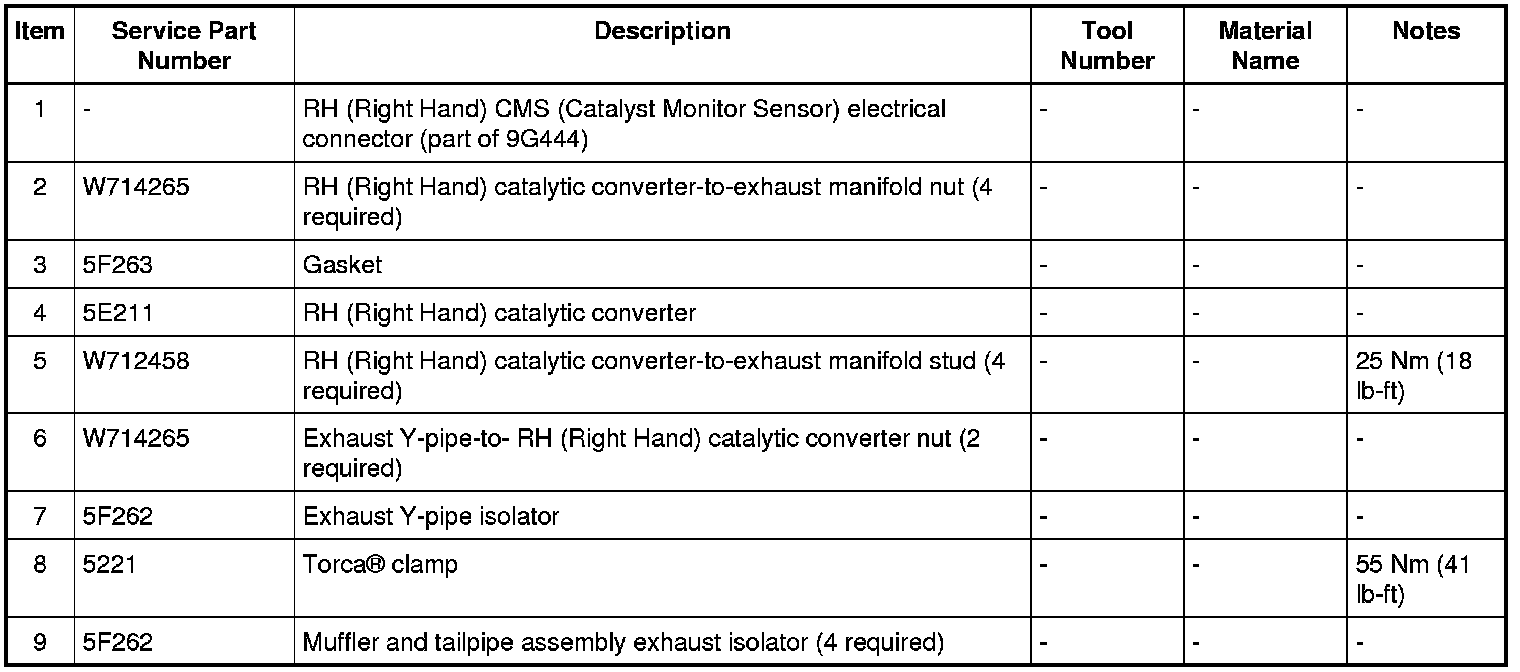

3.5L RH Catalytic Converter and Exhaust Pipes

Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
