Ford
>>
2012
>>
Flex SE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Component Testing
>>
Component Testing
>>
Master window control switch
>>
Schematic
Master window control switch: Schematic
Download the full database via torrent (~1.1 TB)

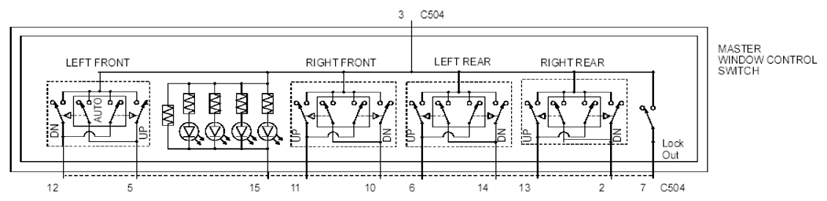

Fig 1: Master Window Control Switch Schematic Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
